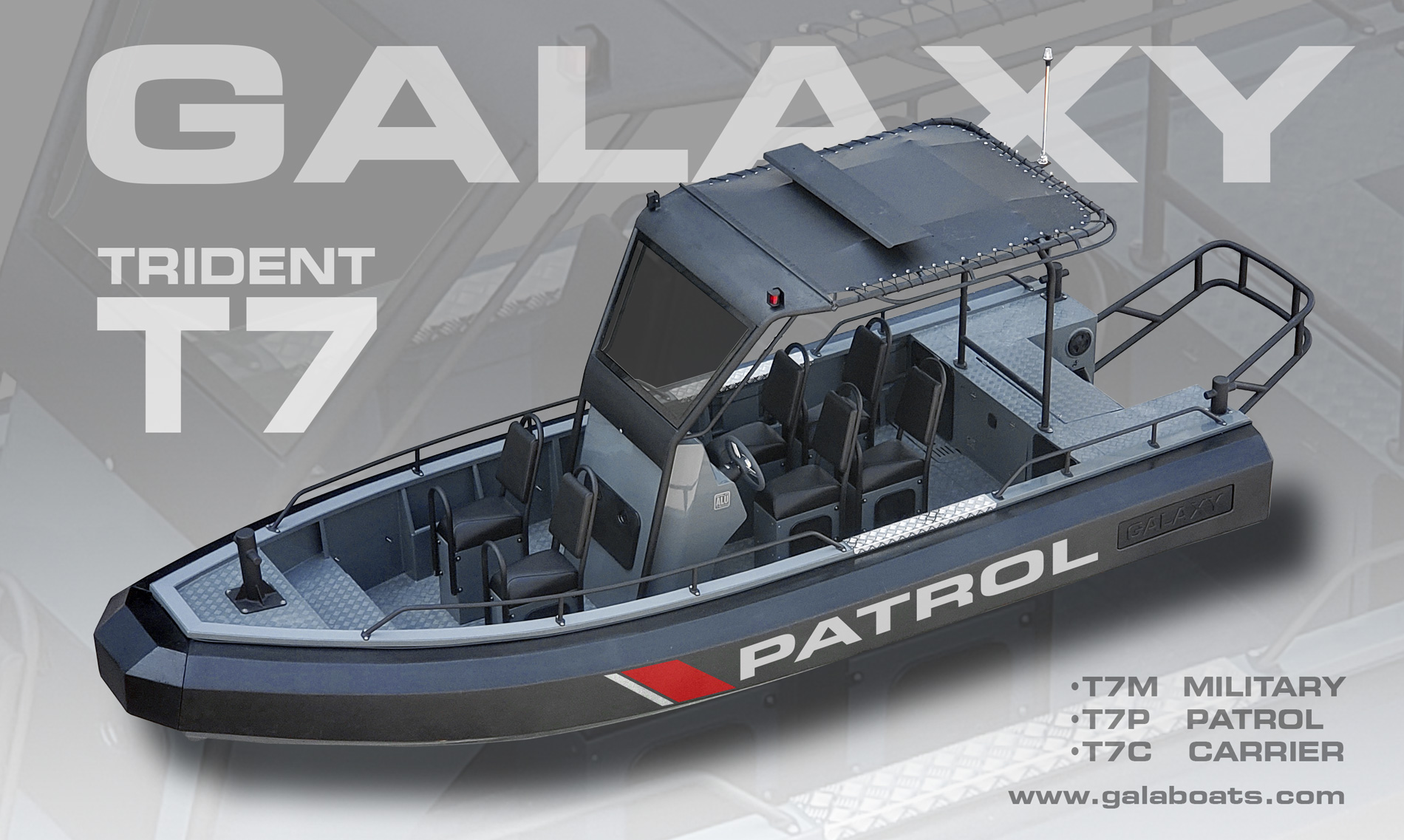

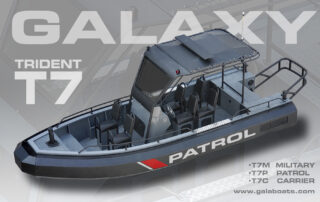

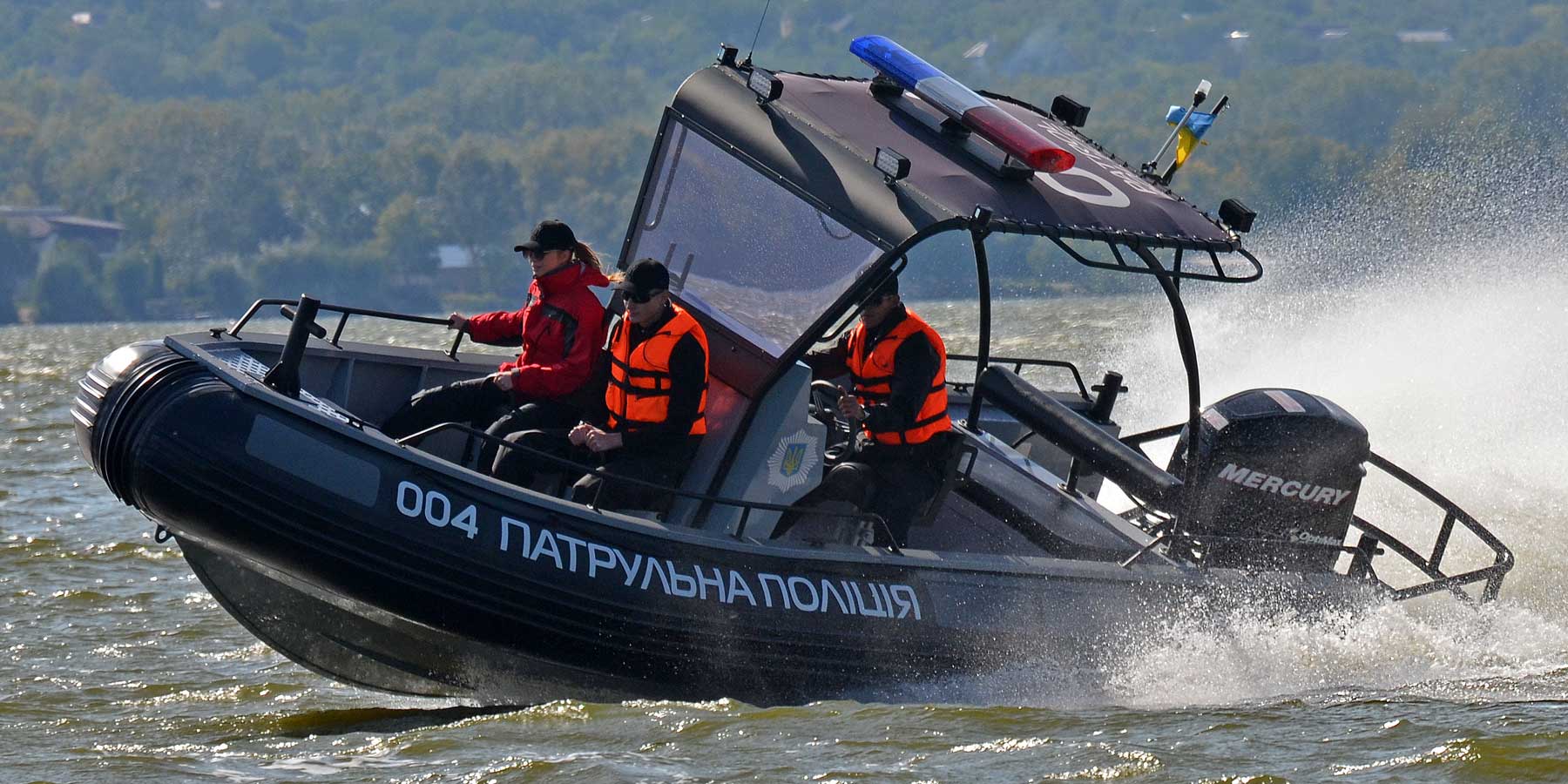

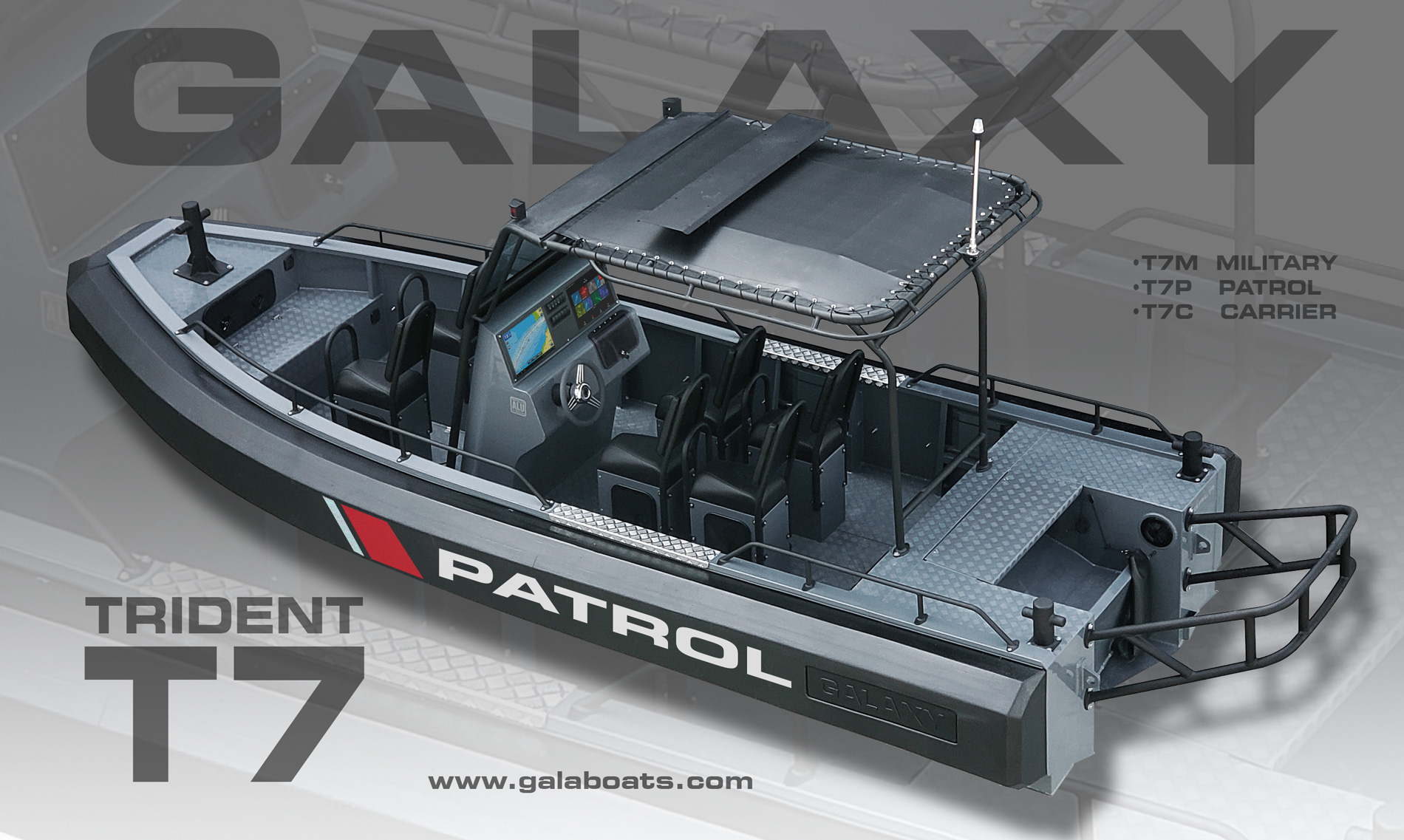

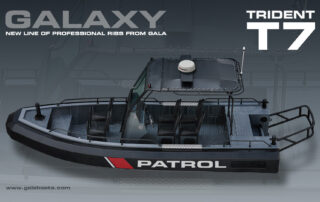

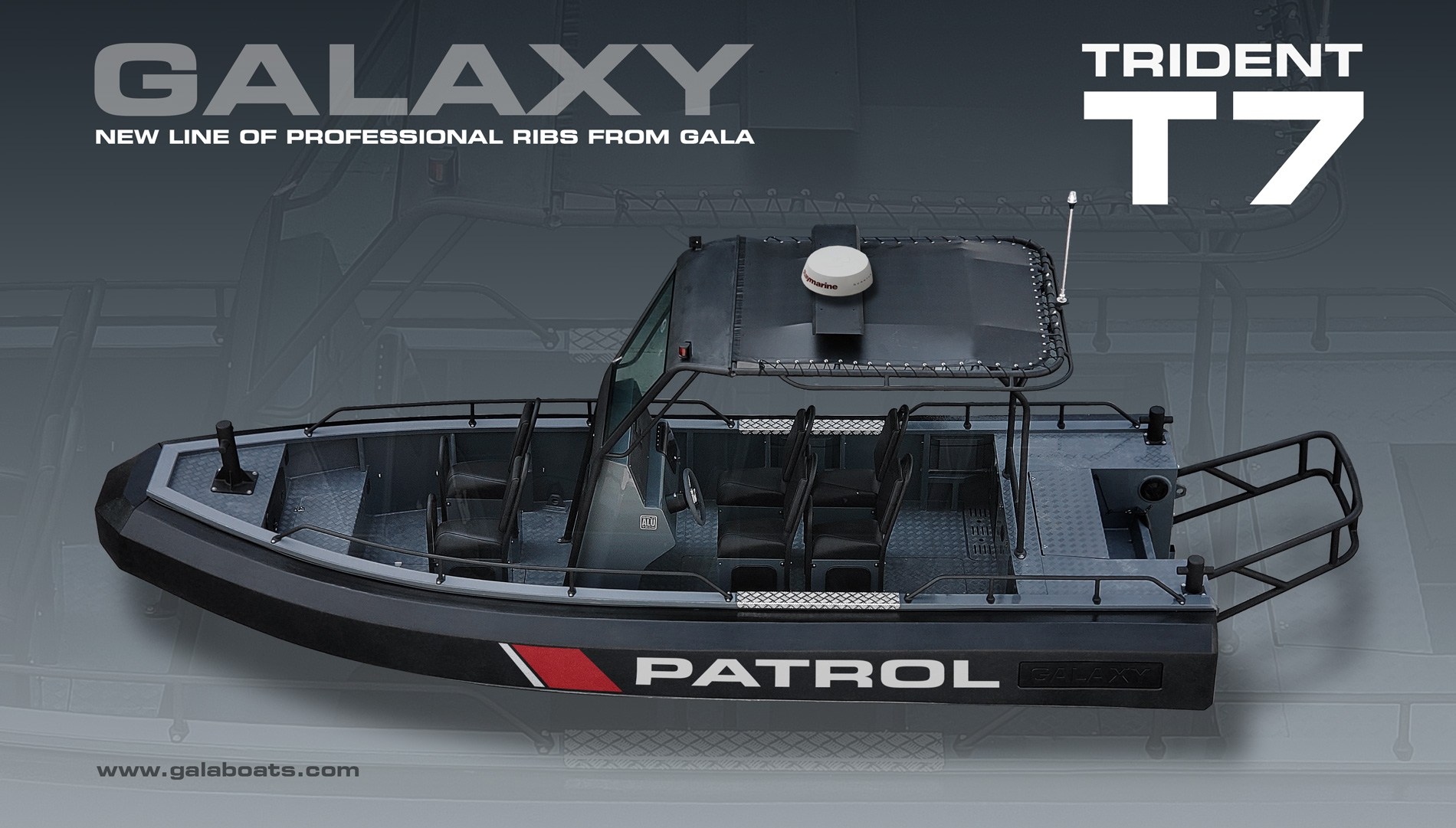

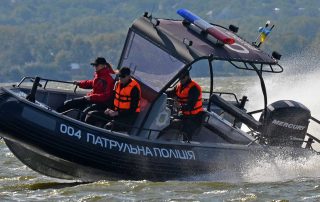

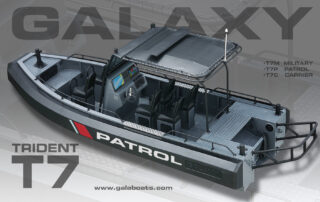

TRIDENT T7 Professional RIB
BEST FOR:

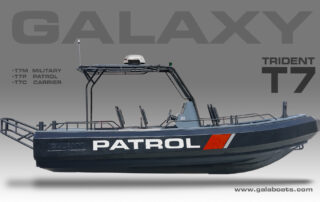

TRIDENT – T7
21’4″ long, 300 HP max
TRIDENT T7 (former T650) is one of the most iconic and innovative boats of GALAXY. This boat meets the toughest requirements for operation boats, law enforcement and patrol, heavy duty military and commercial use. It features a super-strong aluminum welded hull structure with D shaped tube (D-tube) with built-in flotation inside the hull. The D-TUBE concept is the singular and best solution for professional & commercial grade boats allowing for significantly larger cockpit space and durability in comparison with the traditional O-shape inflatable tube design.
Every boat is available with any of the following collar choices:
– Solid close-cell foam D-shaped collar with HYPALON / TPU (Polyurethane) protection skin and inflatable compensation/tension bladder,
– Fully inflatable D-shaped HYPALON / TPU (Polyurethane) collar with 5 chambers.
We have a huge selection of different deck equipment: steering consoles, seating, arches, T-tops, roofs, engine guards, bollards, ammunition lockers and much more to create and build the boat, which will meet all your specification requirements. You will have the exact boat that your mission calls for!
5 reasons to choose GALAXY
True Pro Grade Design
GALAXY is a TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.
FAST PRODUCTION & DELIVERY
We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!
100% CUSTOMIZED
We have a number of base boats with huge amount of optional equipment to choose from.
VARIETY OF DECK EQUIPMENT
GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!
3-D VISUALIZATION
We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!
VIDEO
GALLERY
Features
STANDARD FEATURES:
- Deep-V, powder-coated aluminum hull with self-bailing cockpit
- Two large quick drains – bailers
- Single engine or double engine motor well
- Bow locker and anchor locker
- Embossed PRO decking
- 4 mooring cleats, 4 lifting eyes, 2 rear and 1 bow tow eyes
- Folding step boards and storage compartments
- Service package: paddles, repair kit, manual
BOAT COLLAR OPTIONS:
- HYPALON coated solid foam float with inflatable tension bladder
- TPU (Polyurethane) coated solid foam float with inflatable tension bladder
- HYPALON fully inflatable tube with 5 chambers
- TPU (Polyurethane) fully inflatable tube with 5 chambers
STEERING CONSOLES:
- Steering console C-08 with windshield and railing (Default)
- Steering console C-08.1 without windshield and railing, aluminum
- Steering console C-21, aluminum
SEATING:
- Driver’s bolster seat S-09 (Default)
- Driver’s bolster seat S-20
- Driver’s seat S-25
- Driver’s seat S-03PM
- Jockey seat S10 with storage and seat back
- Jockey seat S10 without front handrail, with storage and seat back
- Double-sided seat S15
- Folding cockpit seats, four
IMPORTANT! FOR COMPLETE AND UP-TO-DATE DETAILED OPTIONS AND SPECIFICATION LIST PLEASE CONTACT US DIRECTLY!
OPTIONAL EQUIPMENT:
- Steering wheel
- Hydraulic steering system
- Electric equipment package
- Built-in fuel system, 200L fuel tank and sender
- Fuel gauge
- Extra 200L tank for 400L total fuel reserve
- Protection roof with windshield, rear lockers support
- Protection roof with windshield, deck support
- Short protection roof with windshield, S-15 support
- Engine guard frame for single or twin engines
- Steering console tower with mounting plate for C-08
- Heavy-duty bow bollard and two rear bollards
- Safety top-mounted railings, four
- Side board safety railings
- T-form rear towing mast
- Towing arch with 2 cleats & tow eye
- Diving bottle storage rack for 4 bottles
- Diving bottle storage rack for 6 bottles
- Diving bottle storage rack for 12 bottles with seating
- Diving ladder with deck mounts
- Under-deck large storage with access door
- Motor well deck extension panel
- Bow locker cushion
- Bow seat back cushion
- Overall cover, console/seat covers
- Custom lettering on T-top
- Custom letter on both sides of inflatable tube
Specifications
|
Models |
T7 |
|---|---|
| Length overall | 650 cm / 21′ 4” |
| Length inside | 585 cm / 19′ 2” |
| Width overall | 250 cm / 8′ 2” |
| Width inside | 190 cm / 6′ 3” |
| Tube Diameter | 60 cm / 24” |
| Bare boat weight | 880 kg / 1936 lbs |
| Loading capacity | 1200 kg / 2640 lbs |
| Passenger capacity | 10 |
| Collar/Tube design | Foam D-tube / 5-chamber inflatable tube |
| Engine recommended | 250HP |
| Engine MAX | 300 HP |
| Engine weight MAX | 400 kg / 880 lbs |
| Engine shaft length | 25″ |
| Aluminum hull thickness | 5 mm / 0.2 inches |
| Boat design category | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
BLACK
Black tube
with gray decor.
Dark gray hull.
ORANGE
Orange TPU / HYPALON tube
with black decor.
Dark gray hull.
RED
Red HYPALON tube
with black decor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
