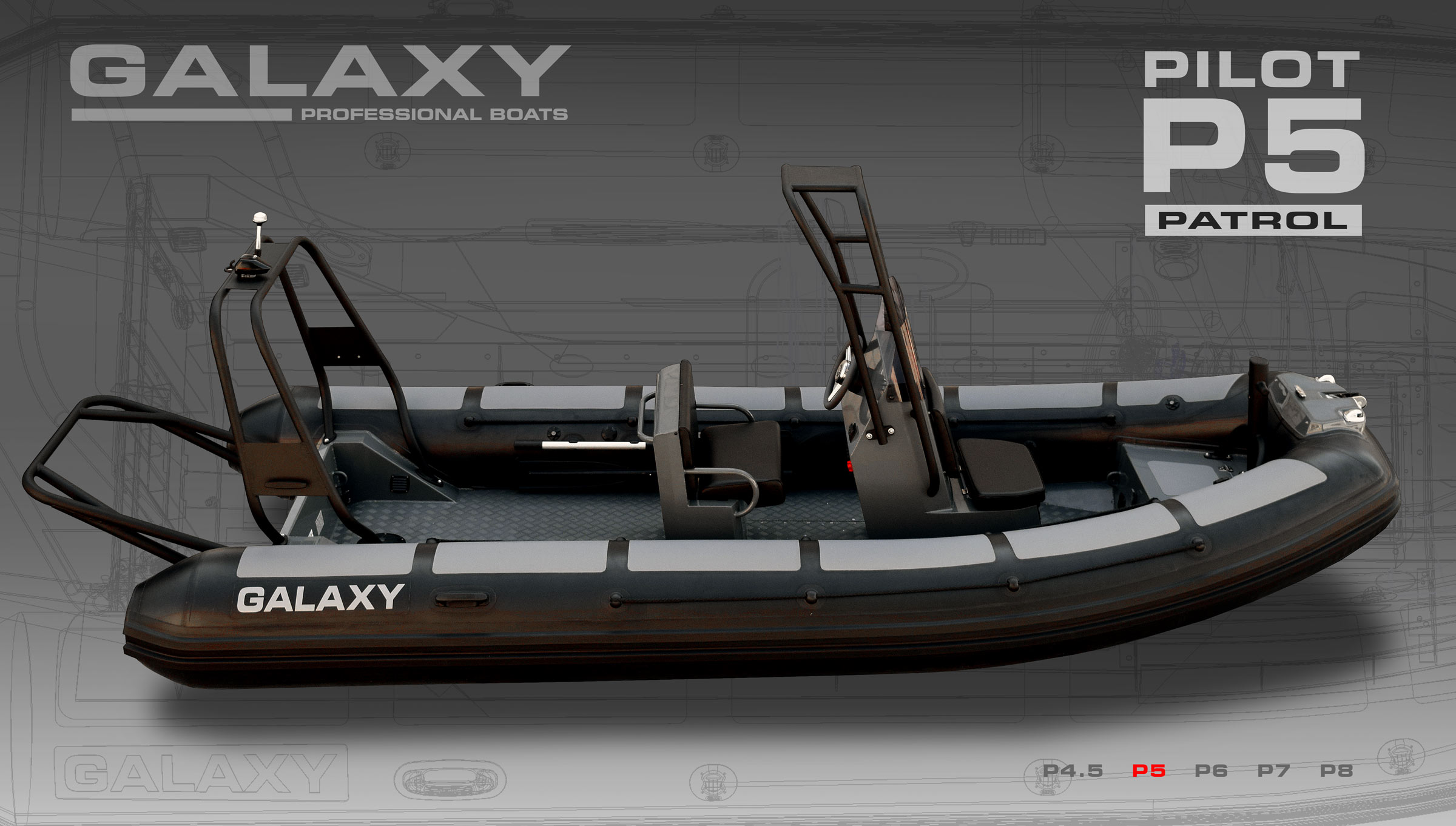

GALAXY Pilot – P5
BEST FOR:
GALAXY P5 PATROL
16’5″ long, 100 HP max

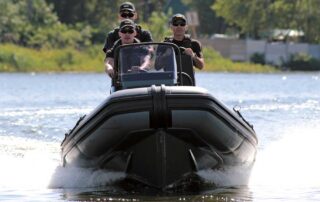

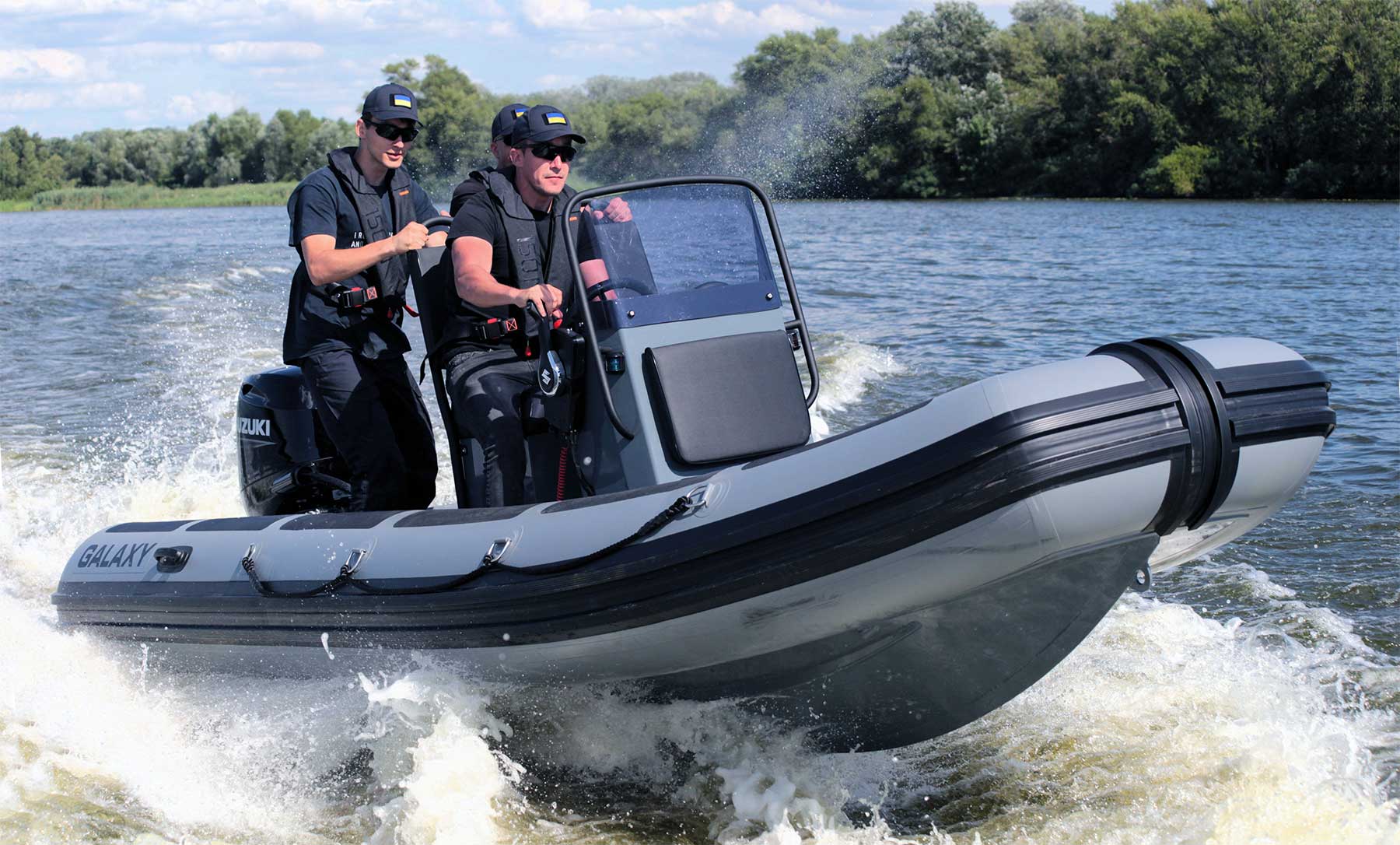

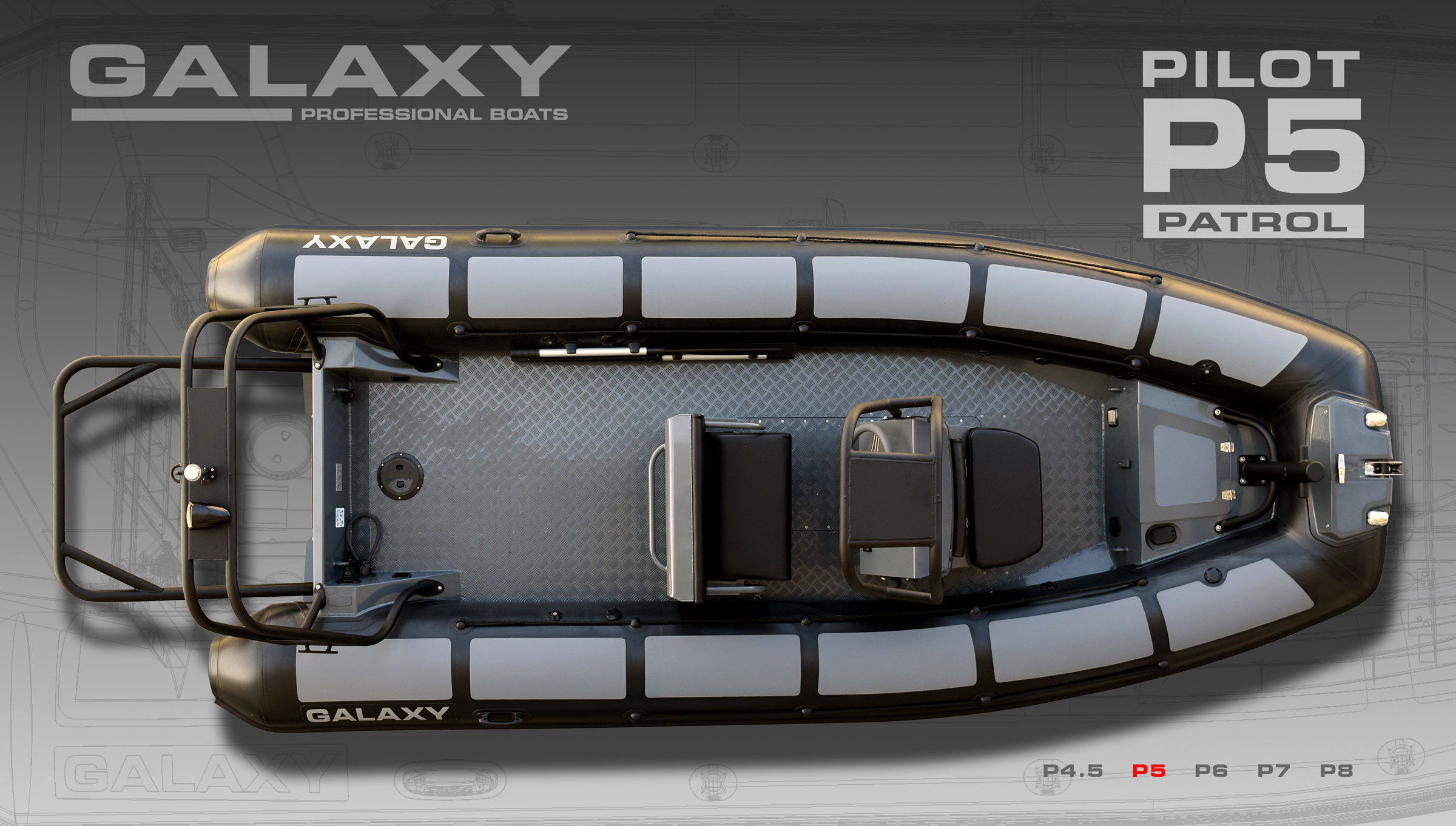

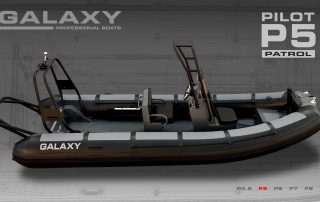

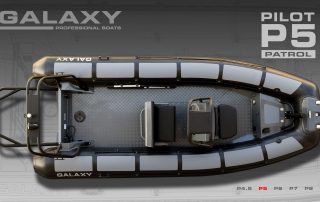

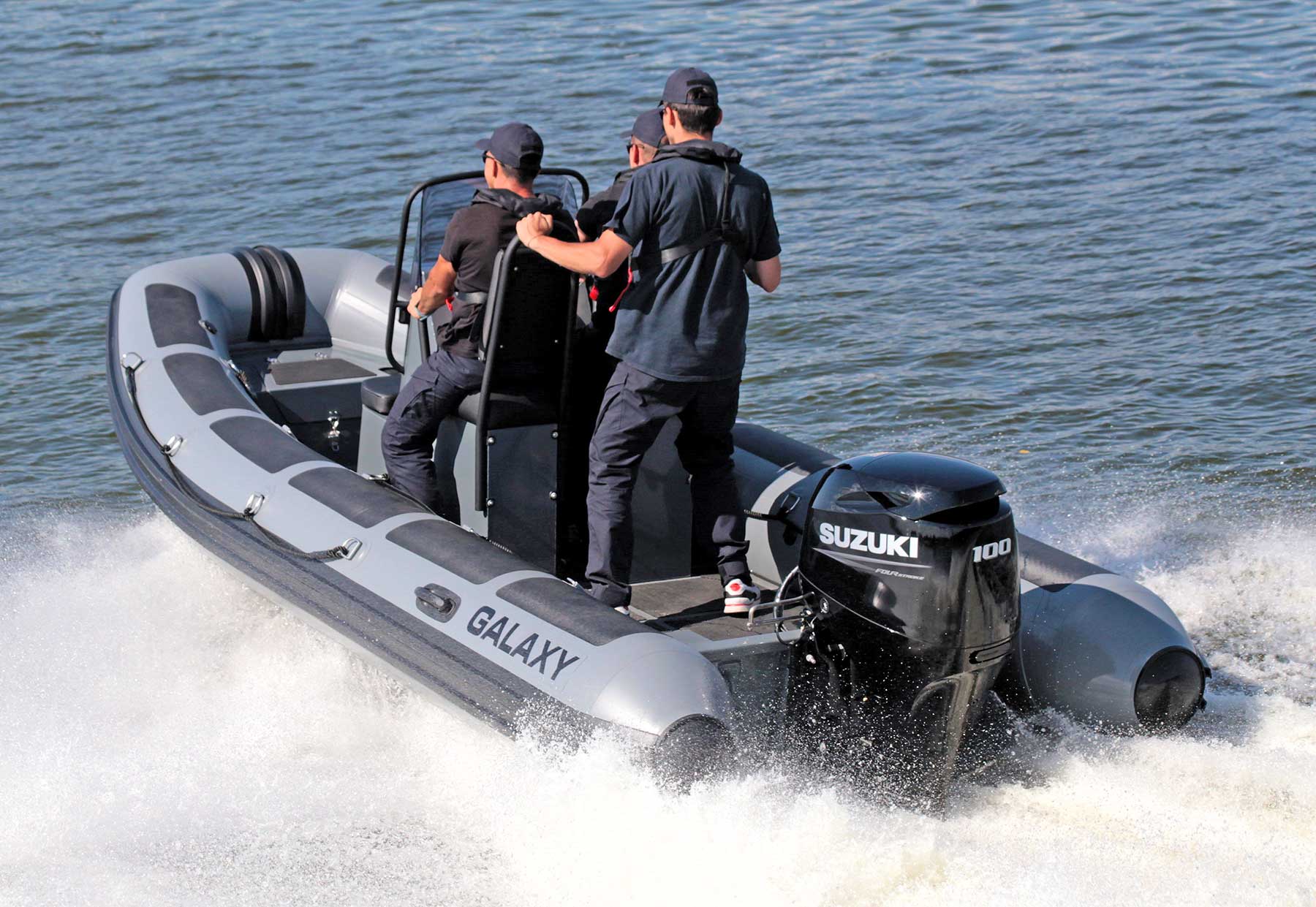

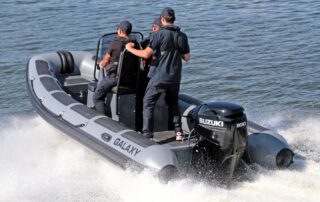

GALAXY Pilot P5 is a mid-size Professional RIB. Pilot P5 is 500cm (16’5”) long.

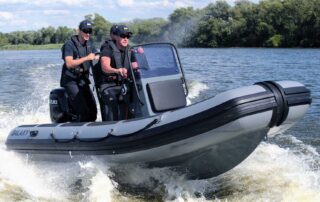

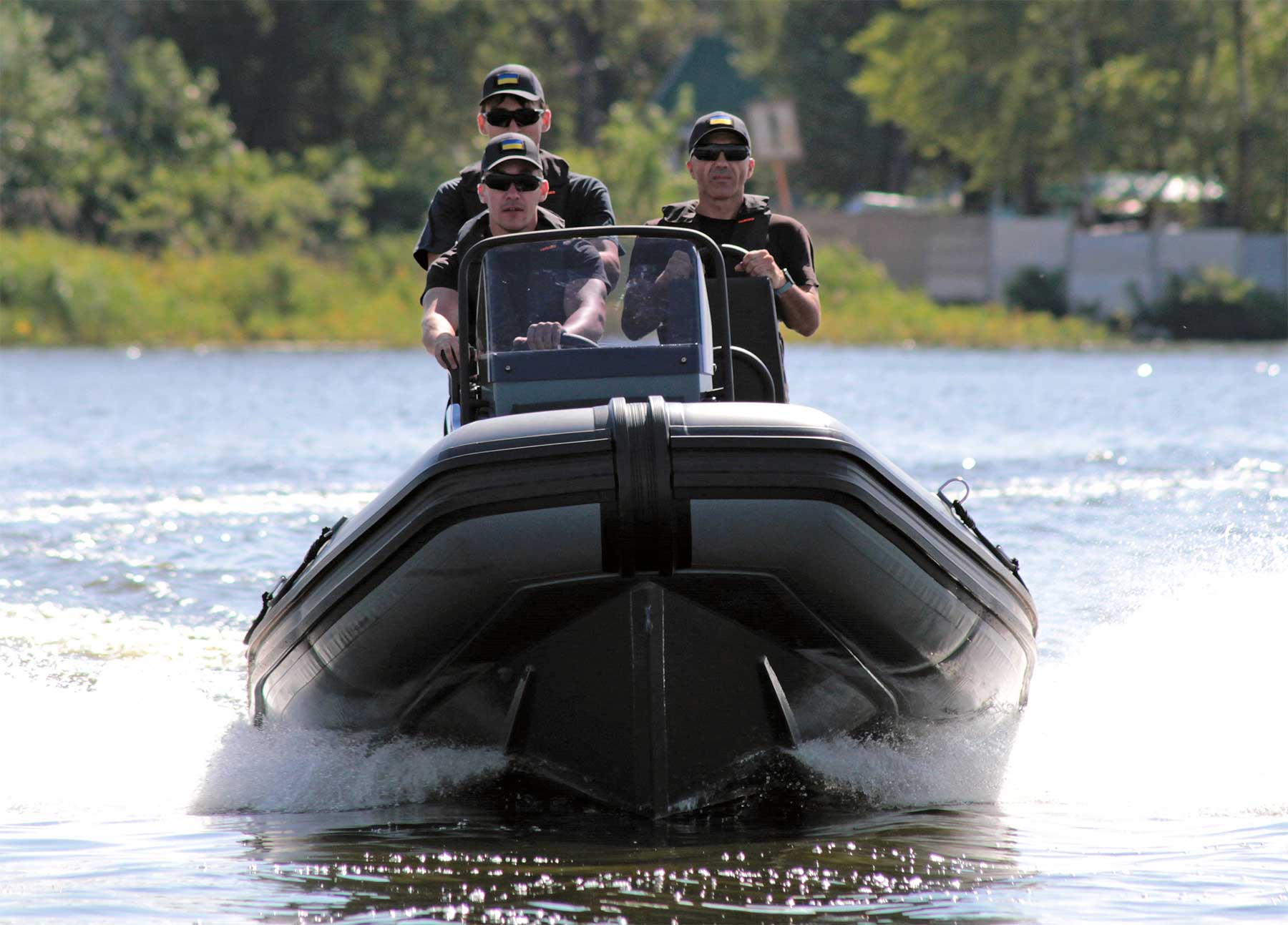

The Pilot P5 model is created for Patrol, Law Enforcement, Search and Rescue (SAR), Commercial use and much more in inland and sea costal waters. It’s light and easy to transport, so they are great when mobility is needed.
Key features:

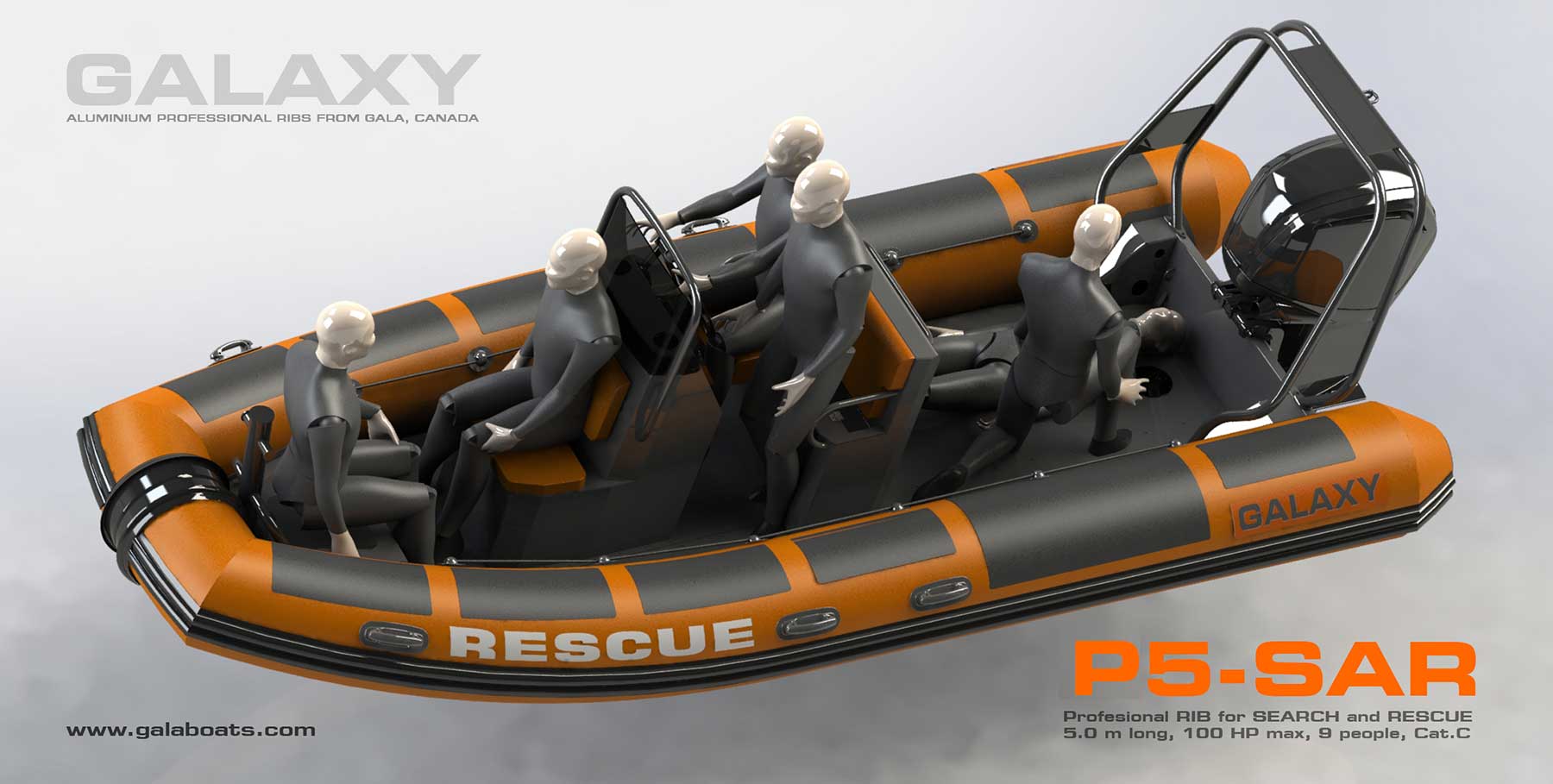

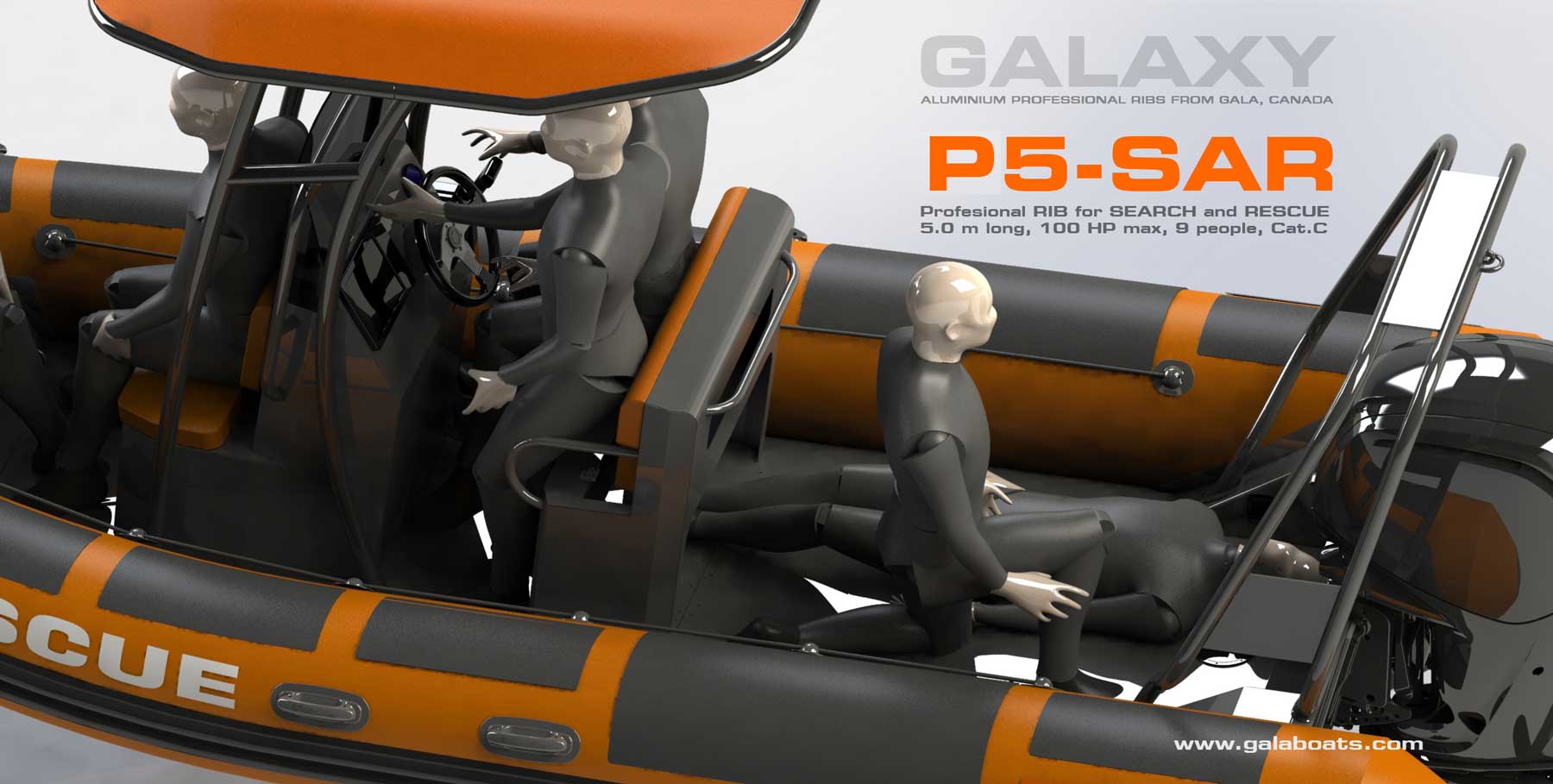

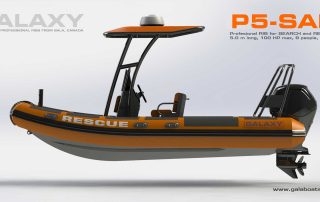

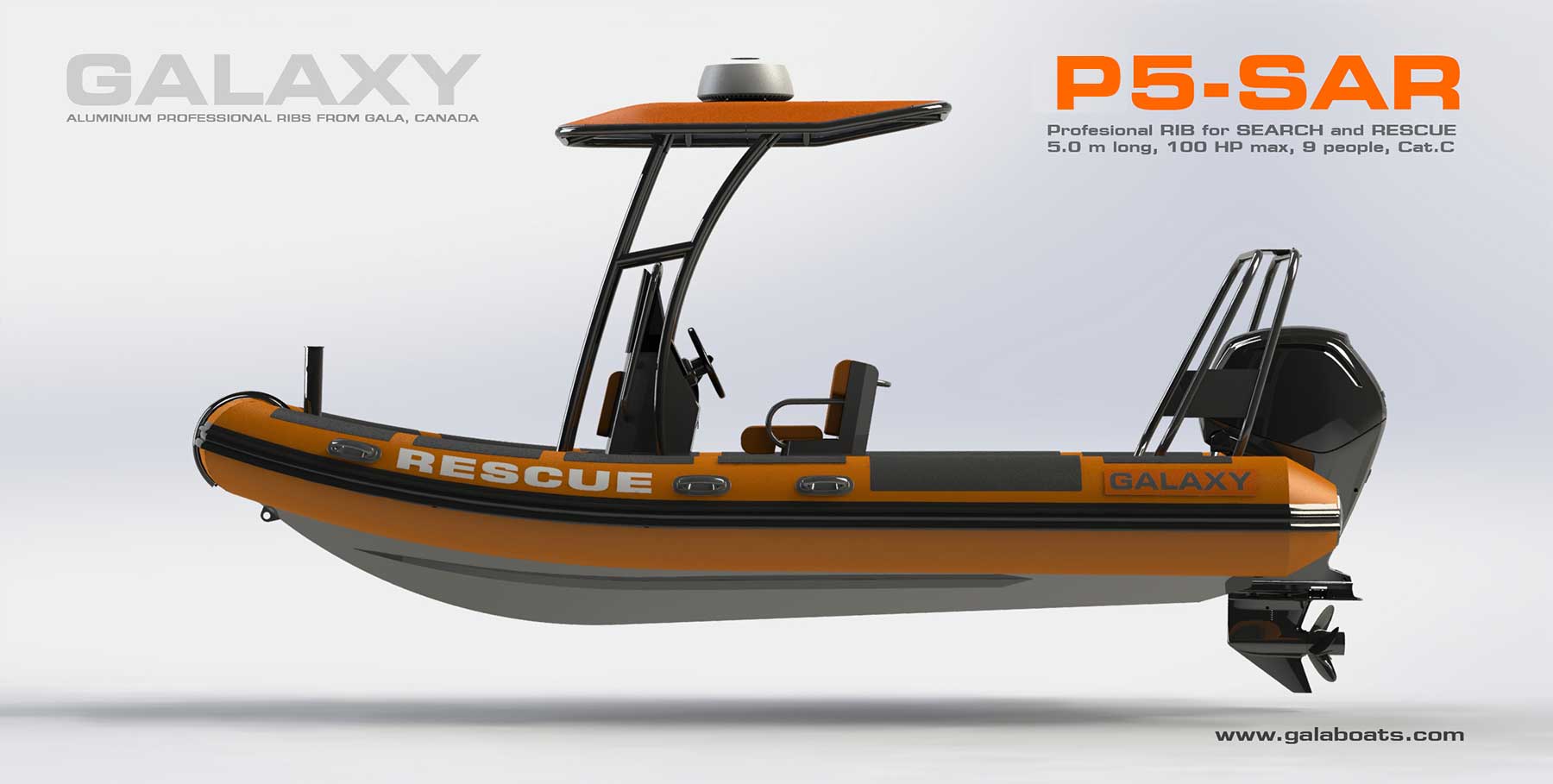

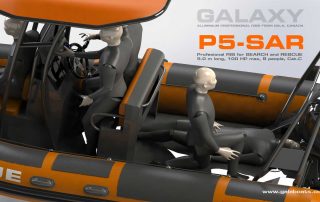

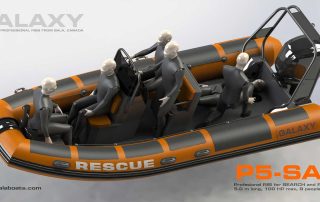

• Enough space for a person to lay down on stretcher for medical attention or transportation (SAR deck configuration)
• PRO decking with embossed antiskid surface QUINTET
• PASSIVATED and POWDER COATED reinforced welded aluminum hull with welded keel guard
• GALA-TABS hull extensions for superior performance
• Commercial grade inflatable tube made of VALMEX(PVC), TPU Polyurethane or HYPALON at your choice.
It is fully customizable with different steering consoles and seating layouts.
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
IMPORTANT MESSAGE TO ALL GALAXY CUSTOMERS!
We are happy to provide a unique and helpful service to each GALAXY customer: TO MAKE YOU SURE THAT THE BOAT YOU WANT TO ORDER IS EXACTLY WHAT YOU NEED, WE CREATE A 3-D VIZUALIZATION FOR EVERY SINGLE BOAT WITH ALL OPTIONS CHOOSEN FROM A HUGE VARIERY OF THEM , AVAILABLE FROM GALAXY! CONTACT US AND ASK FOR IT!
5 reasons to choose GALAXY
TRUE PRO GRADE DESIGN
GALAXY is TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.
FAST PRODUCTION & DELIVERY
We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!
100% CUSTOMIZED
We have a number of base boats with huge amount of optional equipment to choose from.
VARIETY OF DECK EQUIPMENT
GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!
3-D VISUALIZATION
We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!
VIDEO
COMING SOON
GALLERY
Features
STANDARD FEATURES:
- Aluminum PRO hull with welded keel guard, coated

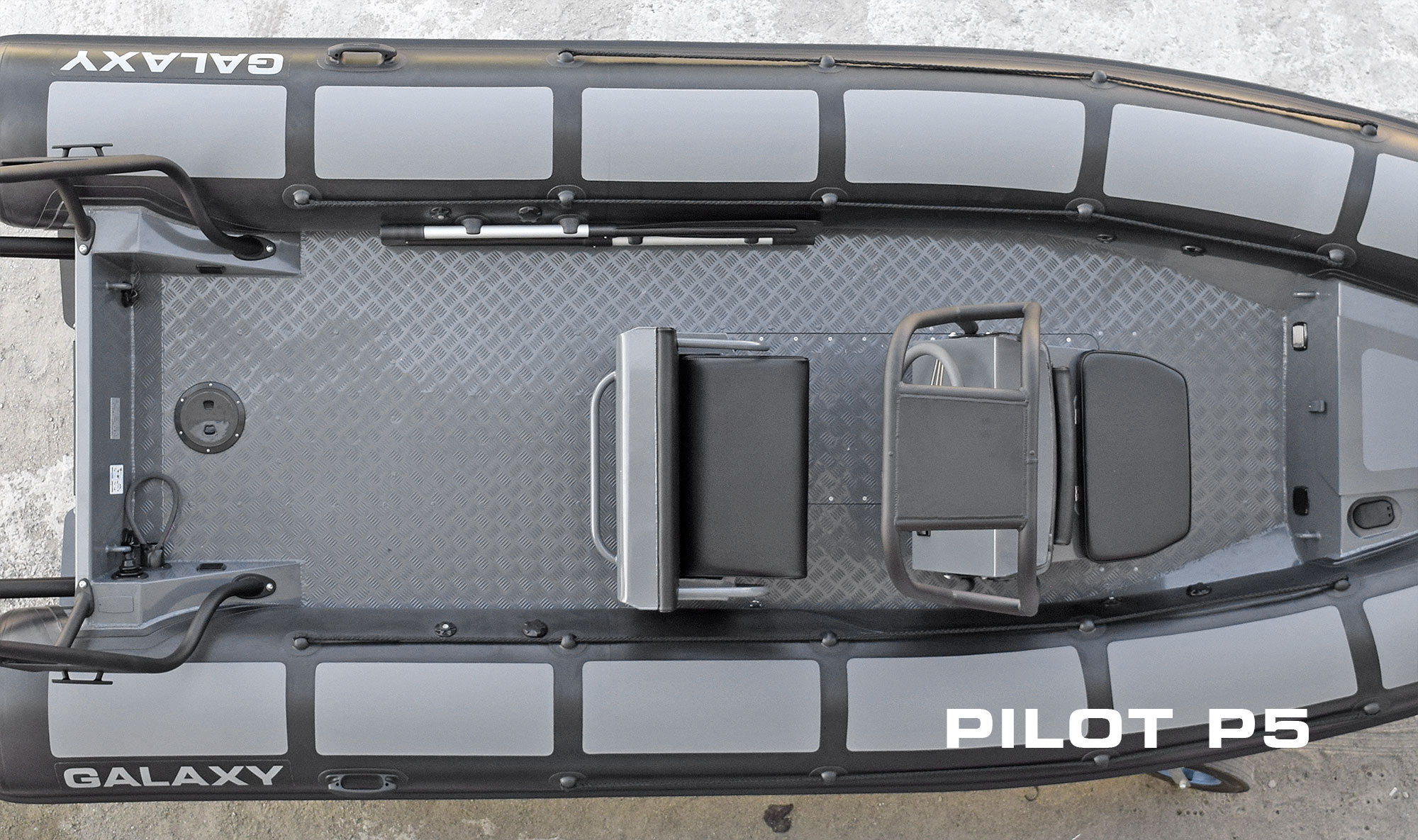

- Embossed antiskid QUINTET PRO decking
- GALA -TABS performance transom extensions
- Overpressure valves
- Set of foot pump, 2 paddles and repair/service kit
INFLATABLE TUBE OPTIONS:
- PVC inflatable tube with rub rail, protection pads, lifeline, handles (Default)
- HYPALON inflatable tube with rub rail, protection pads, lifeline, handles
- TPU Polyurethane tube with rub rail, protection pads, lifeline, handles
STEERING CONSOLES:

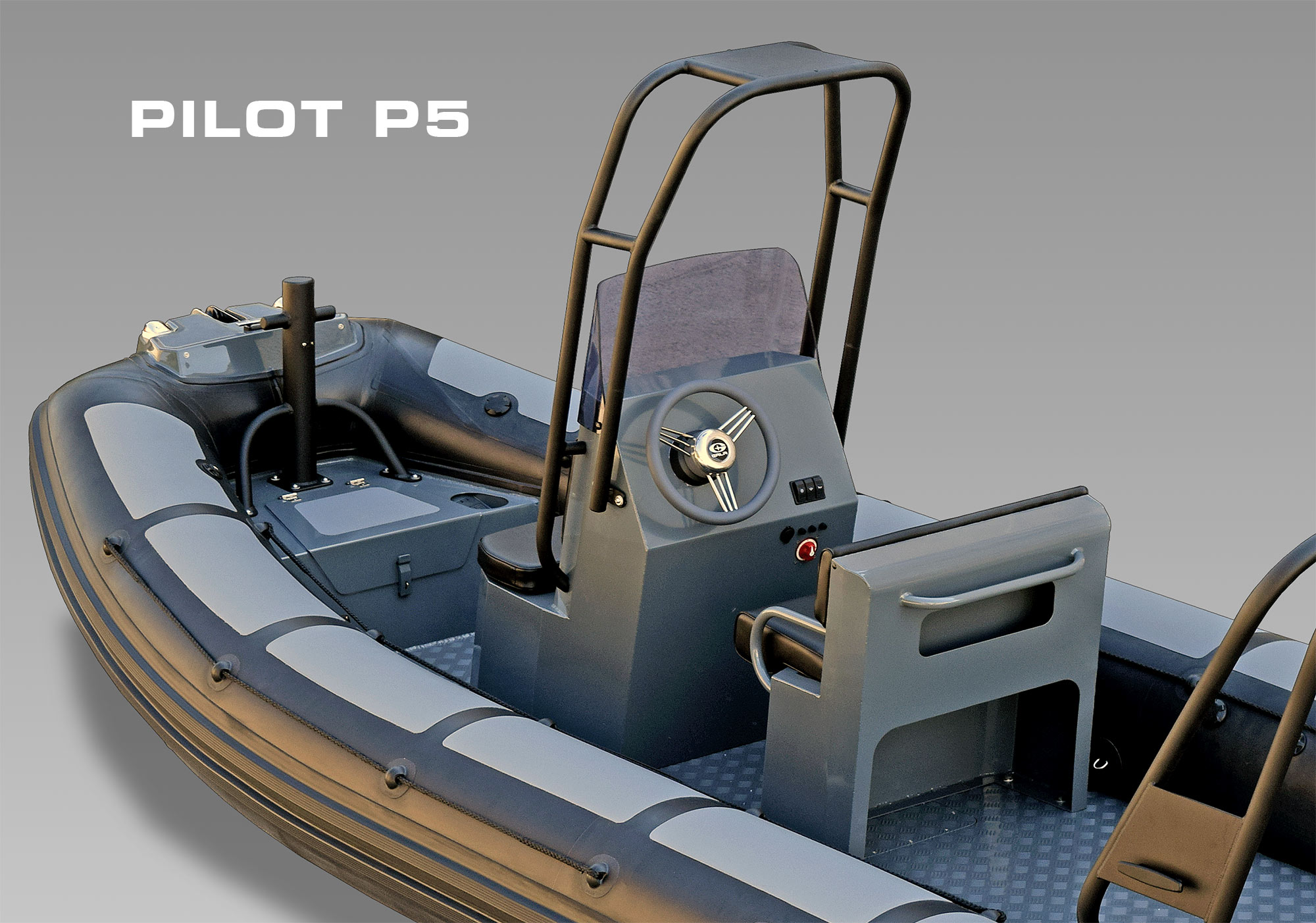

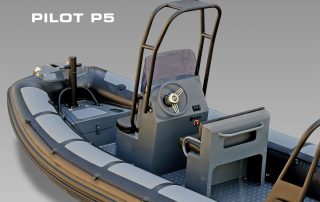

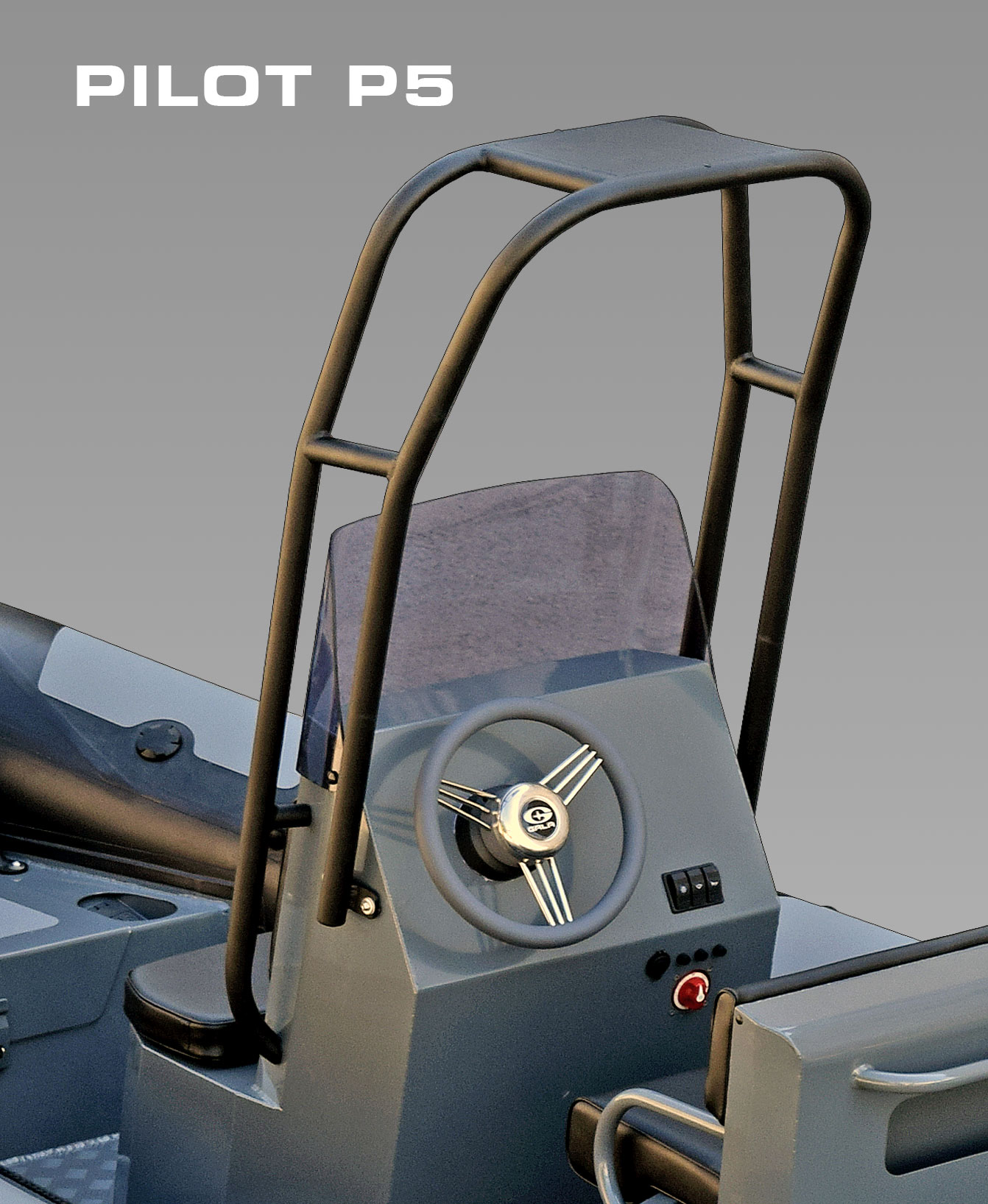

- Steering console C-09 , high, without front seat (Default)
- Steering console C-04P with front seat, windshield and tailing, aluminum
SEATING:
- Driver’s jockey seat S-22, without front handrail (Default)
- Bolster seat S12 , deck mount, with back rest
- Driver’s seat S-03PM
- Driver’s folding seat S-04P
- Driver’s jockey seats S-10
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
OPTIONAL EQUIPMENT:
- Steering wheel GALA Deluxe GRAY
- Mechanical steering system
- Electric PRO system with 2 pole battery switch
- Fuel system with 81 lit built in tank, send, deck fill, tubing, wiring
- Fuel gauge
- Bow step plate with anchor roller, fiberglass
- Bow step plate with anchor roller, aluminum
- Bow step plate with anchor roller, aluminum military
- Two side step panels, fiberglass
- T-top with wide equipment mounting plate
- Engine guard frame

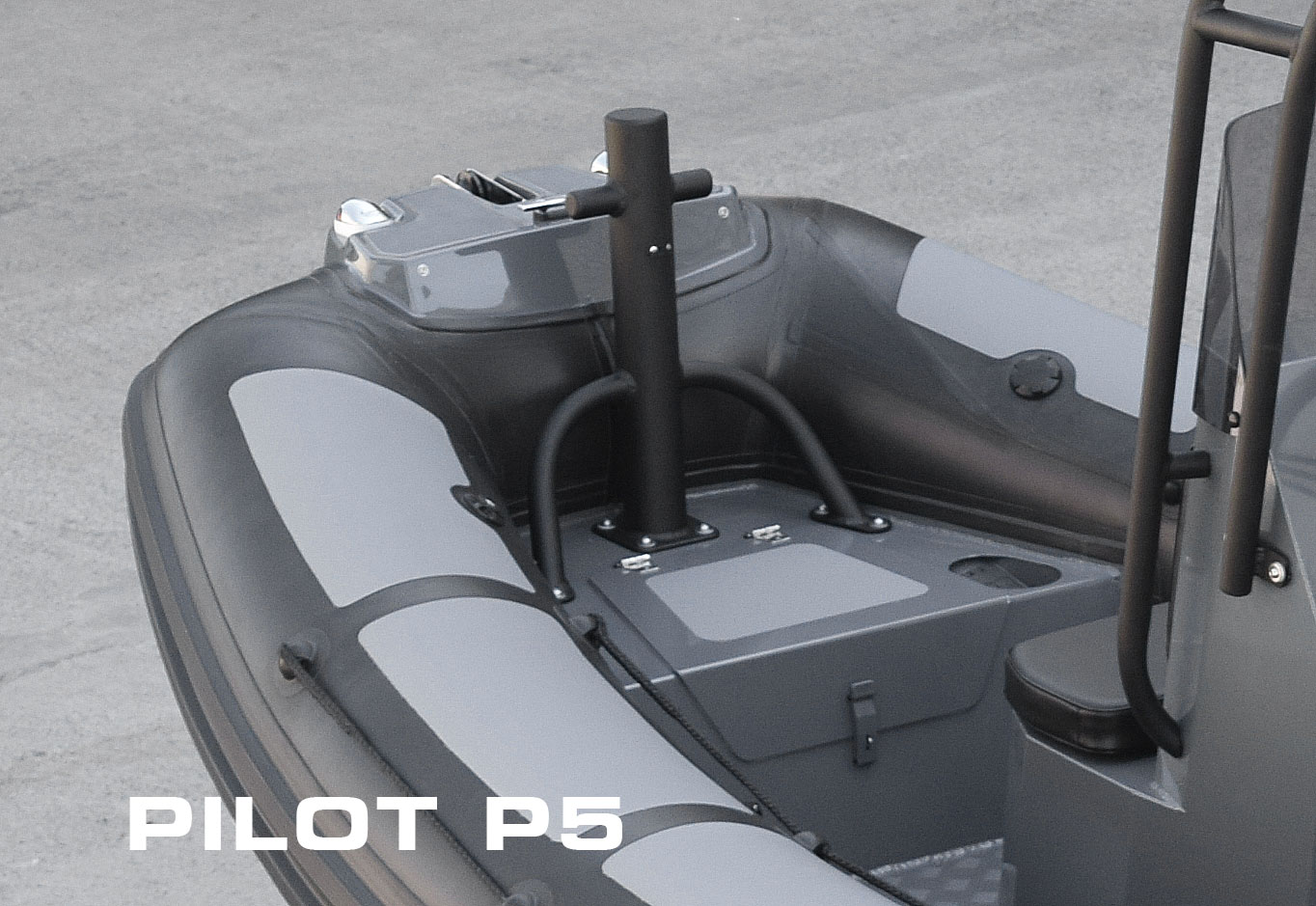

- Bow towing bollard with tube reinforcement

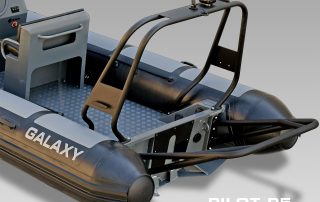

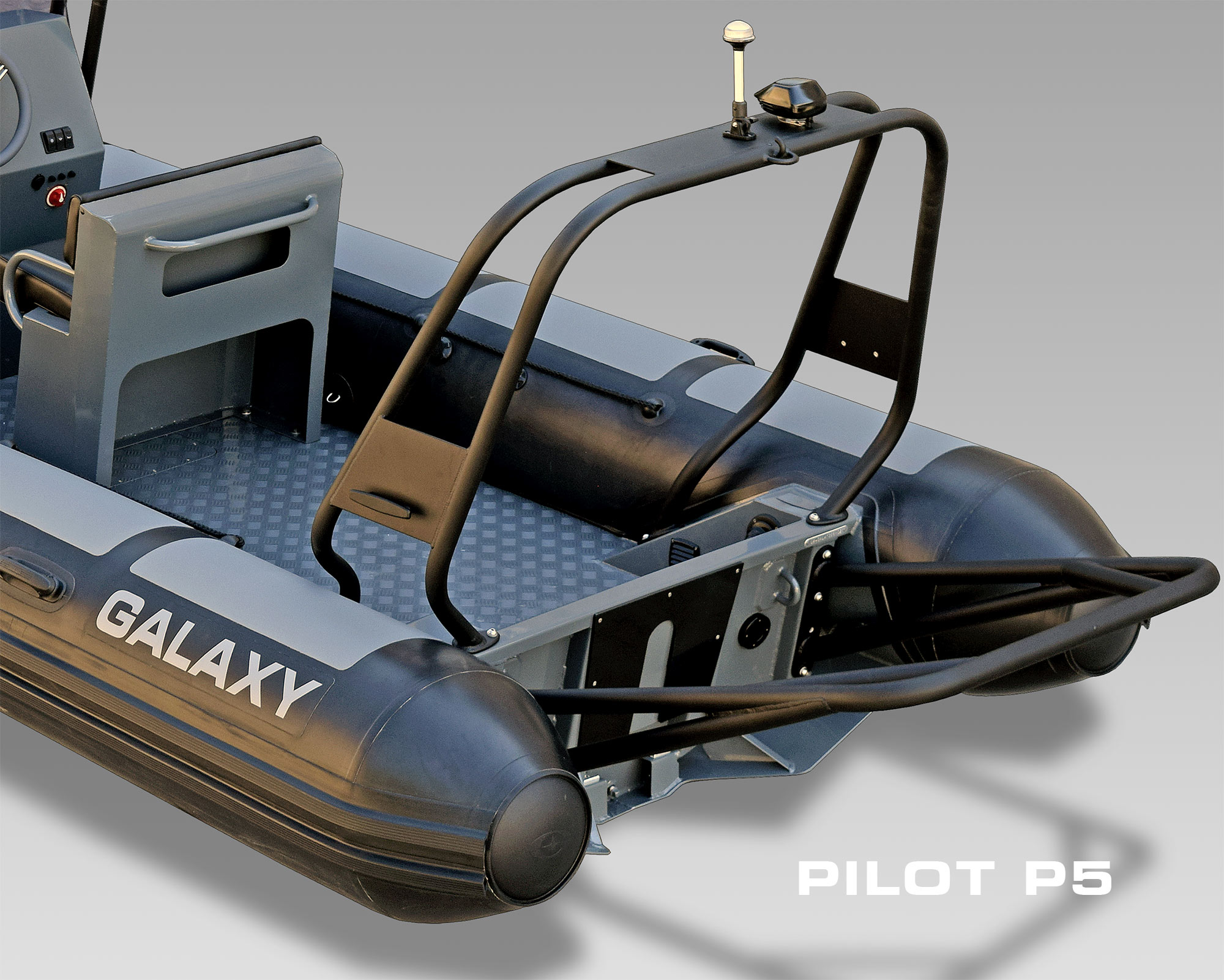

- Rear towing arch, wide
- Diving bottles storage rack for 4 bottles
- Diving bottles storage rack for 6 bottles
- Bow locker soft cushion
- Bow seat back cushion
- Individual overall cover
- Custom lettering on T-top
- Custom lettering on both sides of inflatable tube
Specifications
|
Models |
PILOT – P5 |
|
|---|---|---|
| Length overall | 500 cm / 16’5″ | |
| Length inside | 410 cm / 13’5″ | |
| Width overall | 215 cm / 7’1″ | |
| Width inside | 111 cm / 3’8″ | |
| Tube Diameter | 52 cm / 20″ | |
| Bare boat weight | 370 kg / 814 lbs | |
| Loading capacity | 900 kg / 1980 lbs | |
| Passenger capacity | 8 | |
| Number of chambers | 5 | |
| Engine recommended | 70 HP | |
| Engine MAX | 100 HP | |
| Engine weight MAX | 180 kg / 396 lbs | |
| Engine shaft length | 20″ | |
| Aluminum hull thickness | 5 mm | |
| Boat design category | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
BLACK / GRAY
Black tube
with gray decor.
Dark gray hull.
(Default color)

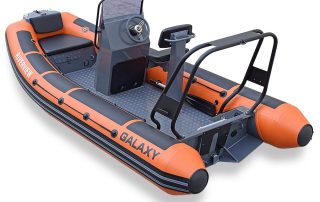

ORANGE / BLACK
Orange tube
with black decor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
