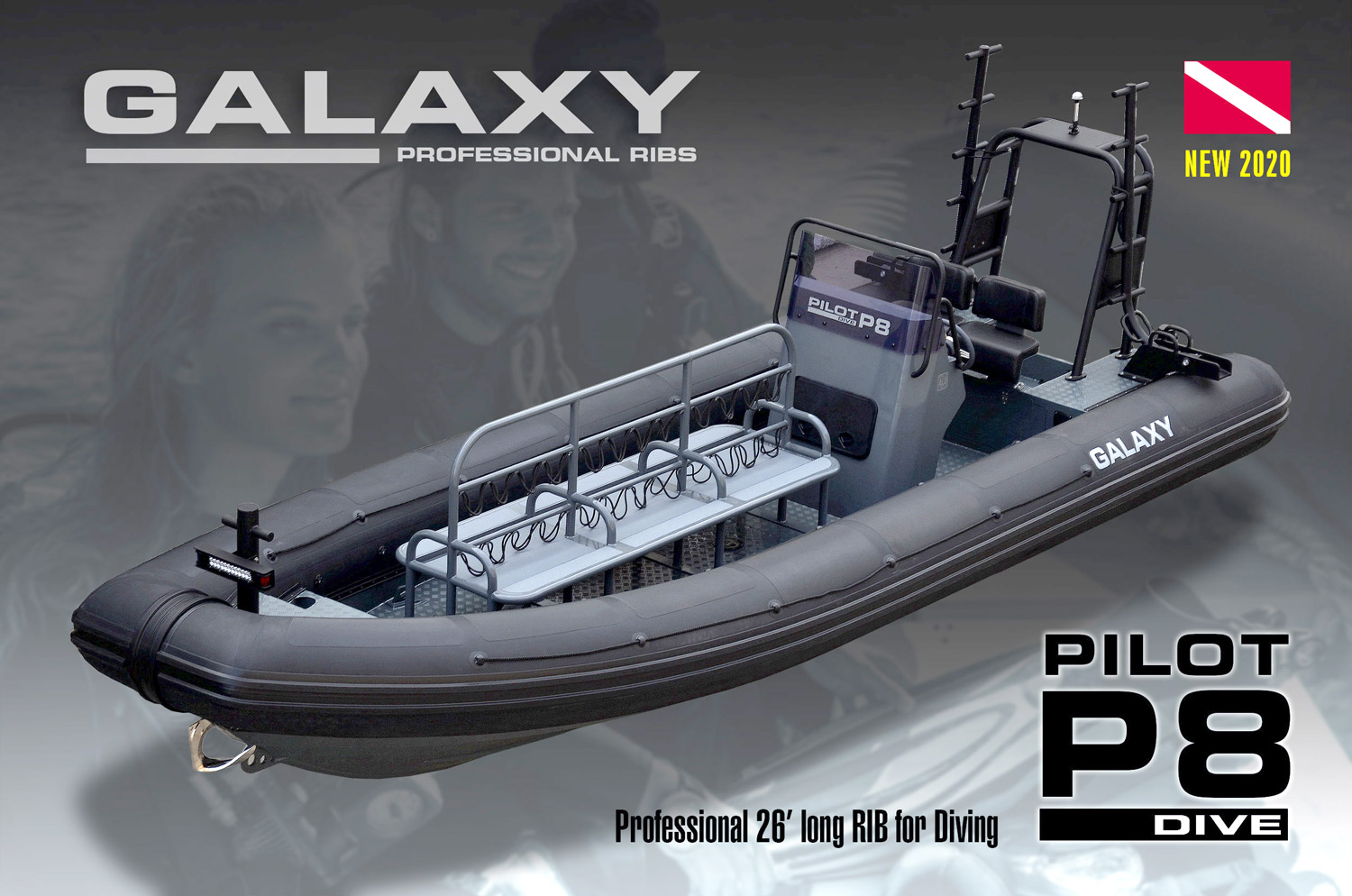

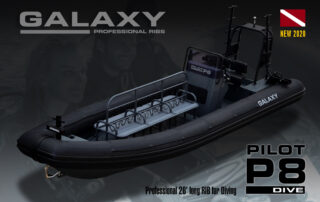

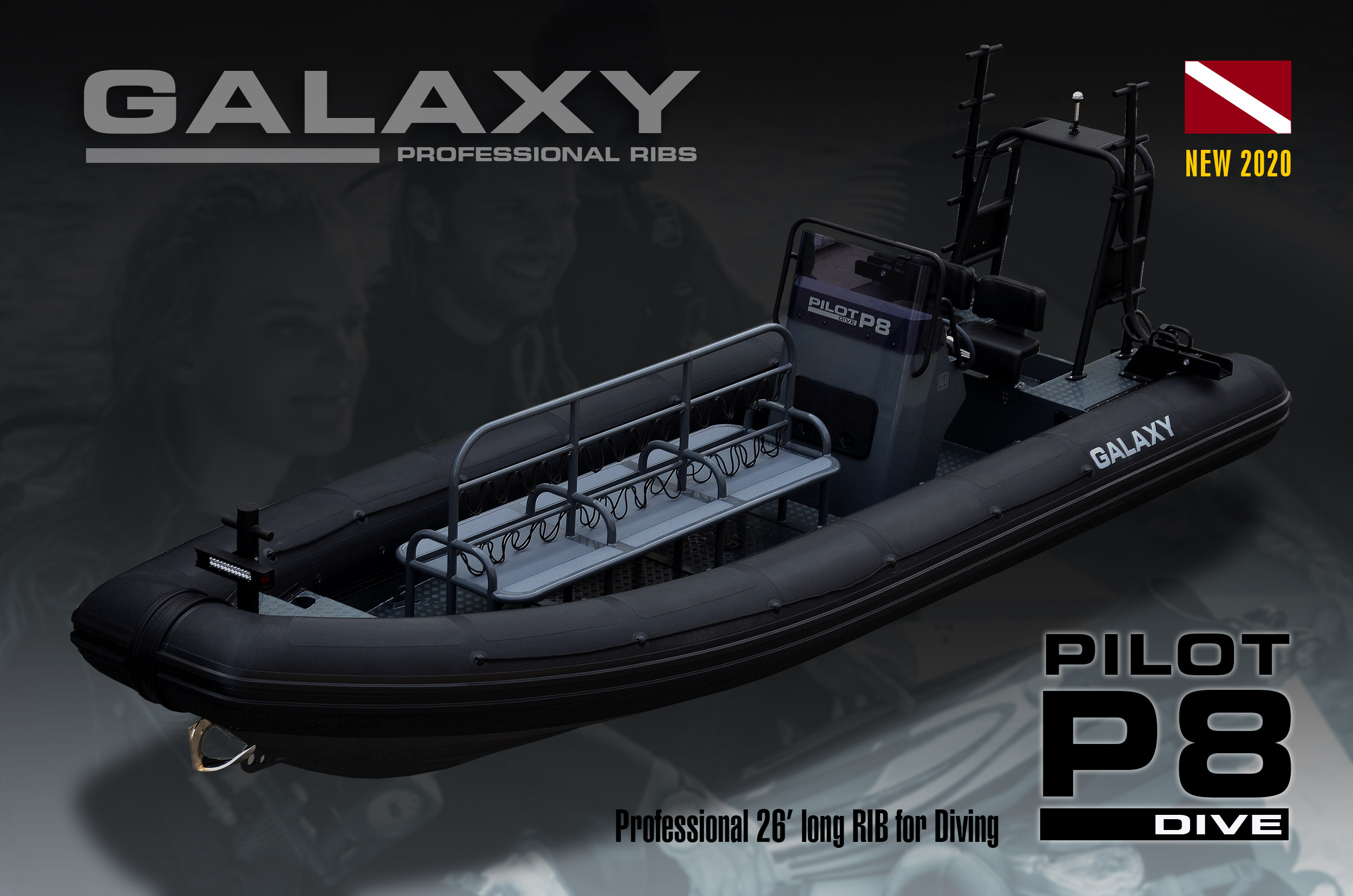

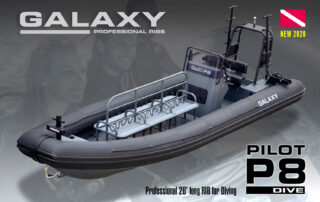

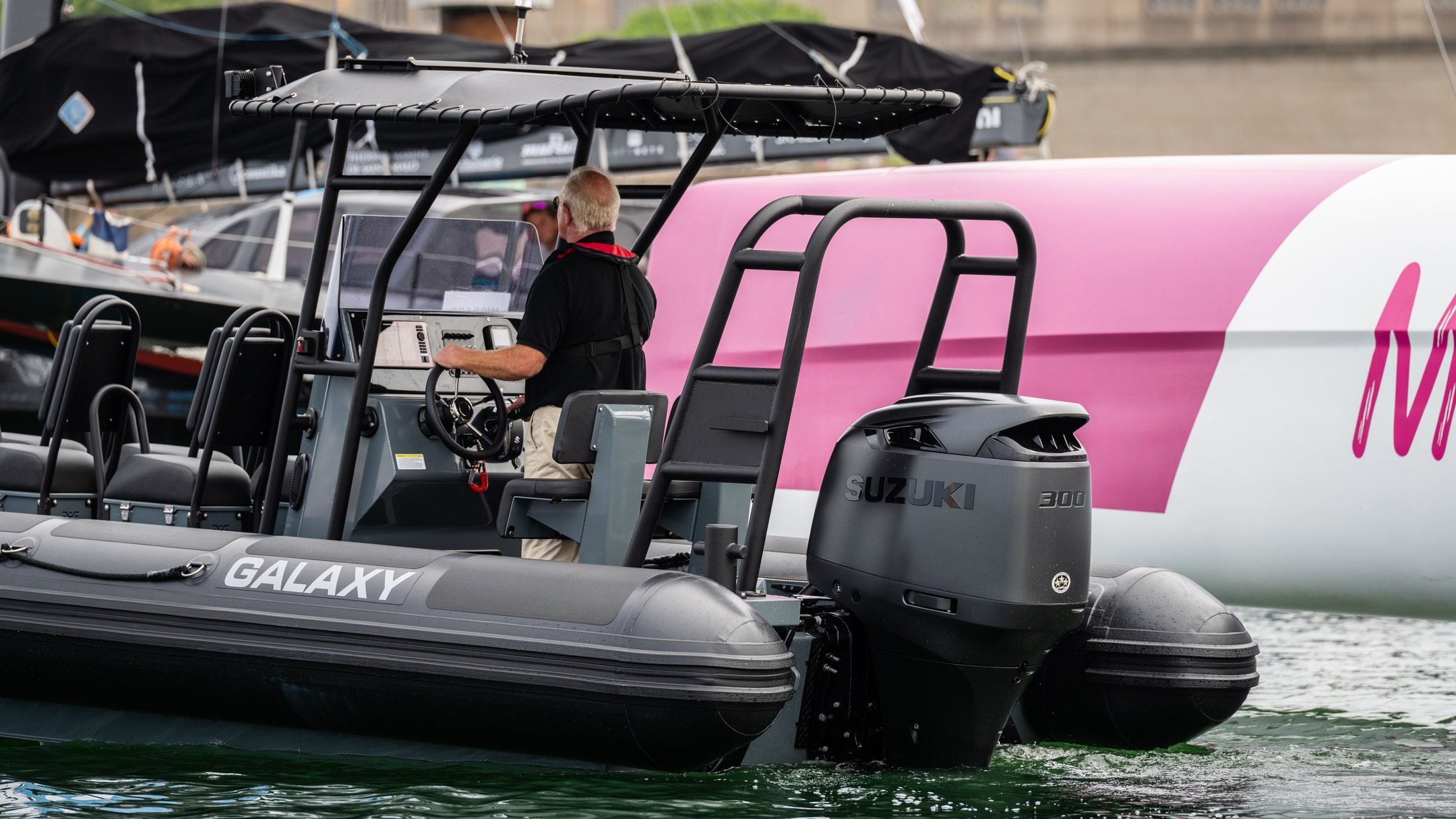

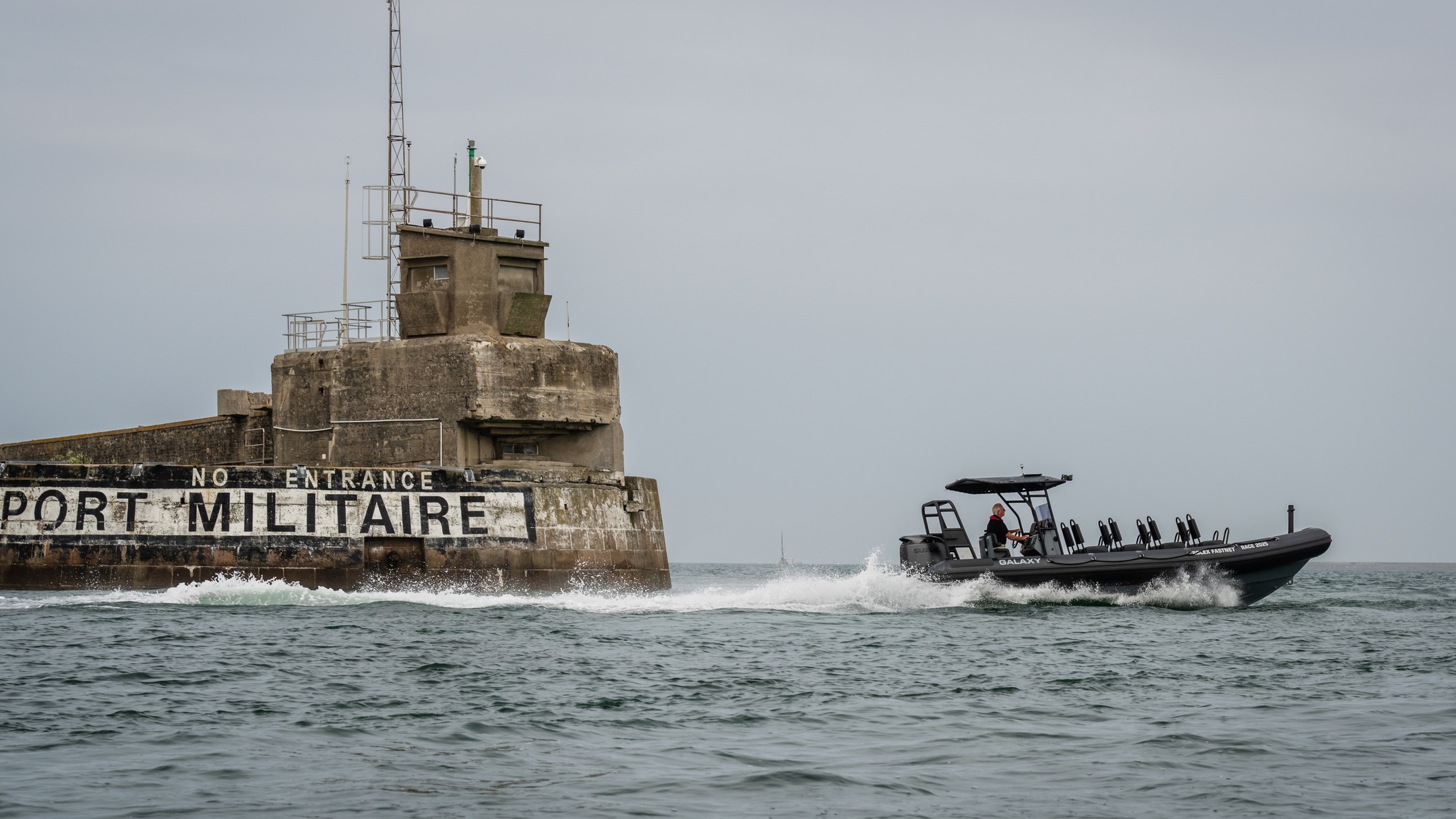

Pilot P8
BEST FOR:
PILOT – P8 WHALE WATCHING-1
25’7″ long, 300HP max
GALAXY – Pilot P8 model is one of our most popular and best selling models for professional use. Main application for this boat are:
• A number of commercial applications like WHALE WATCHING, COASTAL WATERS TOURING, PEOPLE TRANSPORTATION
• Rescue boats for Fire Departments and Rescue
• Law enforcement boat for inland and coastal waters
• General purpose work or commercial use boat.
The main and most attractive features and selling points of these models are:
• Impressive free deck space, allowing one person safely laying down along the deck for rescue and paramedics,
• A large number of different consoles, seats and boat equipment to customize the cockpit arrangement and match your needs exactly,
• Outstanding service with 3D CAD modelling for each single customer to visualize the boat you need with all features and equipment,
• High level of naval engineering and European production quality with highly optimized weight and performance
• Very short lead time from the project to finally delivered boat.
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
IMPORTANT MESSAGE TO ALL GALAXY CUSTOMERS!
We are happy to provide a unique and helpful service to each GALAXY customer: TO MAKE YOU SURE THAT THE BOAT YOU WANT TO ORDER IS EXACTLY WHAT YOU NEED, WE CREATE A 3-D VIZUALIZATION FOR EVERY SINGLE BOAT WITH ALL OPTIONS CHOOSEN FROM A HUGE VARIERY OF THEM , AVAILABLE FROM GALAXY! CONTACT US AND ASK FOR IT!
5 reasons to choose GALAXY
TRUE PRO GRADE DESIGN
GALAXY is TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.
FAST PRODUCTION & DELIVERY
We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!
100% CUSTOMIZED
We have a number of base boats with huge amount of optional equipment to choose from.
VARIETY OF DECK EQUIPMENT
GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!
3-D VISUALIZATION
We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!.
VIDEO
GALLERY
Features
STANDARD FEATURES:
- Aluminum PRO hull with welded keel guard, coated
- Embossed antiskid QUINTET PRO decking
- GALA-TABS performance transom extensions
- Overpressure valves
- Set of foot pump, 2 paddles and repair/service kit
INFLATABLE TUBE OPTIONS:
- PVC inflatable tube with rub rail, protection pads, lifeline, handles (Default)
- HYPALON inflatable tube with rub rail, protection pads, lifeline, handles
- TPU Polyurethane tube with rub rail, protection pads, lifeline, handles
STEERING CONSOLES:
- Steering console C-08 with windshield and railing (Default)
- Steering console C-08.1 without windshield and railing, aluminum
- Steering console C-24 with front seat
SEATING:
- Bolster seat S-11, motor well mount, with back rest (Default)
- Driver’s bolster seat S-09
- Driver’s bolster seat S-20
- Driver’s seat S-25
- Driver’s seat S-03PM
- Driver’s jockey seat S-10
- Driver’s jockey seat S-10 without front handrail
- Double-sided seat S14
- Double-sided seat S15
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
OPTIONAL EQUIPMENT:
- Steering wheel GALA Deluxe GRAY
- Hydraulic steering system
- Electric PRO system with 2 pole battery switch
- Fuel system with built in 300 lit tank, send, deck fill, tubing, wiring
- Fuel gauge
- Side board safety railings
- Aluminum side panels, aluminum
- T-top with wide equipment mounting plate
- Engine guard frame
- Steering console tower with mounting plate
- Bow towing bollard with tube reinforcement
- T-form rear towing mast
- Two rear towing bollards
- Rear towing arch, narrow
- Rear towing arch, wide
- Diving bottles storage back for 4 bottles
- Diving bottles storage back for 6 bottles
- Diving bottles storage back for 12 bottles
- Diving bottles storage back for 24 bottles with seating
- Folding diving ladders with deck mounts
- Anchor set with steel anchor, windlass and chain
- Bow locker soft cushion
- Bow seat back cushion
- Overall cover
- Custom lettering on T-top
- Custom lettering on both sides of inflatable tube
Specifications
|
Models |
PILOT – P8 |
|---|---|
| Length overall | 780 cm / 25’7″ |
| Length inside | 675 cm / 22’2″ |
| Width overall | 285 cm / 9’4″ |
| Width inside | 160 cm / 5’3″ |
| Tube Diameter | 60 cm / 24″ |
| Bare boat weight | 850 kg / 1870 lbs |
| Loading capacity | 2000 kg / 4400 lbs |
| Passenger capacity | 14 (Cat.C) / 10 (Cat.B) |
| Number of chambers | 5 |
| Engine recommended | 250 HP |
| Engine MAX | 350 HP |
| Engine weight MAX | 400 kg / 880 lbs |
| Engine shaft length | 30″ |
| Aluminum hull thickness | 5 mm / 13/64″ |
| Boat design category | C / B |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
BLACK / GRAY
Black tube /gray decor.
Dark gray hull.
(Default color)
ORANGE / BLACK
Orange tube
with black décor.
Dark gray hull.
RED / BLACK
Red tube
with black decor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
