GALAXY Pilot – P4.5

BEST FOR:

Every GALAXY rigid inflatable boat can be fully customized to meet requirements and specifications for Search and Rescue operations.
Every GALAXY rigid inflatable boat can be fully customized to meet requirements and specifications for law enforcement and security operations.
Every GALAXY rigid inflatable boat can be fully customized to meet requirements and specifications for military naval applications.

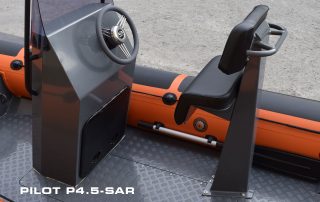

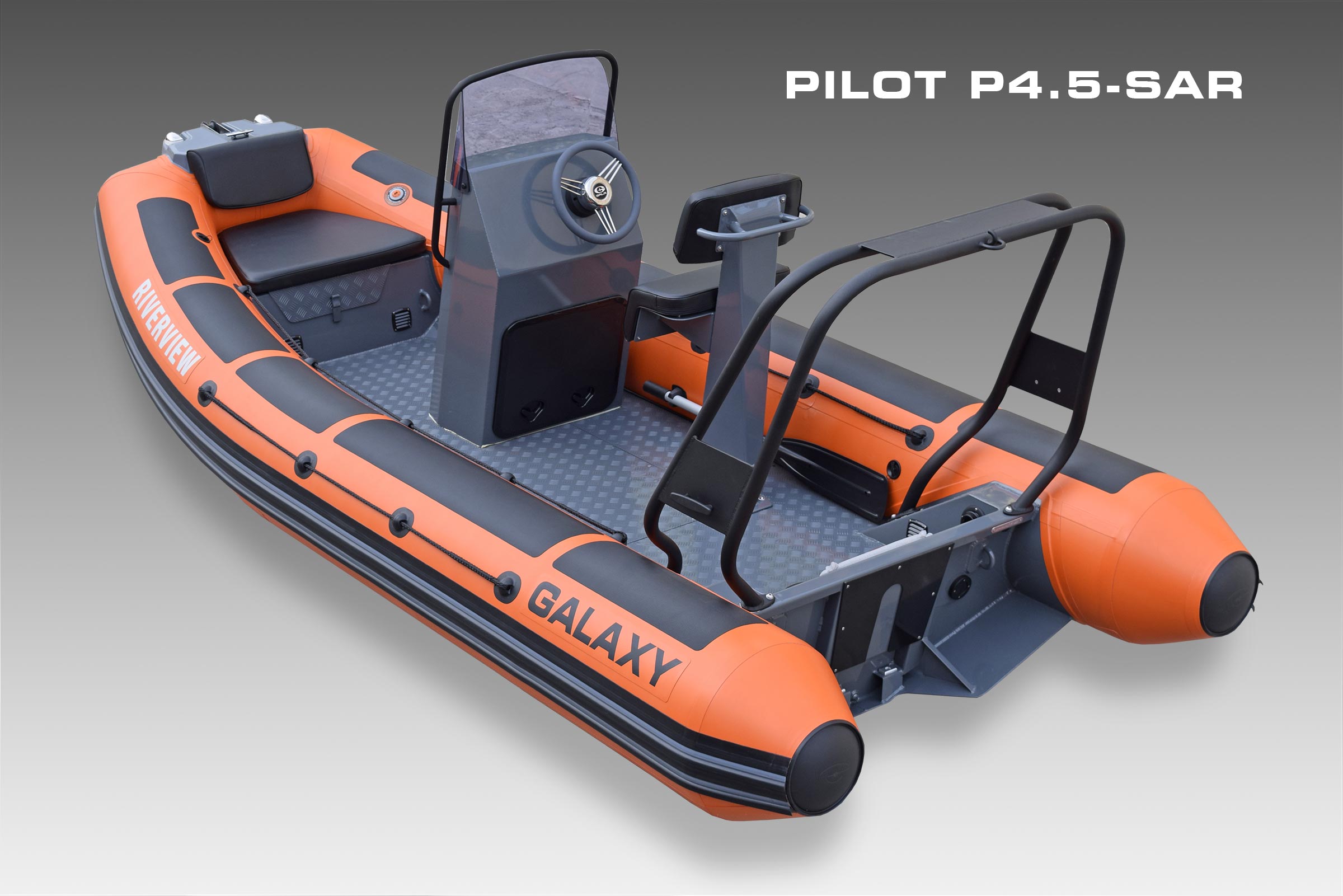

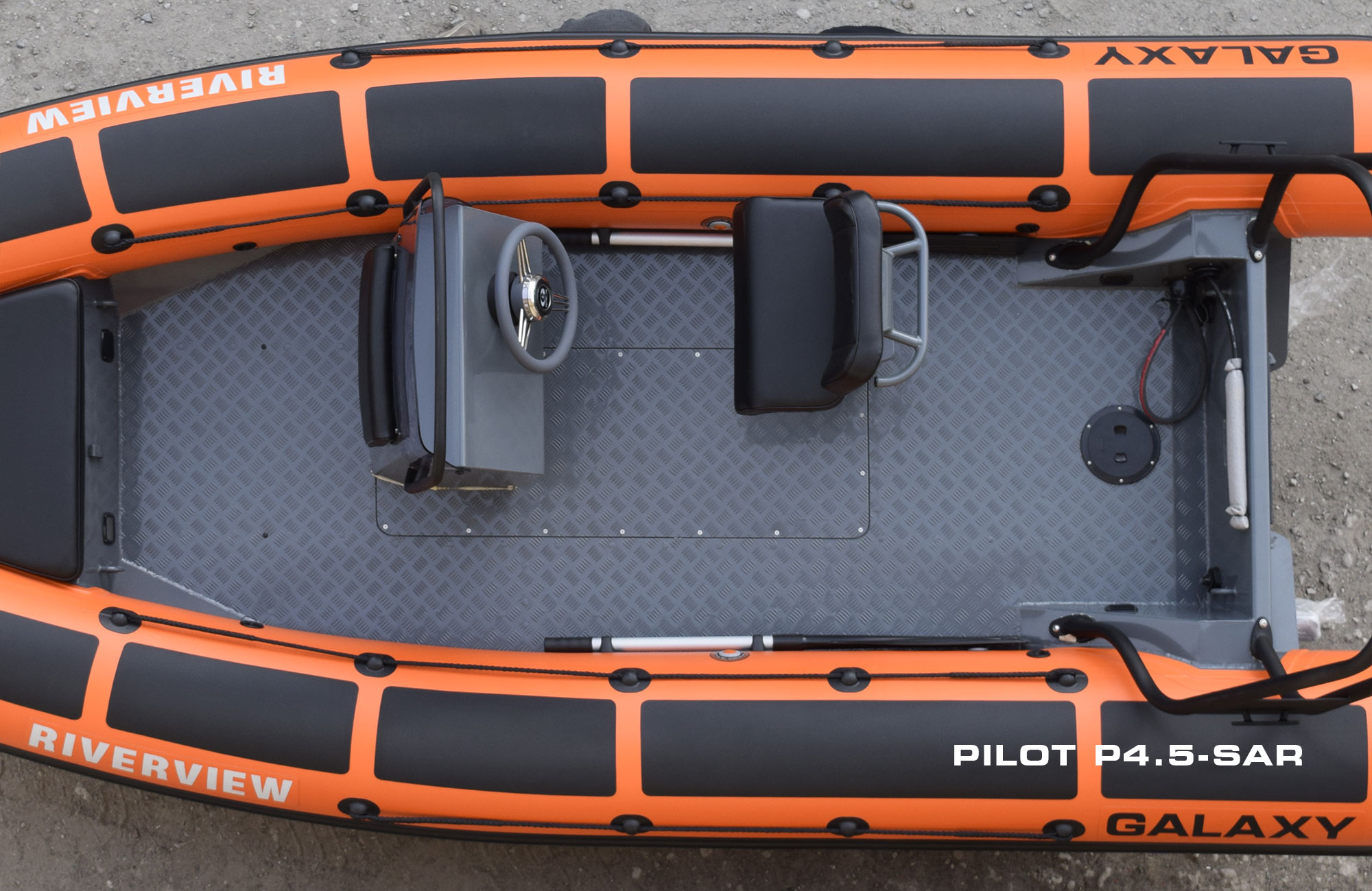

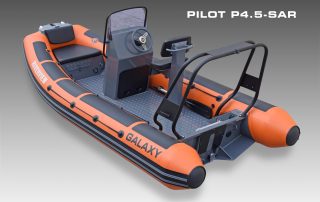

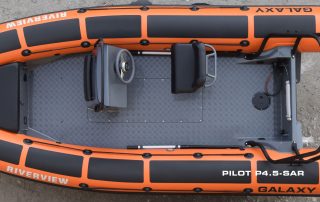

GALAXY P4.5 FIRE/SAR

14’9″ long, 70 HP max

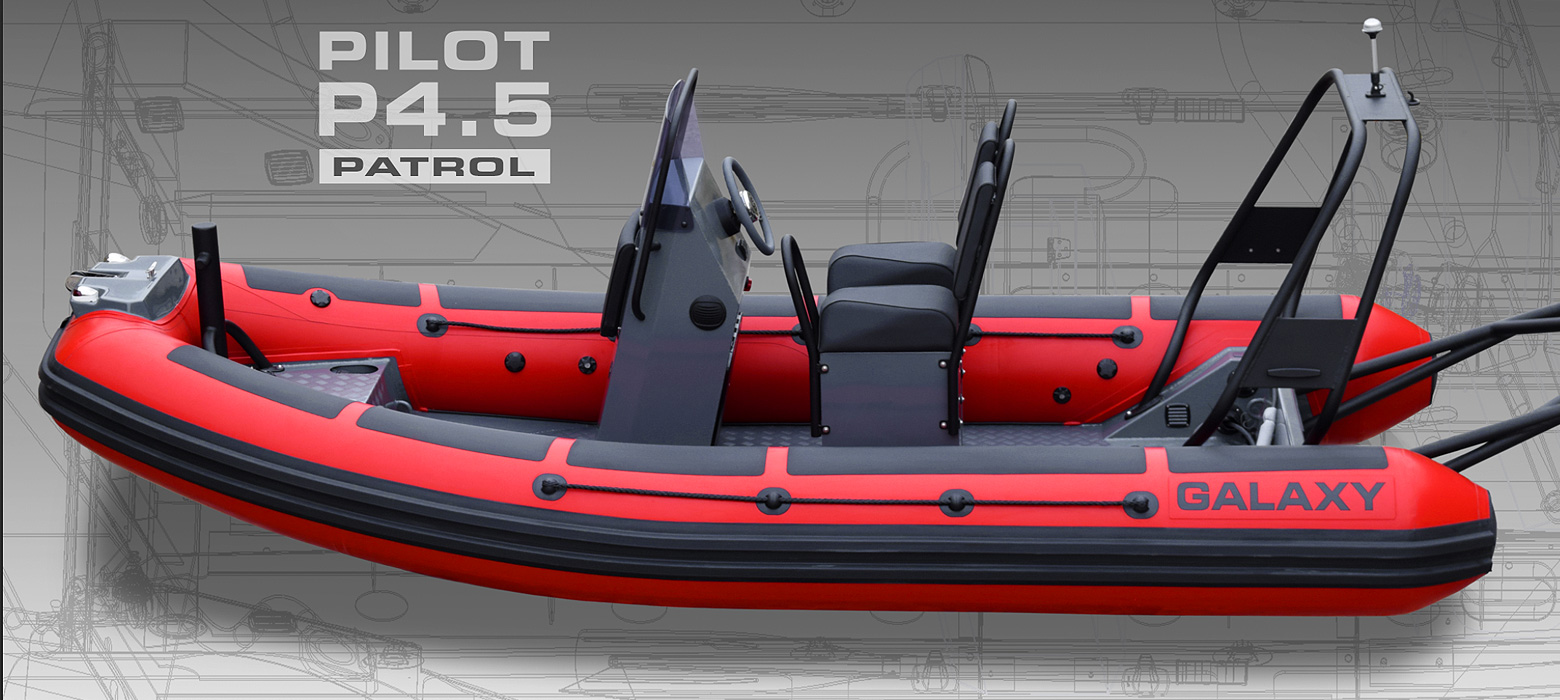

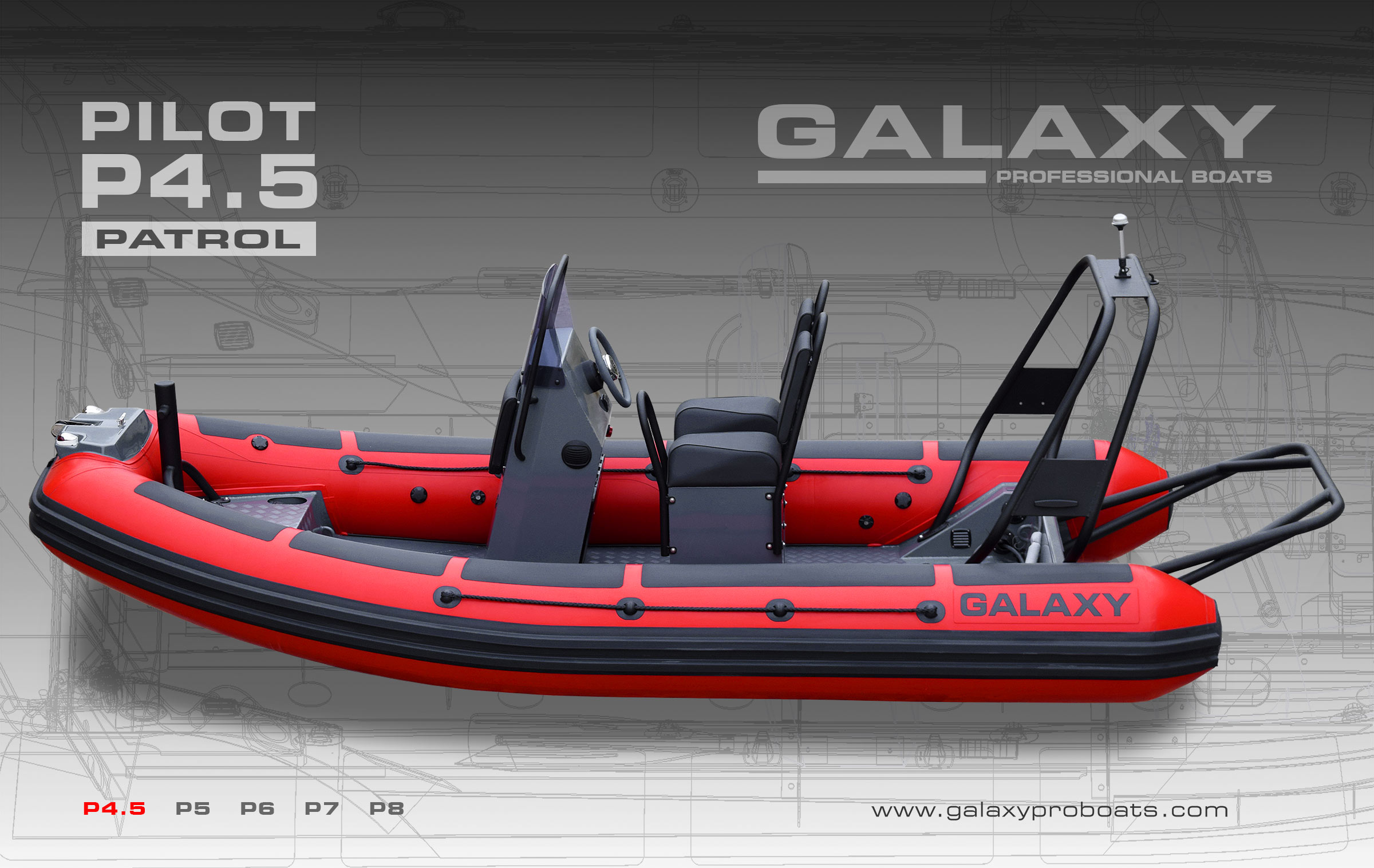

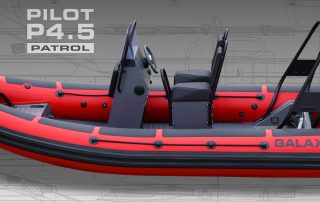

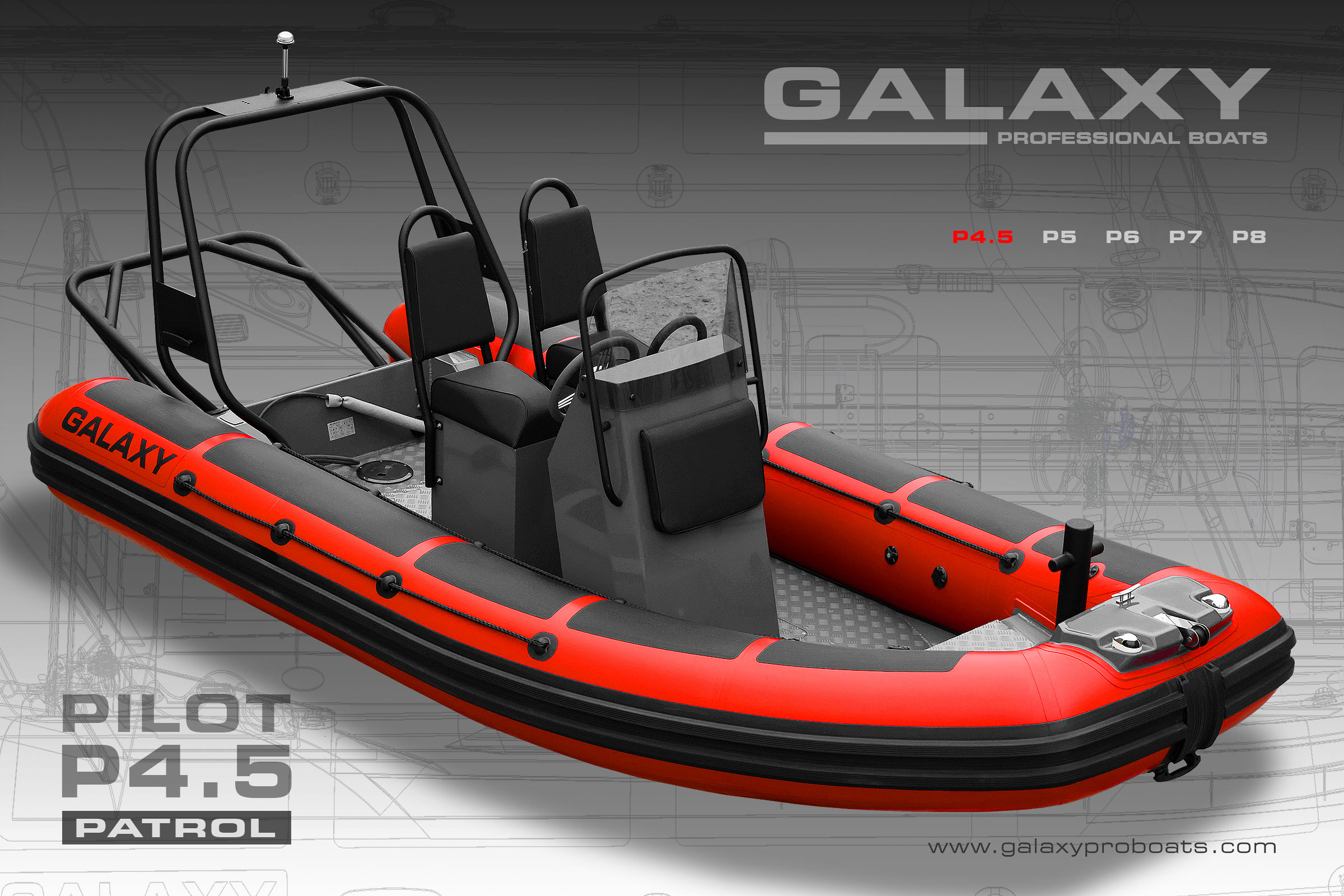

GALAXY P4.5 PATROL

14’9″ long, 70 HP max

GALAXY P4.5 OPEN

14’9″ long, 70 HP max

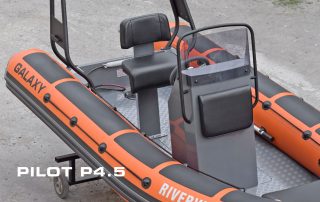

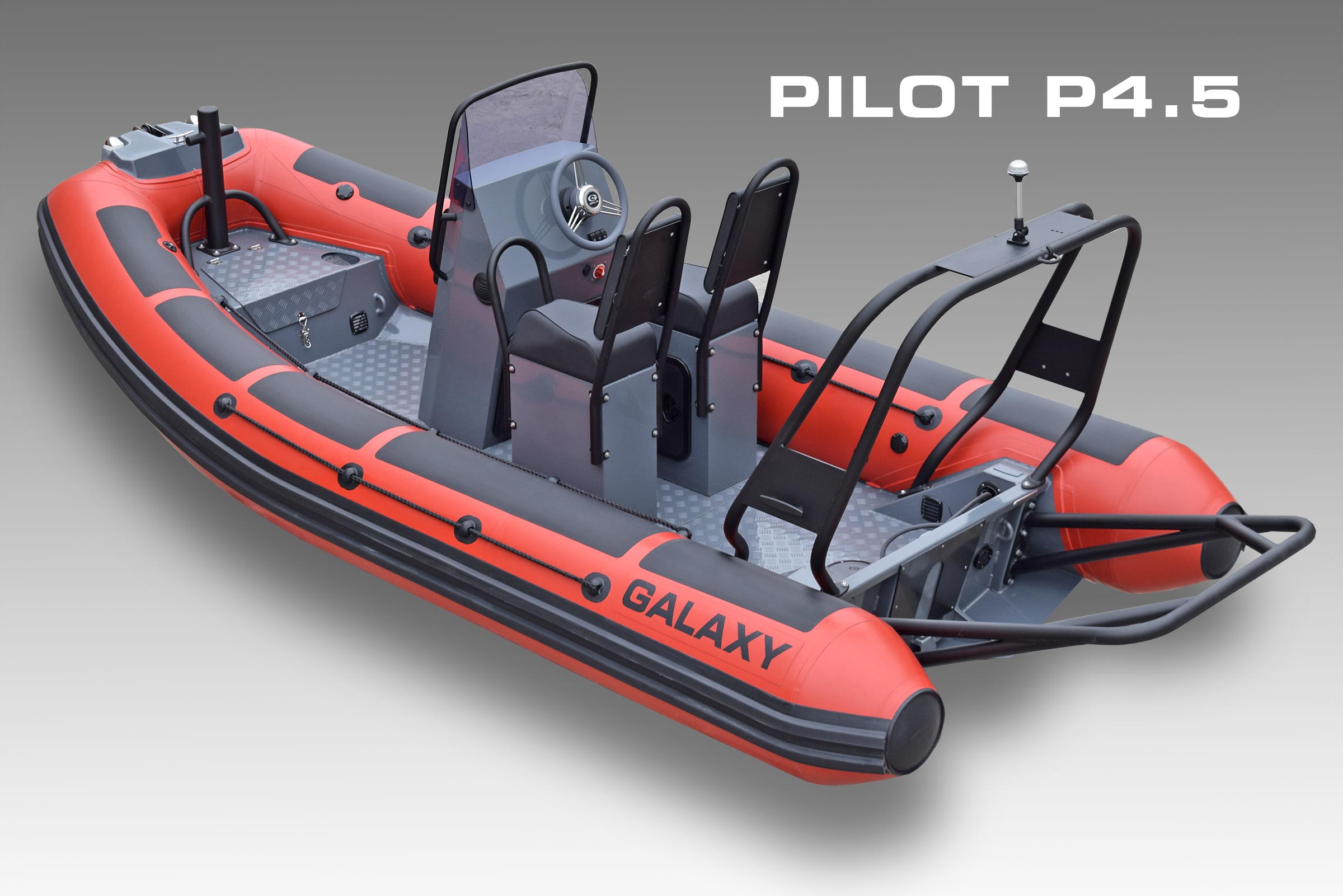

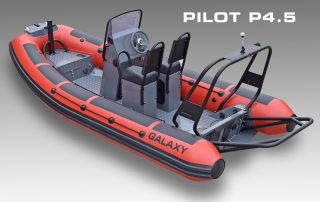

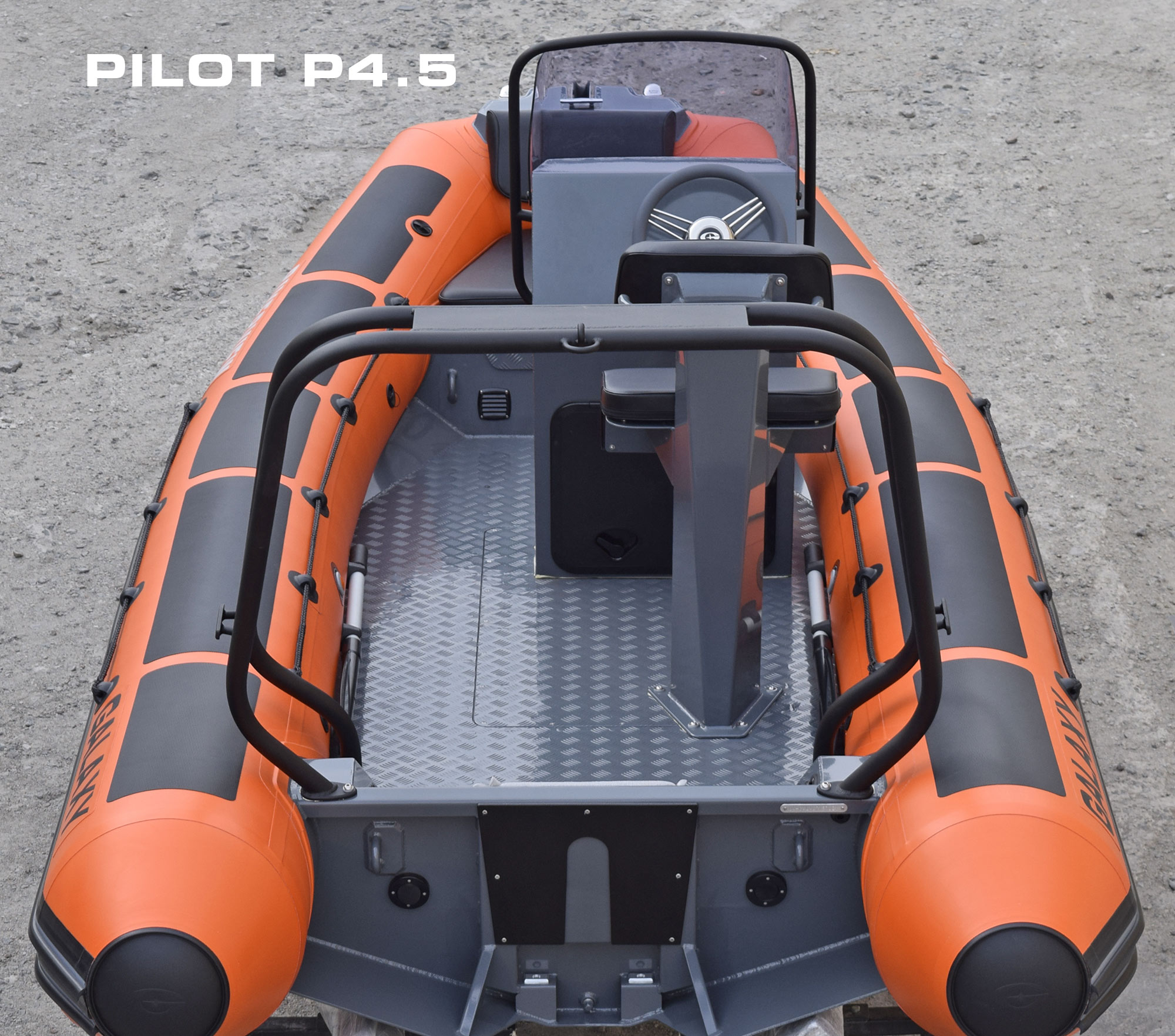

GALAXY Pilot P4.5 is a mid-size Professional RIBs, 450 cm (14’9”) long, one of the smallest and lightest in GALAXY range.

It is created for Patrol, Law Enforcement, Search and Rescue (SAR), Commercial use and much more in inland and sea costal waters. P4.5 is easy to transport, so they are great when mobility is needed.

Key features:

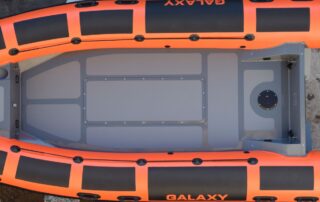

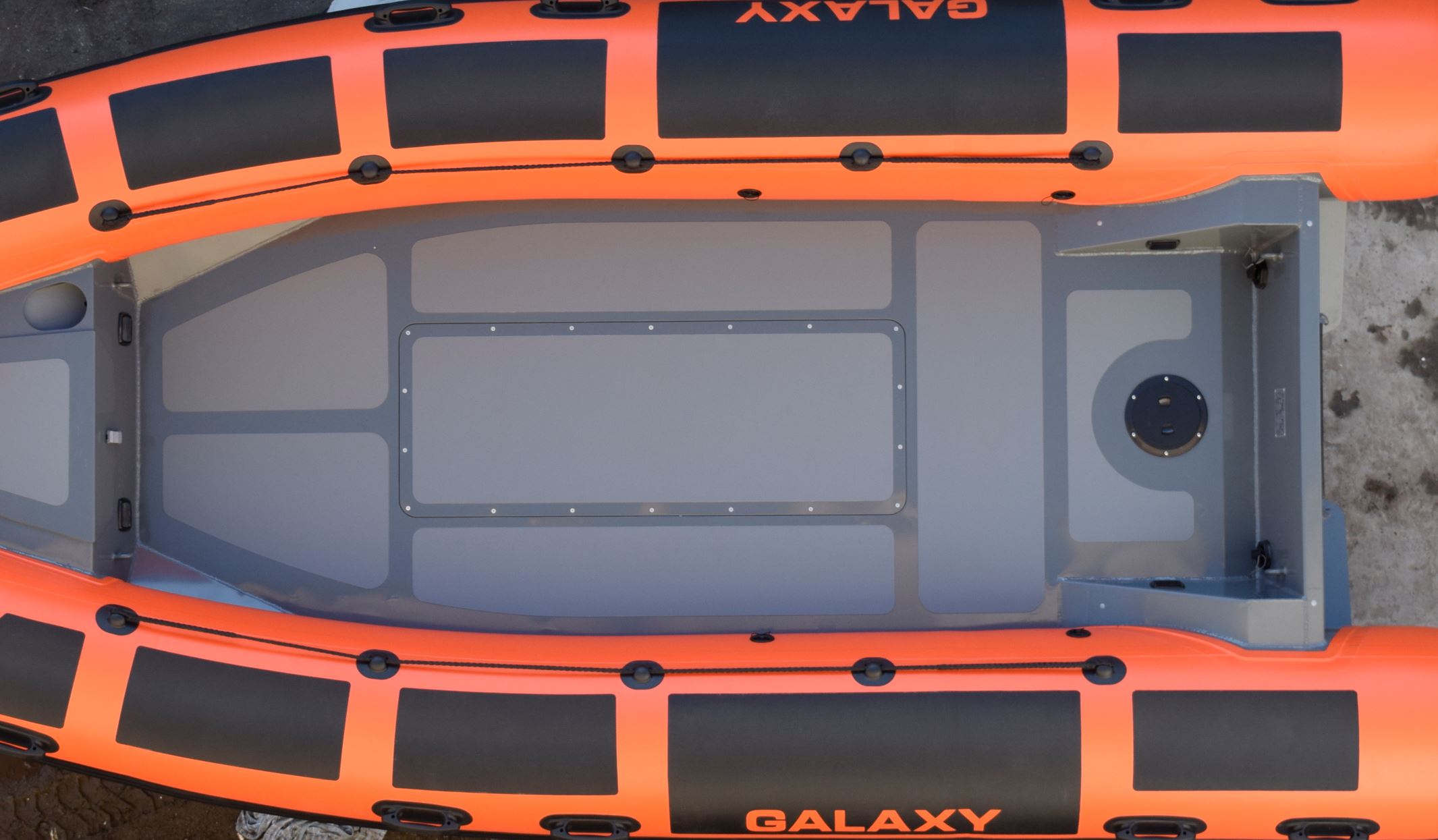

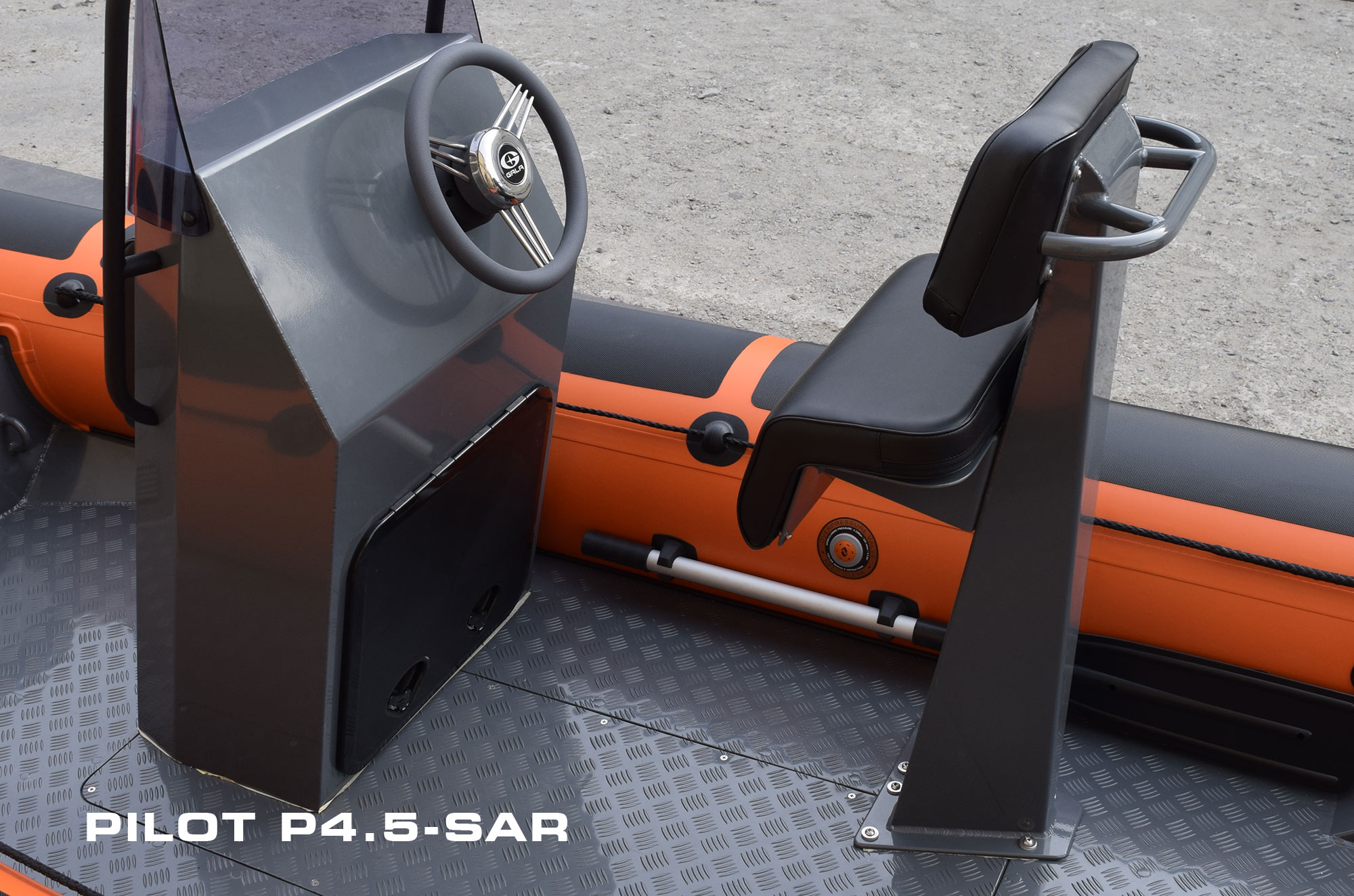

• Enough space for a person to lay down on stretcher for medical attention or transportation (SAR deck configuration)
• PRO decking with embossed antiskid surface QUINTET
• TITAN PASSIVATED and POWDER COATED reinforced welded aluminum hull with welded keel guard
• GALA-TABS hull extensions for superior performance
• Commercial grade inflatable tube made of VALMEX(PVC), TPU Polyurethane or HYPALON at your choice.

IMPORTANT!  Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.

IMPORTANT MESSAGE TO ALL GALAXY CUSTOMERS!

We are happy to provide a unique and helpful service to each GALAXY customer: TO MAKE YOU SURE THAT THE BOAT YOU WANT TO ORDER IS EXACTLY WHAT YOU NEED, WE CREATE A 3-D VIZUALIZATION FOR EVERY SINGLE BOAT WITH ALL OPTIONS CHOOSEN FROM A HUGE VARIERY OF THEM , AVAILABLE FROM GALAXY! CONTACT US AND ASK FOR IT!

5 reasons to choose GALAXY

TRUE PRO GRADE DESIGN

GALAXY is TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.

FAST PRODUCTION & DELIVERY

We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!

100% CUSTOMIZED FOR EVERY BOAT

why GALAXY - customizable

We have a number of base boats with huge amount of optional equipment to choose from.

VARIETY OF DECK EQUIPMENT

GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!

3-D VISUALIZATION FOR EVERY ORDER

We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!

VIDEO

COMING SOON

GALLERY

Features

STANDARD FEATURES:

  • Aluminum PRO hull with welded keel guard, coated
  • Embossed antiskid QUINTET PRO decking
  • GALA -TABS performance transom extensions
  • Overpressure valves
  • Set of foot pump, 2 paddles and repair/service kit

INFLATABLE TUBE OPTIONS:

  • PVC inflatable tube with rub rail, protection pads, lifeline, handles (Default)
  • HYPALON inflatable tube with rub rail, protection pads, lifeline, handles
  • TPU Polyurethane tube with rub rail, protection pads, lifeline, handles

STEERING CONSOLES:

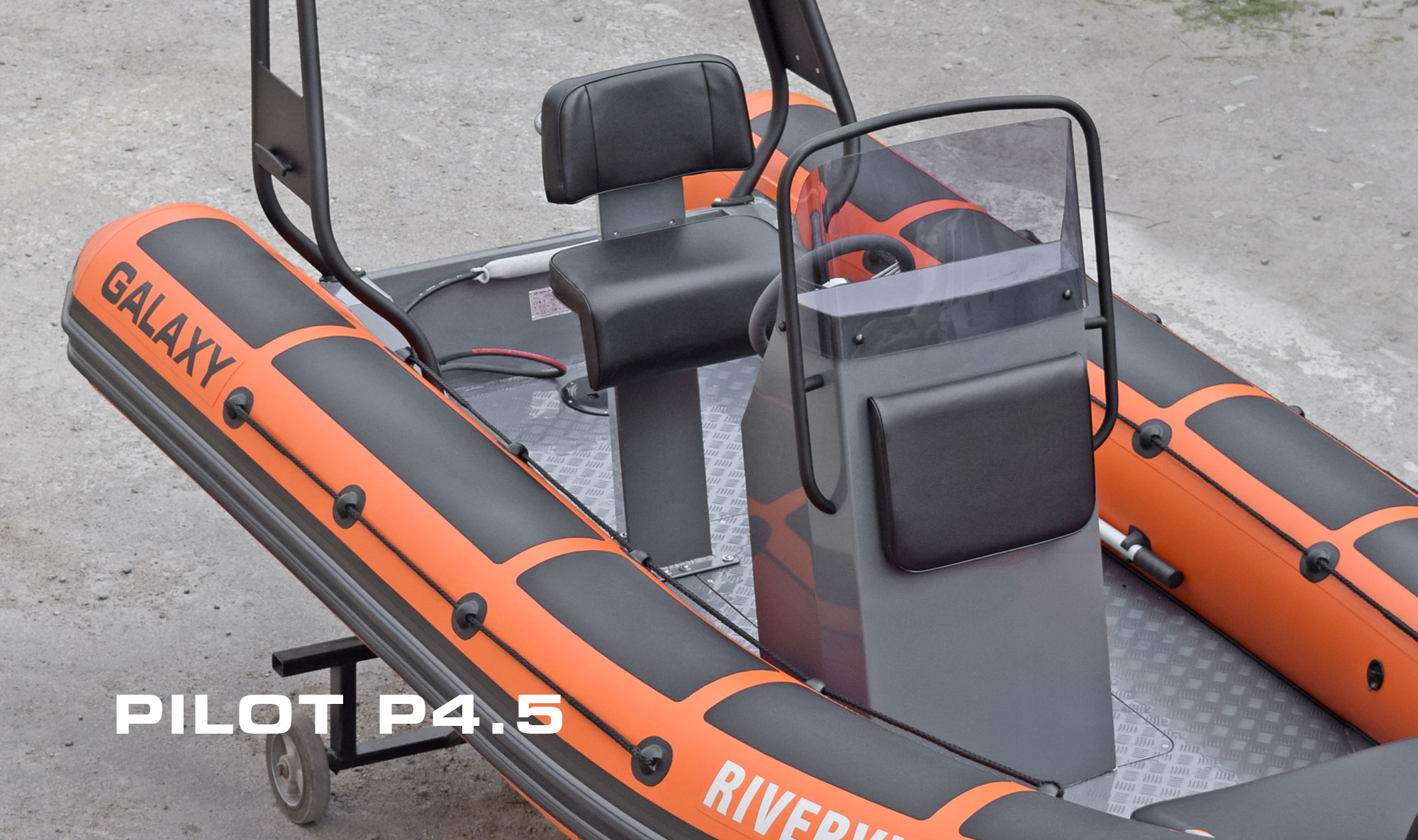

  • Steering console C-04P with front seat  (Default)
  • Steering console C-09

SEATING:

  • Seat S-04P, folding (Default)
  • Jockey seats S-10
  • Jockey seats S-10H with front handrail
  • Bolster seat S12 , deck mount, with back rest

IMPORTANT!  Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.

OPTIONAL EQUIPMENT:

  • Steering wheel GALA Deluxe GRAY
  • Mechanical steering system with steering cable
  • Hydraulic steering system
  • Electric power package
  • Fuel system with 81L built-in tank, send, deck fill, tubing, wiring
  • Fuel gauge

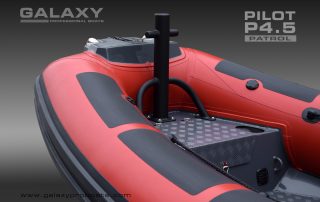

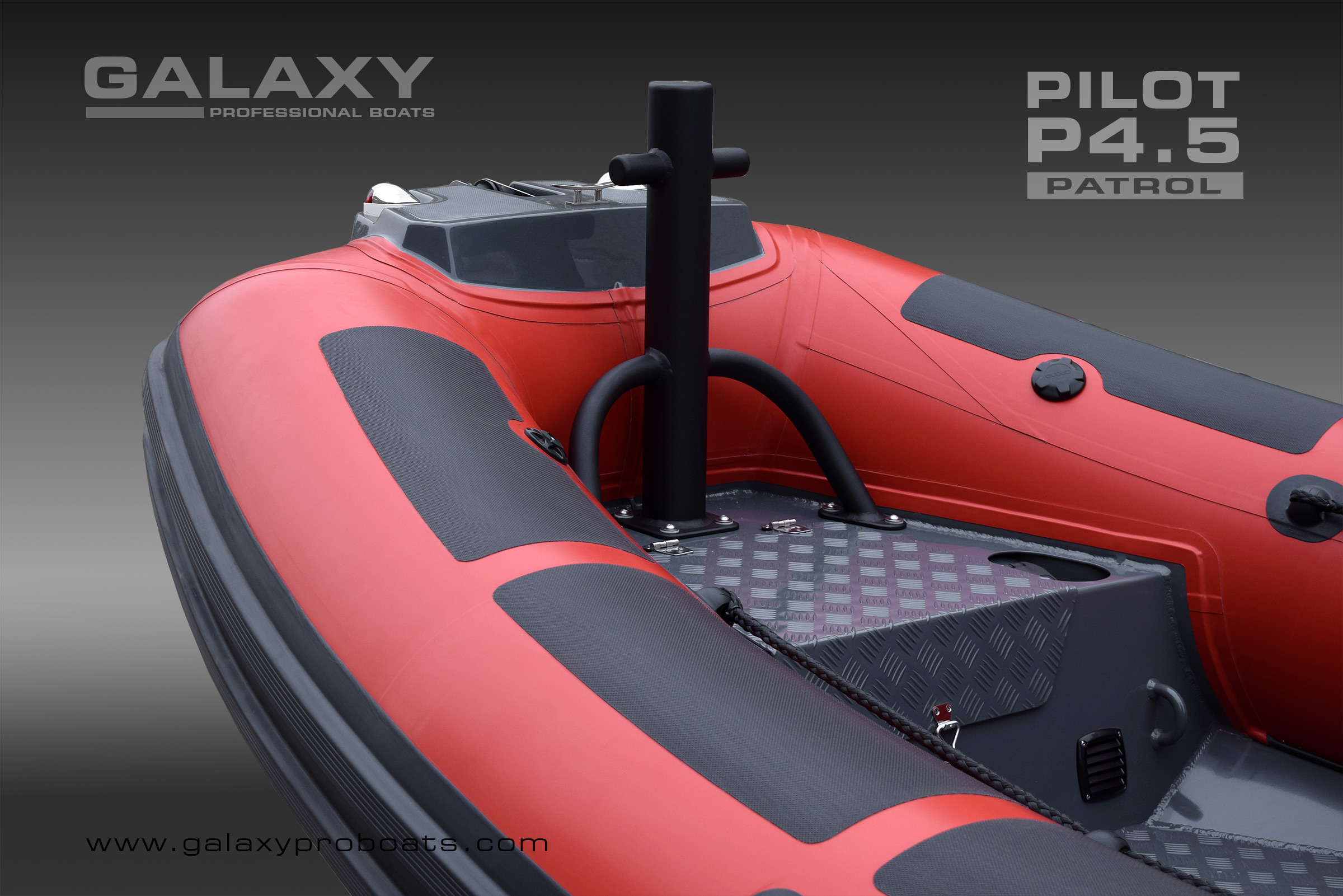

  • Bow step plate with anchor roller, fiberglass
  • T-top with wide equipment mounting plate
  • Engine guard frame
  • Steering console tower with mounting plate
  • Bow towing bollard
  • Rear towing arch
  • Diving bottles storage rack for 4 bottles
  • Diving bottles storage rack for 6 bottles
  • Bow locker soft cushion
  • Bow step plate cushion
  • Overall cover
  • Custom lettering on T-top
  • Custom lettering on both sides of inflatable tube
GALAXY steering console C-04P
GALAXY steering console C-04P
GALAXY steering console C-04P
GALAXY steering console C-04P
GALAXY steering console C-04P
GALAXY steering console C-04P

Specifications

Models

PILOT – P4.5

Length overall 450 cm / 14’9″
Length inside 335 cm / 11′ 8″
Width overall 215 cm / 7’1″
Width inside 111 cm / 3’8″
Tube Diameter 52 cm / 20″
Bare boat weight 280 kg / 616 lbs
Loading capacity 800 kg / 1760 lbs
Passenger capacity 7
Number of chambers 5
Engine recommended 50 HP
Engine MAX 70 HP
Engine weight MAX 130 kg / 286 lbs
Engine shaft length 20″
Aluminum hull thickness 4 mm / 5/32″
Boat design category C

All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%

Tube and decor colors

BLACK / GRAY

Black tube
with  gray decor.
Dark gray  hull.

(Default color)

ORANGE  / BLACK

Orange tube
with  black decor.
Dark gray hull.

CUSTOM COLOR
