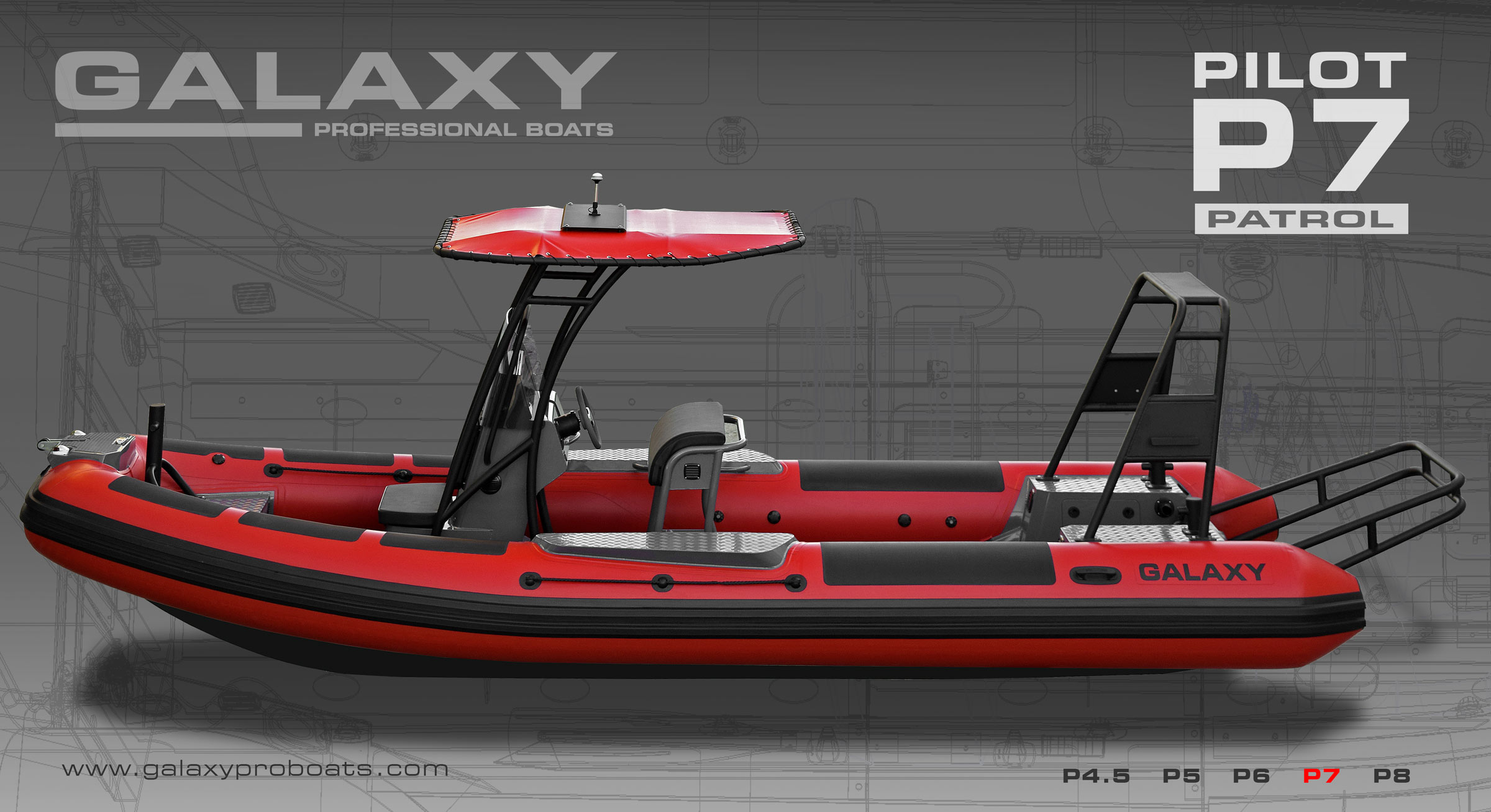

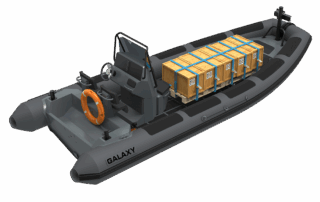

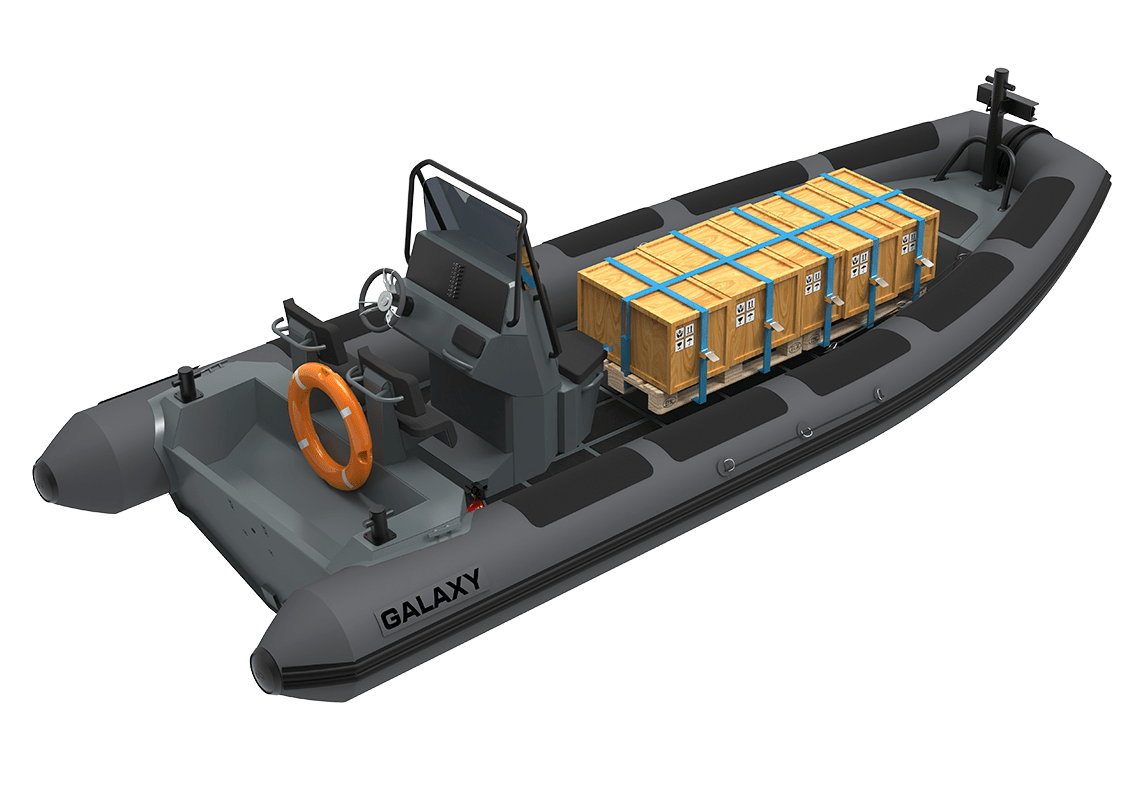

GALAXY Pilot – P7
BEST FOR:

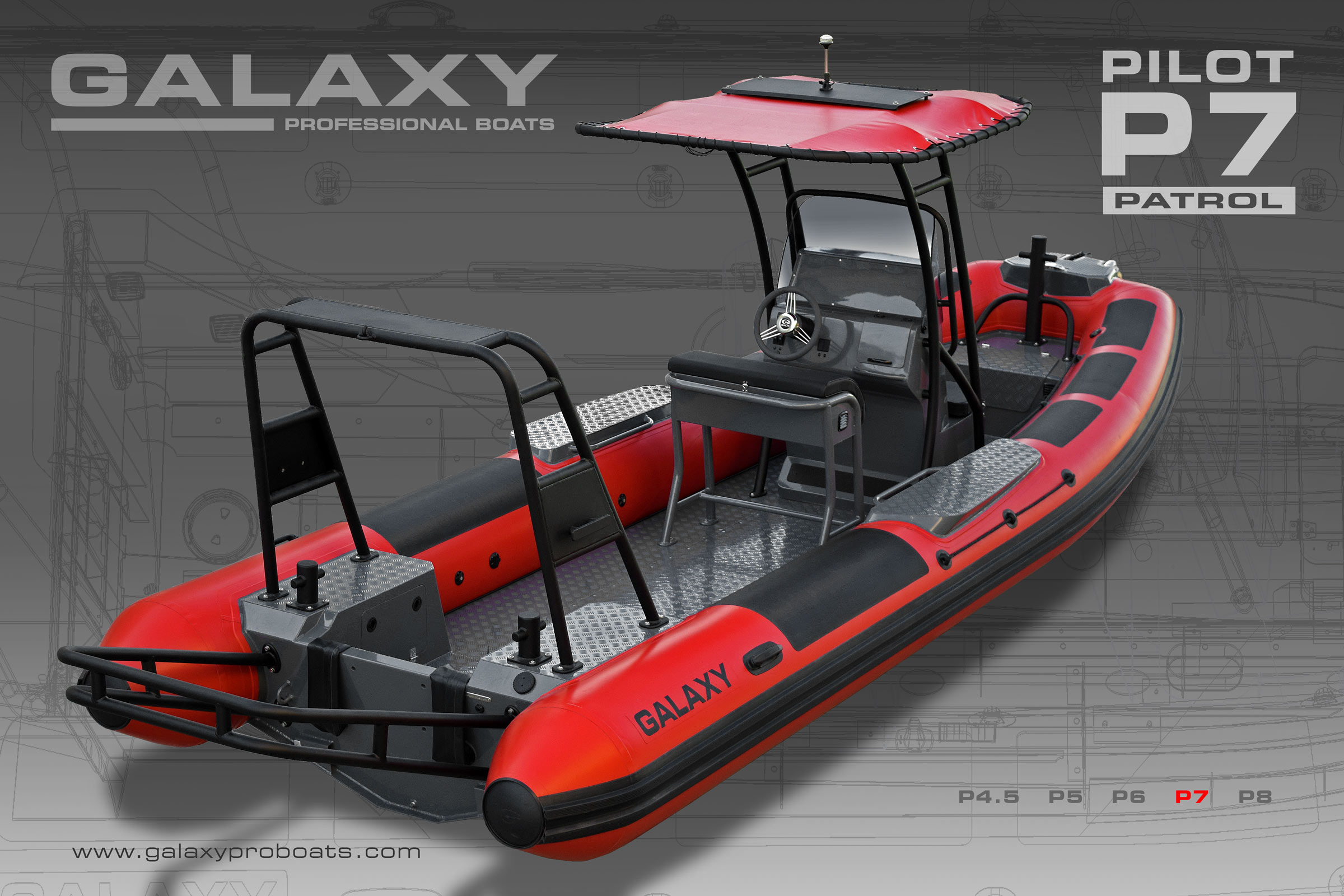

PILOT – P7
22’10” long, 300HP max
GALAXY – Pilot P7 models is our new model for professional use. Main applications for this boat are:

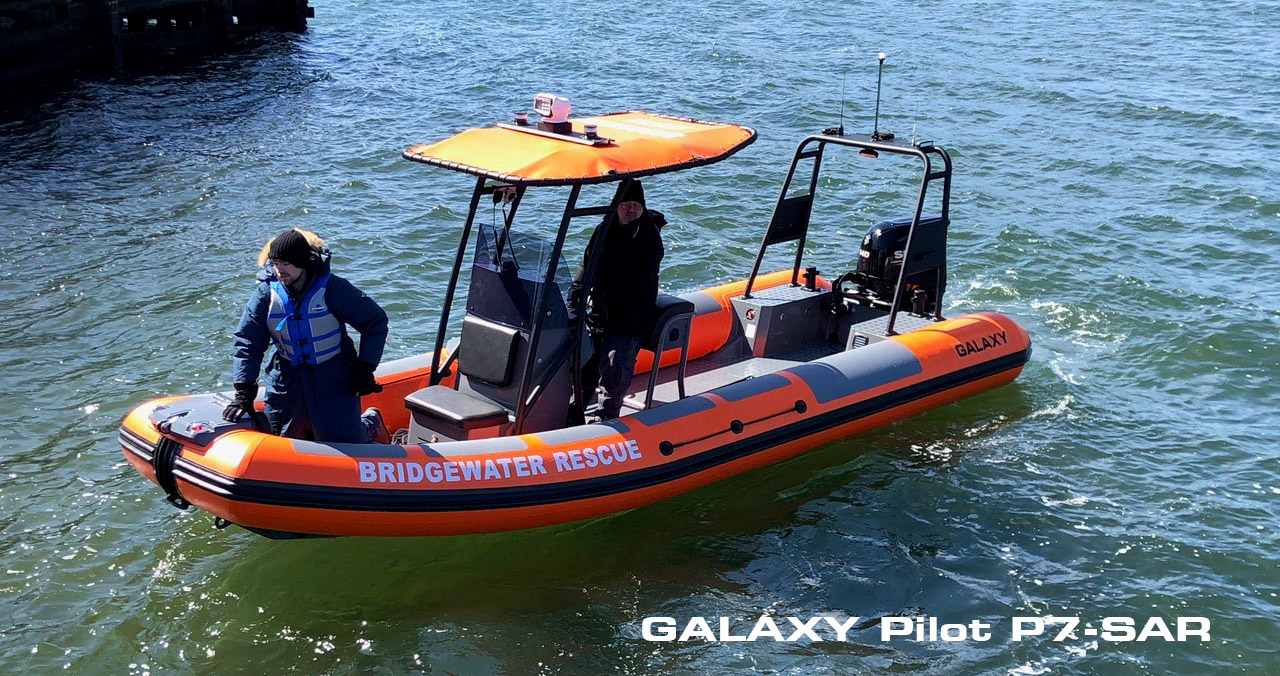

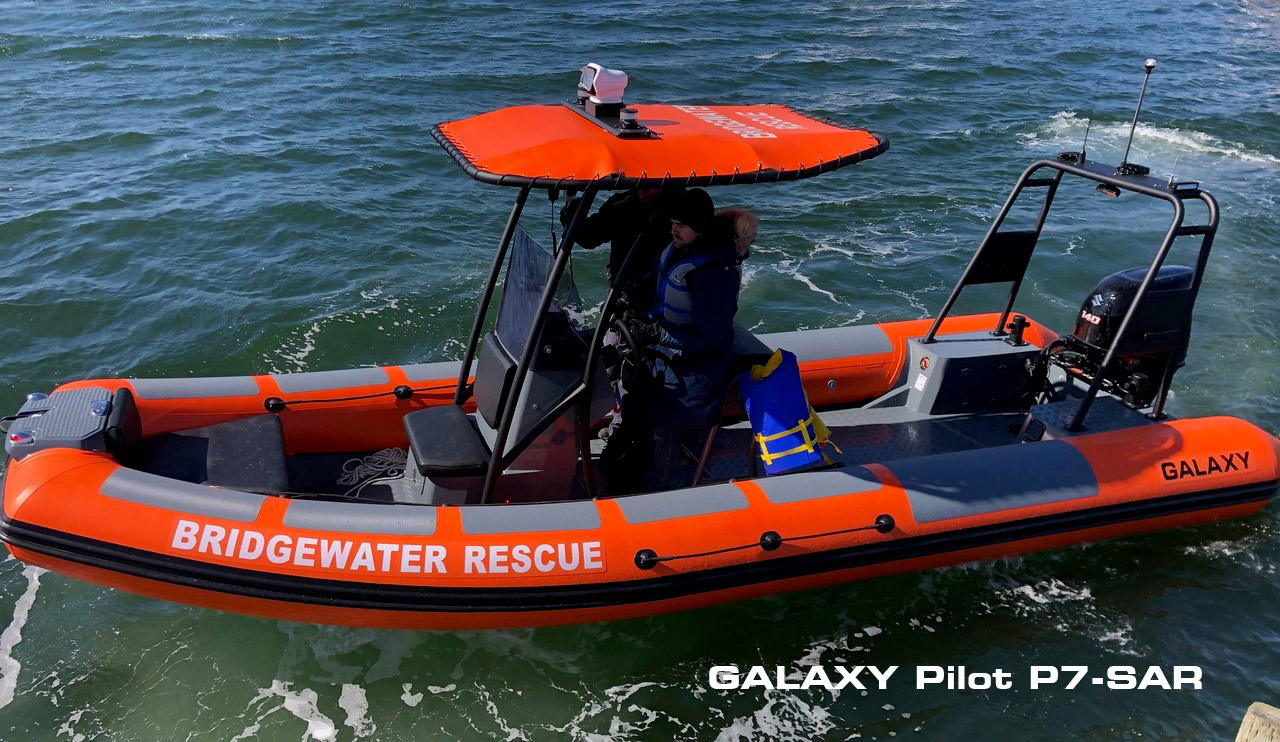

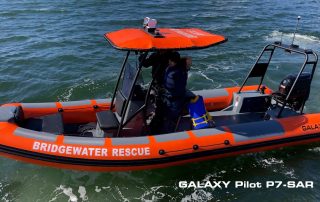

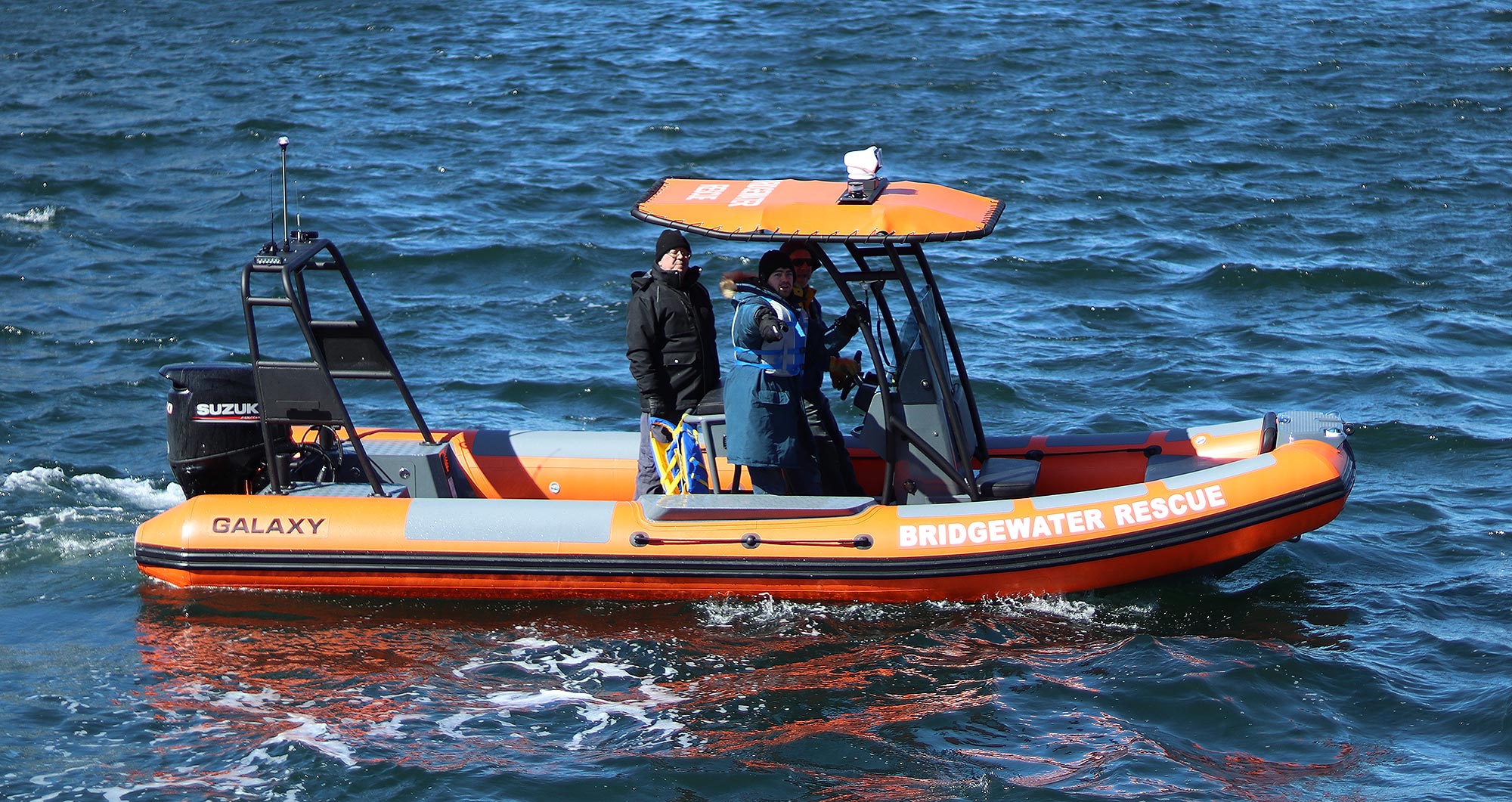

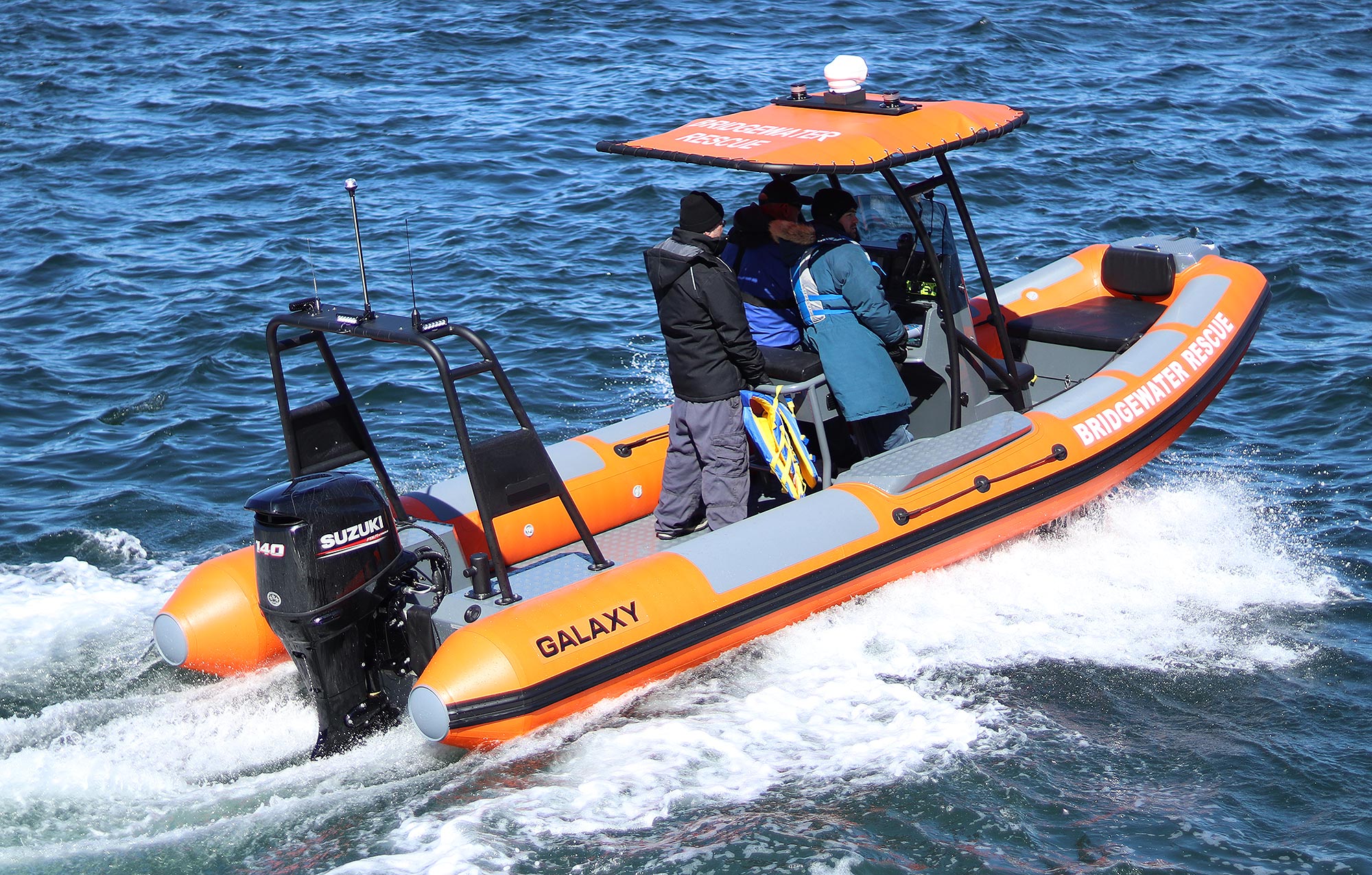

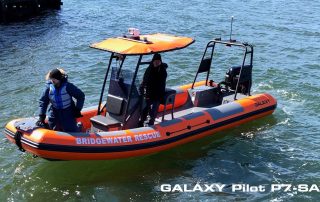

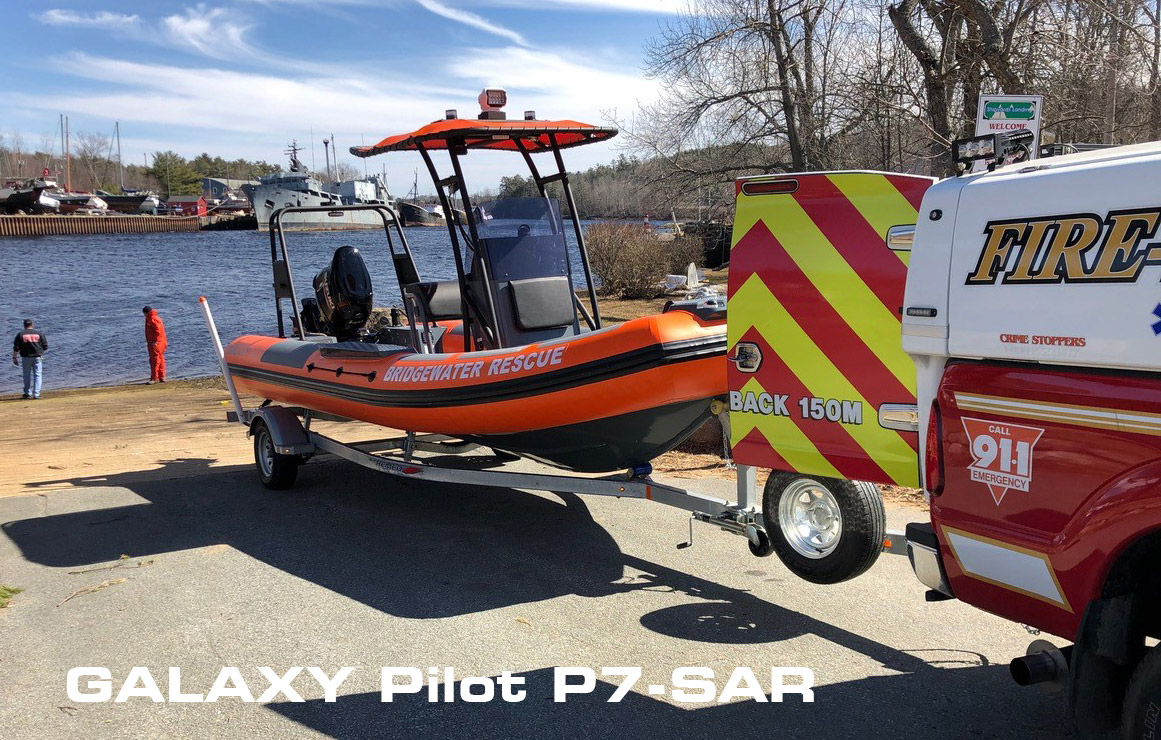

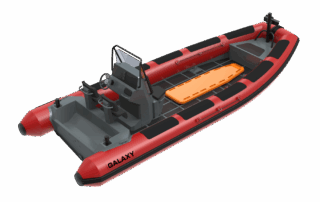

• Rescue boats for Fire Departments and Rescue

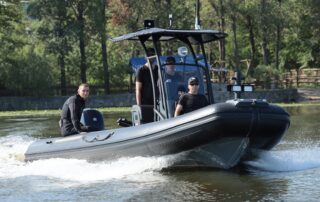

• Law enforcement boat for inland and coastal waters
• General purpose work or commercial use
The main and most attractive features and selling points of these model are:

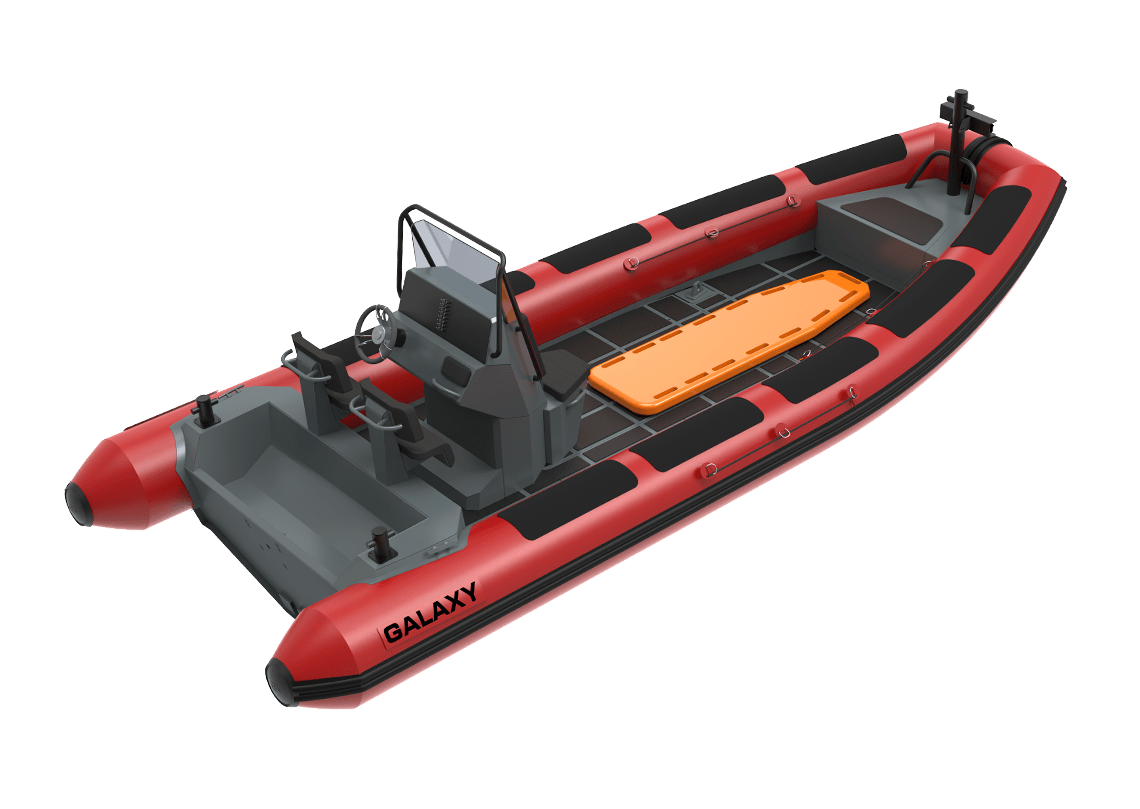

• Impressive free deck space, allowing one person safely laying down along the deck for rescue and paramedics,
• A large number of different consoles, seats and boat equipment to customize the cockpit arrangement and match your needs exactly,
• Outstanding service with 3D CAD modelling for each single customer to visualize the boat you need with all features and equipment,
• High level of naval engineering and European production quality with highly optimized weight and seaworthiness for quick response and task performance in tough conditions.
• Very short lead time from the project to finally delivered boat.
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
IMPORTANT MESSAGE TO ALL GALAXY CUSTOMERS!
We are happy to provide a unique and helpful service to each GALAXY customer: TO MAKE YOU SURE THAT THE BOAT YOU WANT TO ORDER IS EXACTLY WHAT YOU NEED, WE CREATE A 3-D VIZUALIZATION FOR EVERY SINGLE BOAT WITH ALL OPTIONS CHOOSEN FROM A HUGE VARIERY OF THEM , AVAILABLE FROM GALAXY! CONTACT US AND ASK FOR IT!
5 reasons to choose GALAXY
TRUE PRO GRADE DESIGN
GALAXY is TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.
FAST PRODUCTION & DELIVERY
We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!
100% CUSTOMIZED
We have a number of base boats with huge amount of optional equipment to choose from.
VARIETY OF DECK EQUIPMENT
GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!
3-D VISUALIZATION

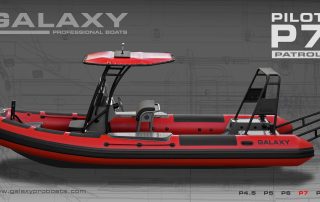

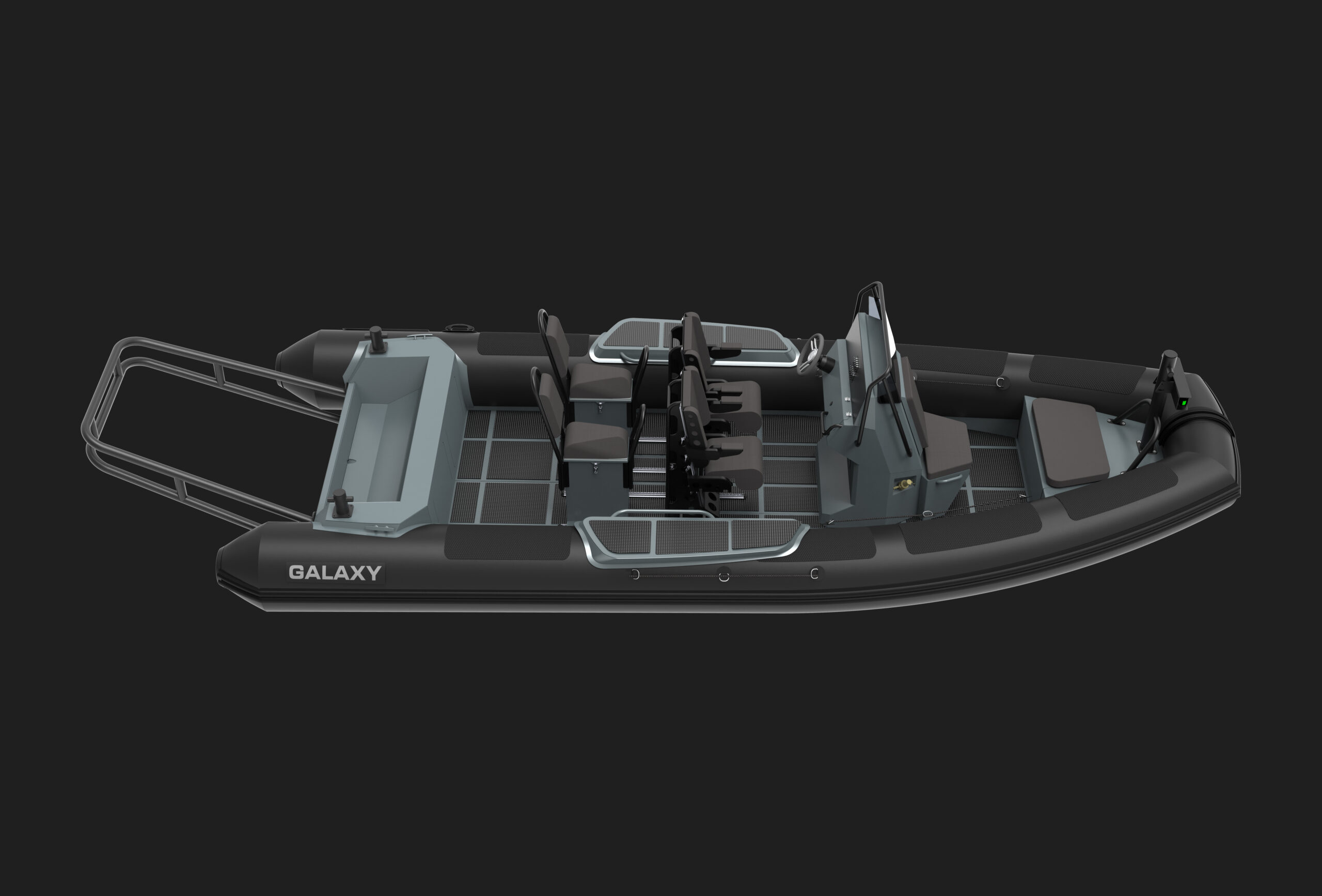

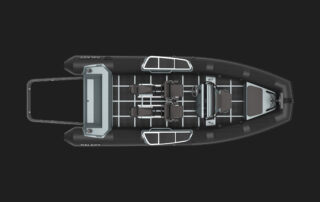

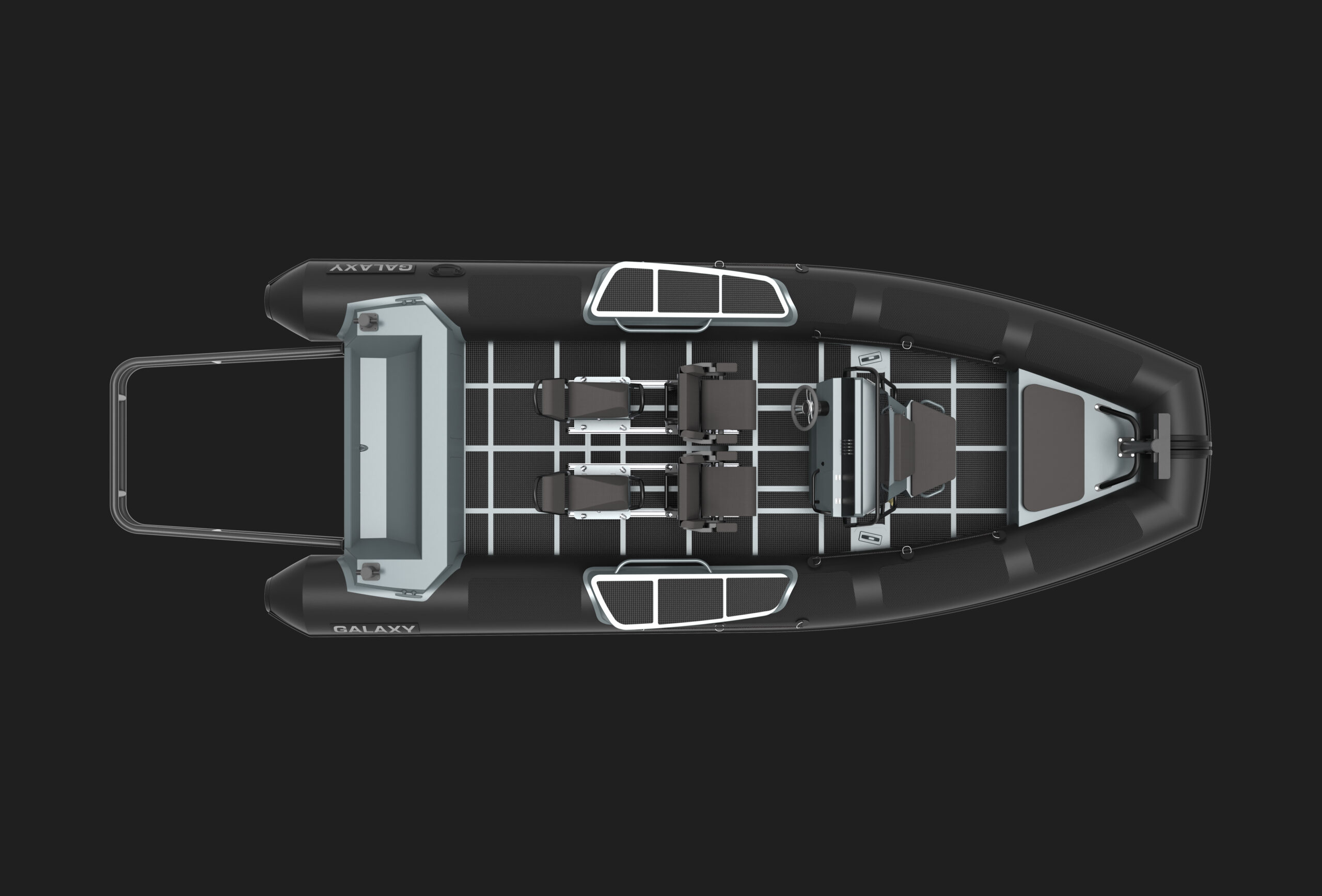

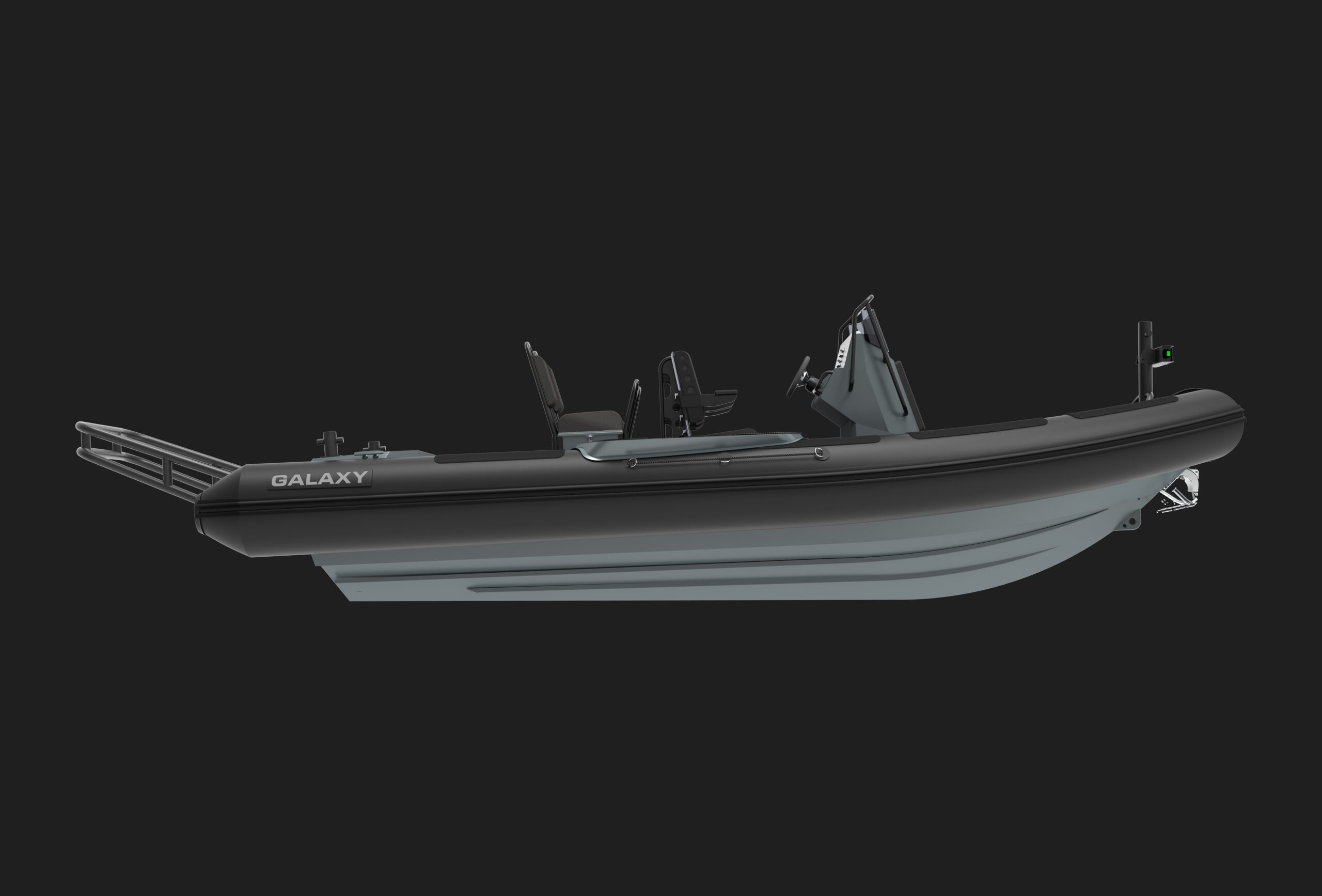

We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!
VIDEO
(COMING SOON)
GALLERY
Features
STANDARD EQUIPMENT:
- Aluminum PRO hull with welded keel guard, coated

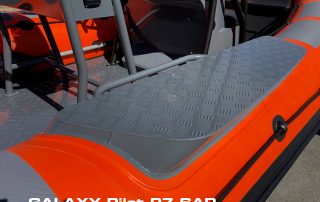

- Embossed antiskid QUINTET PRO decking
- GALA-TABS performance transom extensions
- Overpressure valves
- Set of foot pump, 2 paddles and repair/service kit
INFLATABLE TUBE OPTIONS:
- PVC inflatable tube with rub rail, protection pads, lifeline, handles (Default)
- HYPALON inflatable tube with rub rail, protection pads, lifeline, handles
- TPU Polyurethane tube with rub rail, protection pads, lifeline, handles

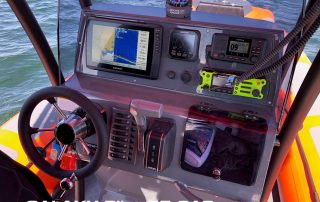

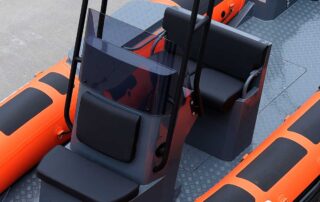

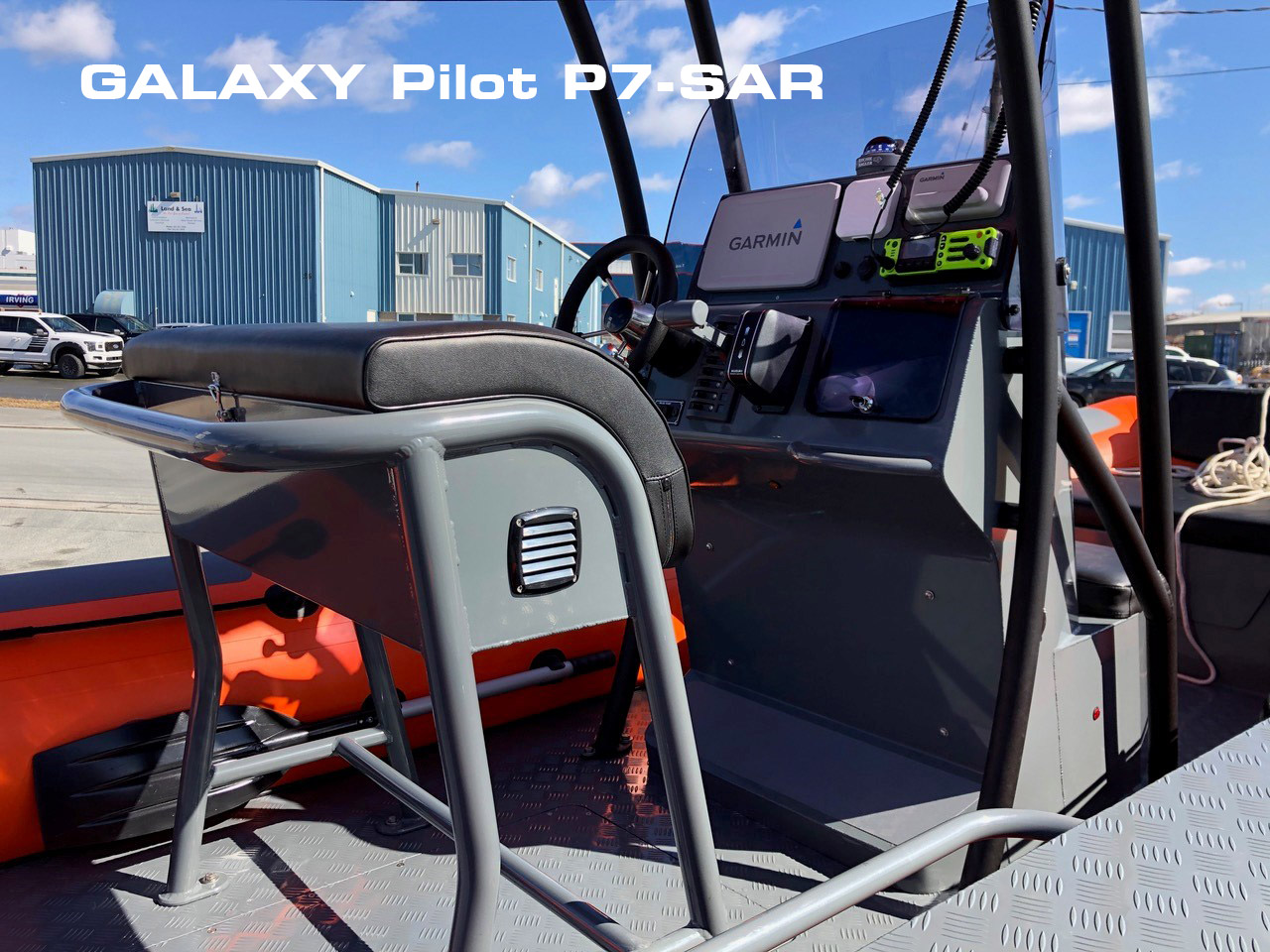

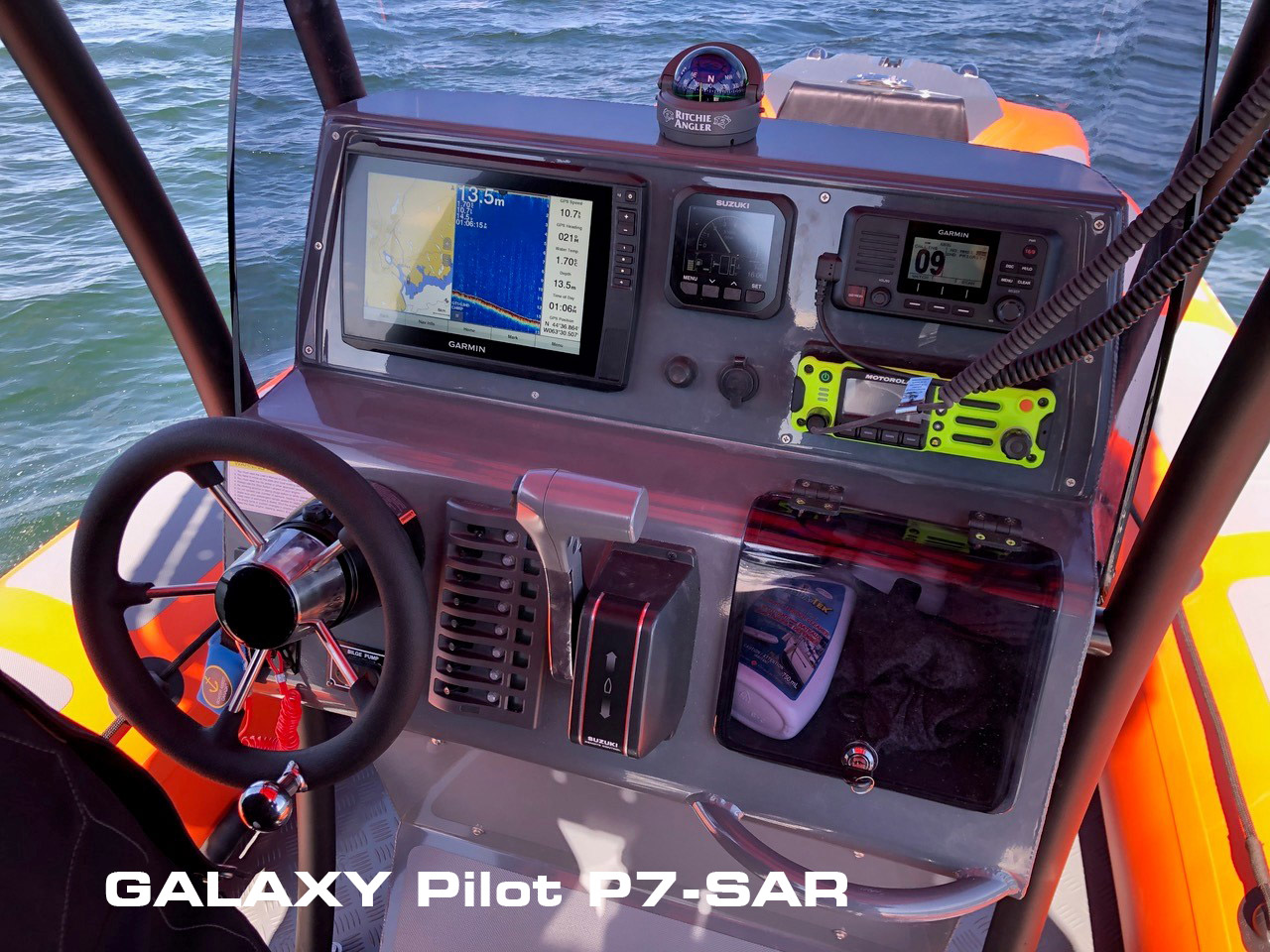

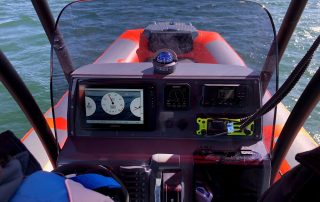

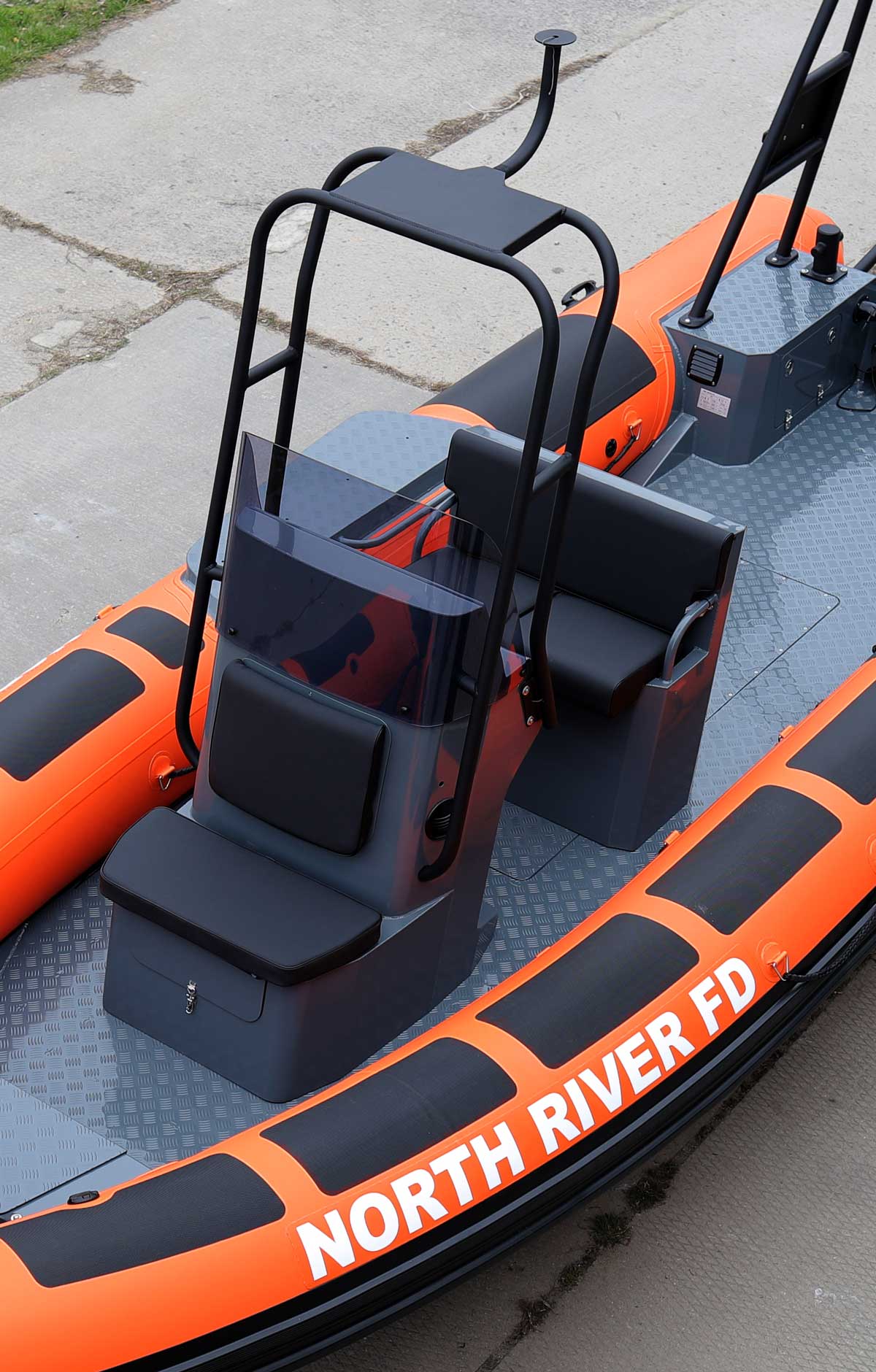

STEERING CONSOLES:

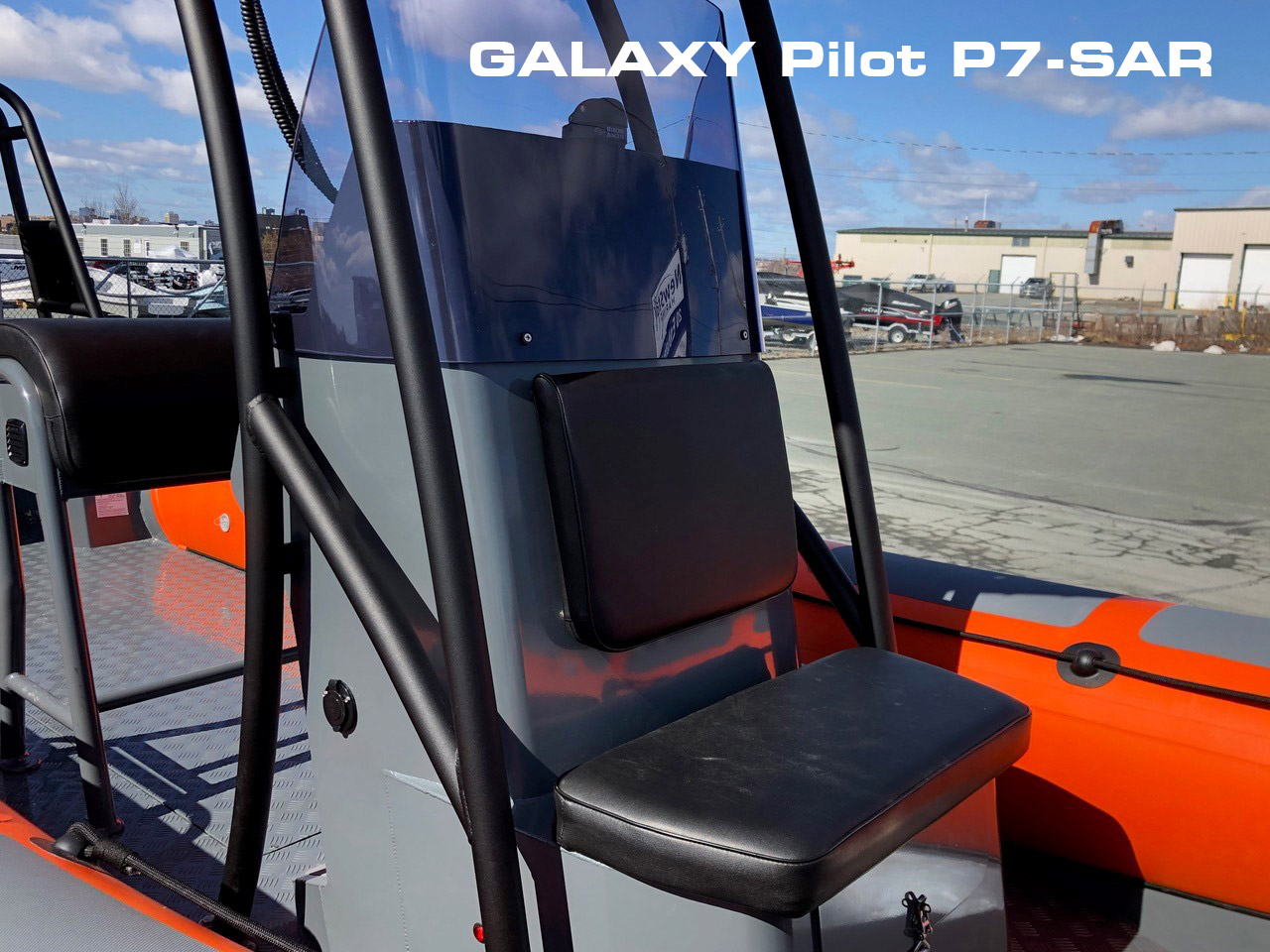

- Steering console C-08 (Default)

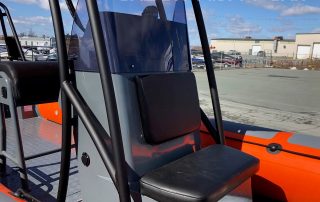

- Steering console C-24 with front seat
SEATING:
- Driver’s bolster seat S-09 (Default)
- Driver’s bolster seat S-20
- Driver’s seat S-25
- Driver’s jockey seats S-10H with front handrail
- Driver’s jockey seat S-10
- Bolster seat S11 , deck mount, with back rest
- Seat S-19, triple passenger wide seat
- Double-side seat S14
- Double-side seat S15
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
OPTIONAL EQUIPMENT:

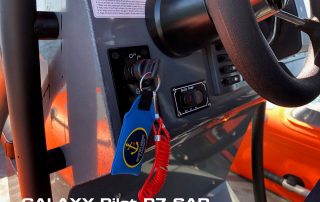

- Steering wheel GALAXY Black
- Hydraulic steering system
- Electric power package
- Fuel system with built in tank (P7: 300L) and sender
- Fuel gauge
- Bow step plate, aluminum

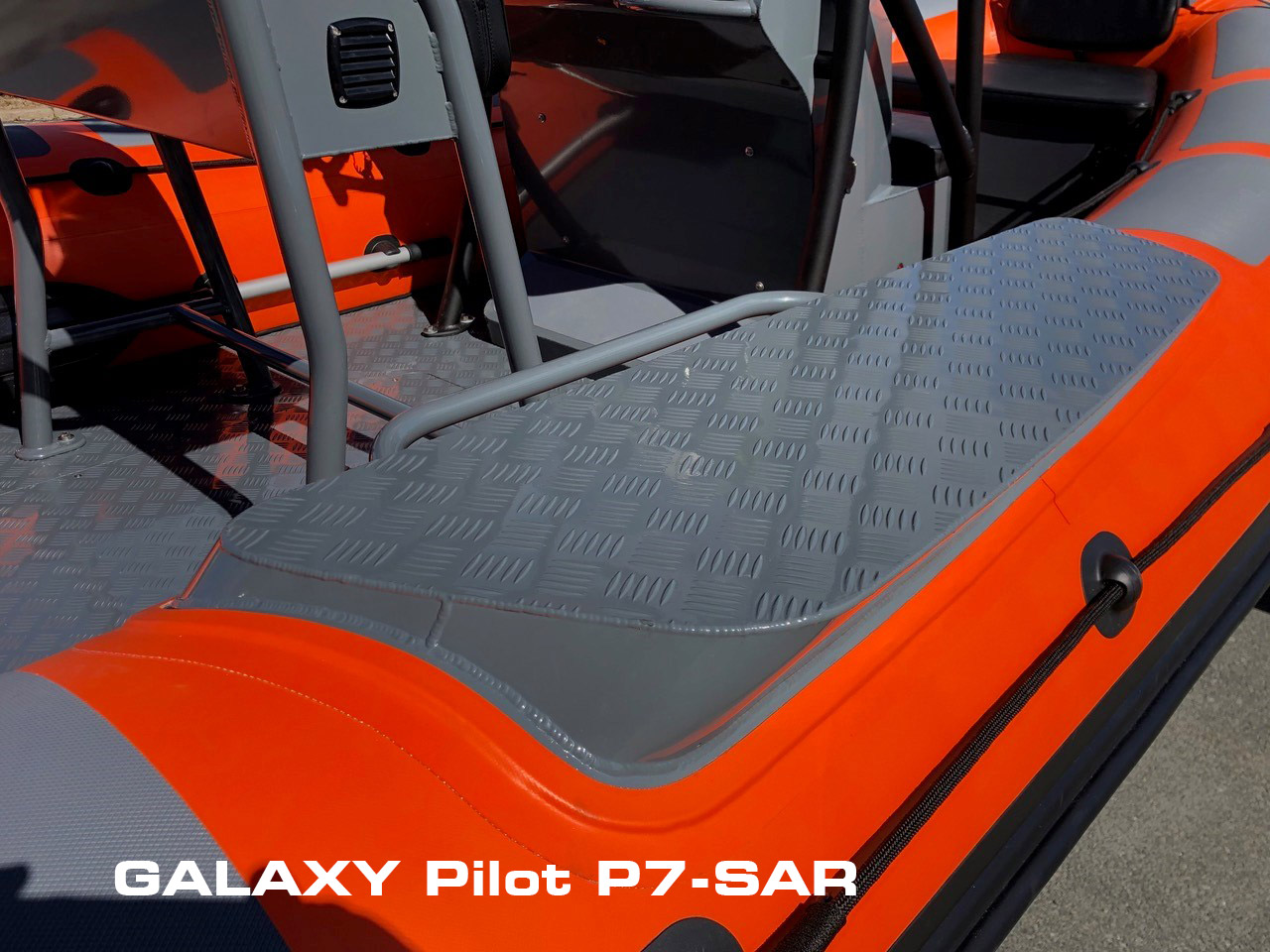

- Two aluminum side panels with QUINTET decking and handrails
- Side board safety railings

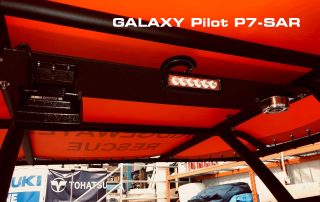

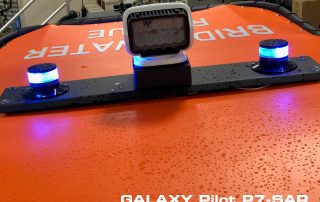

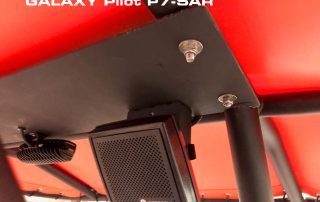

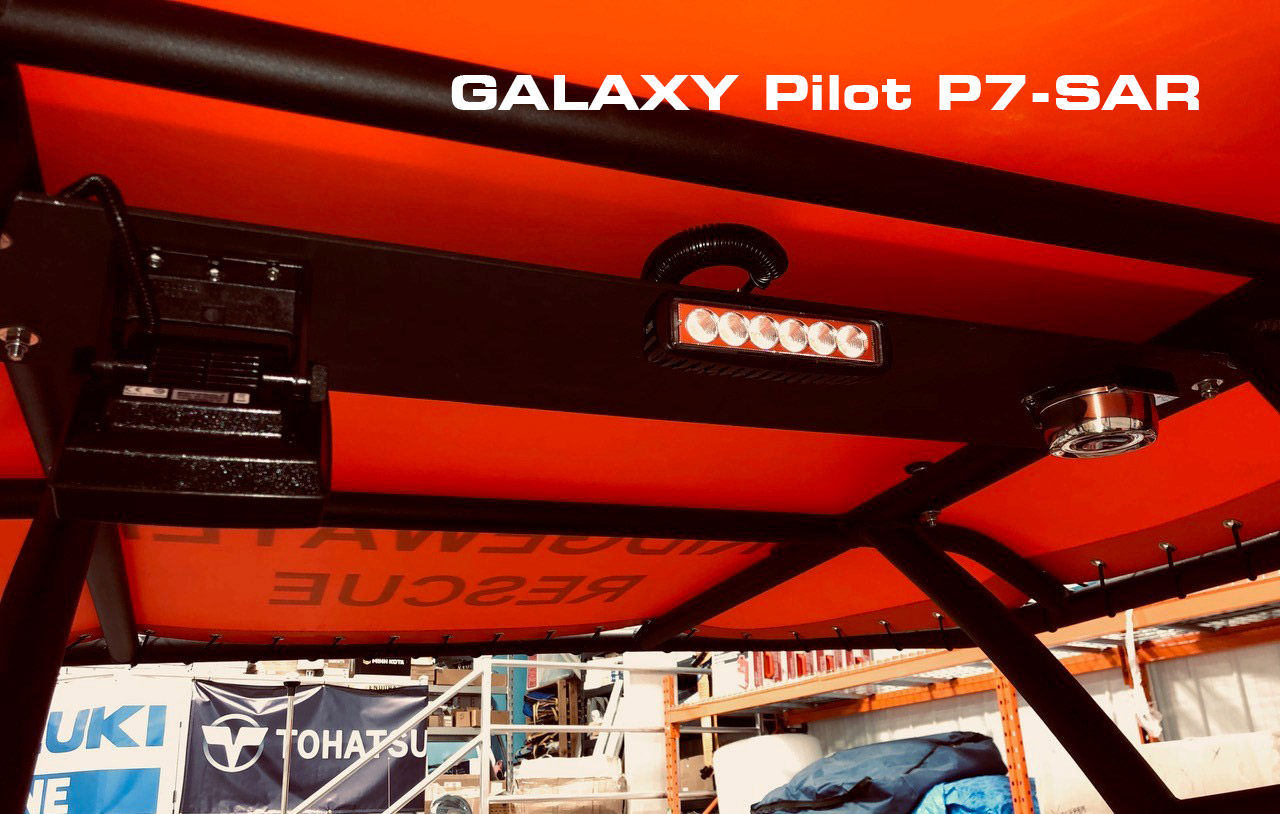

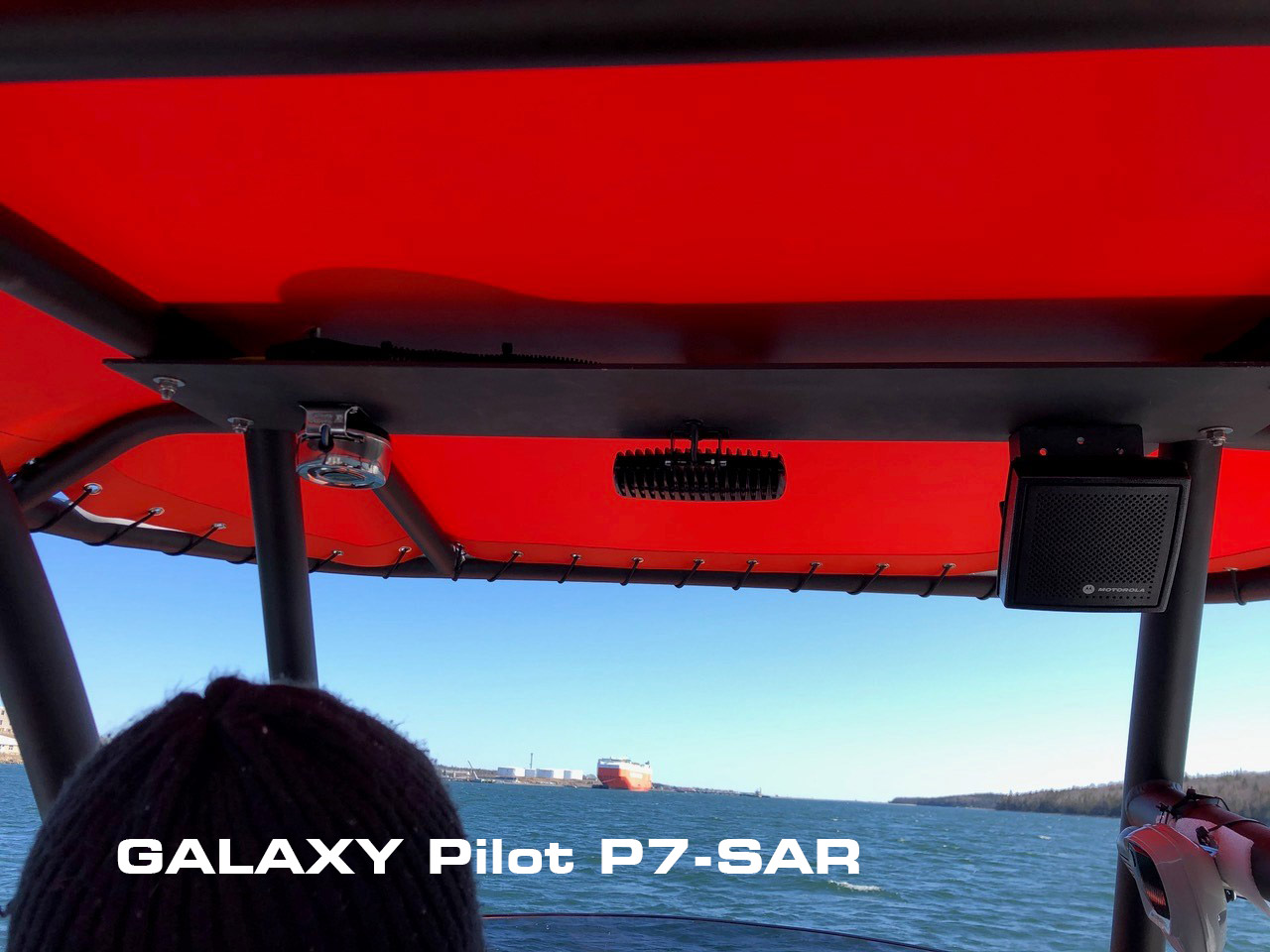

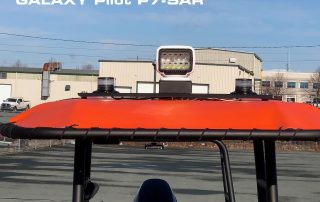

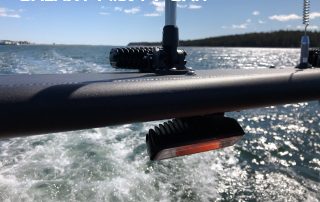

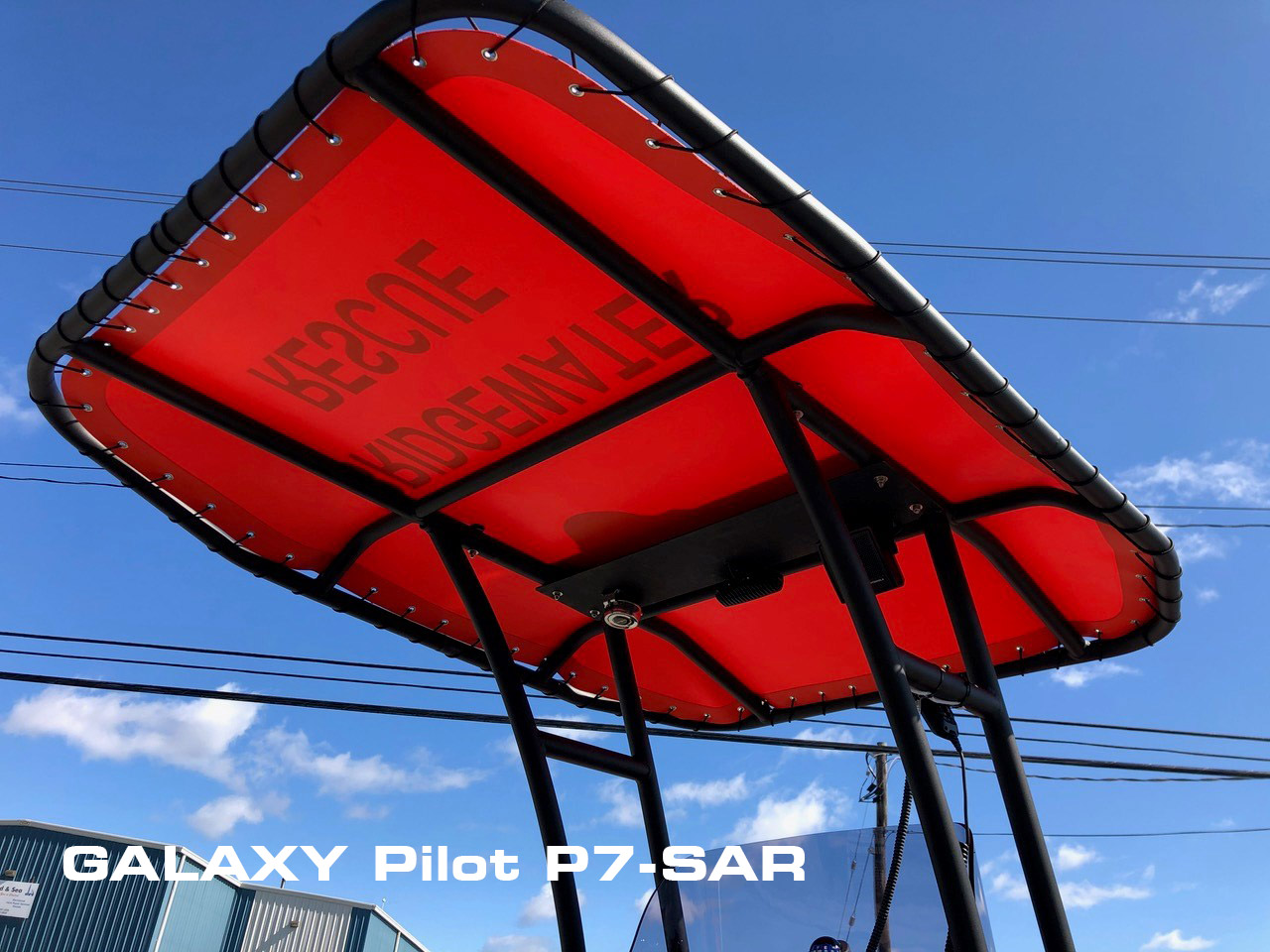

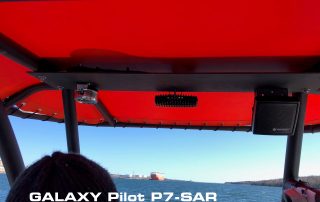

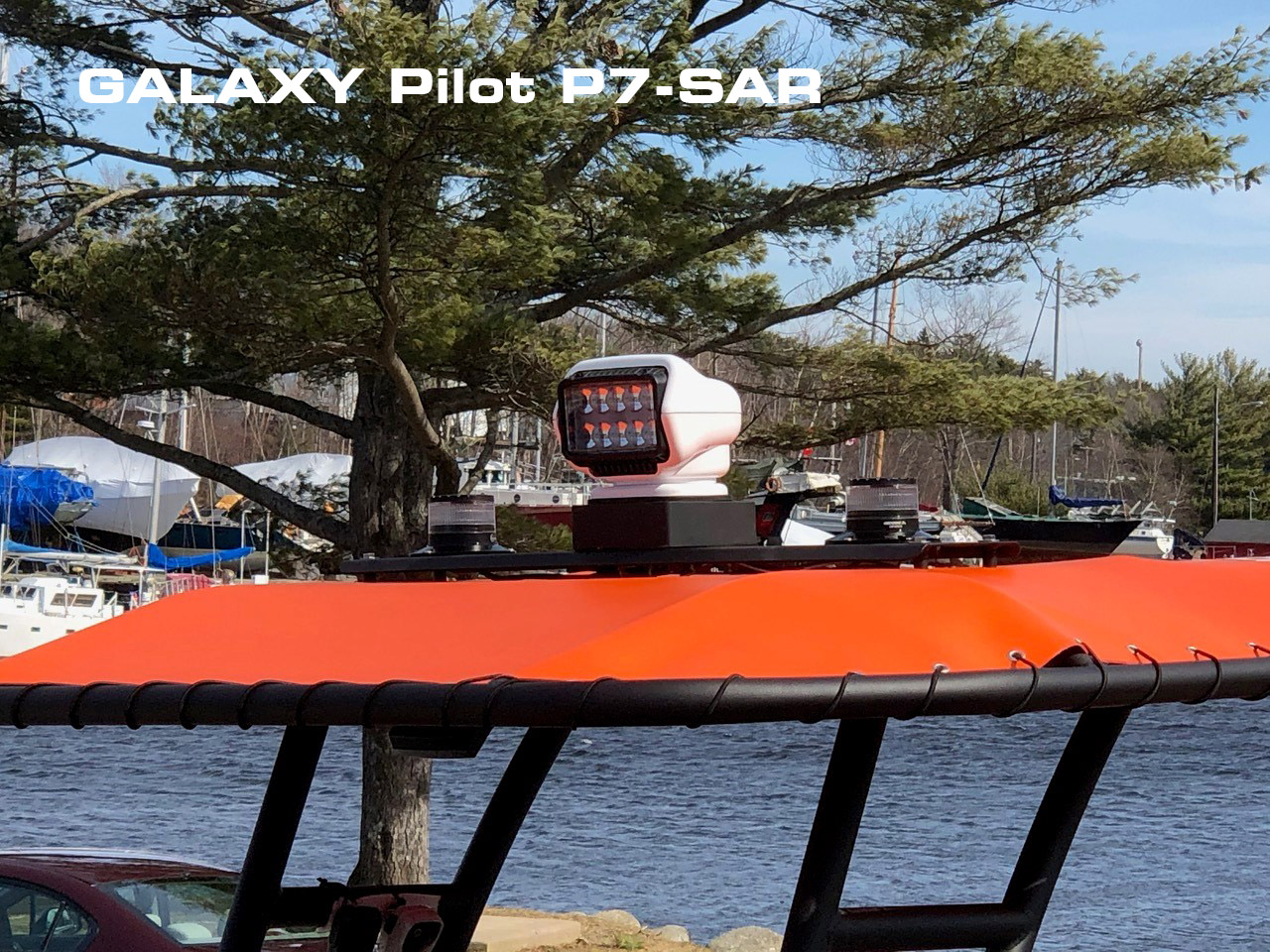

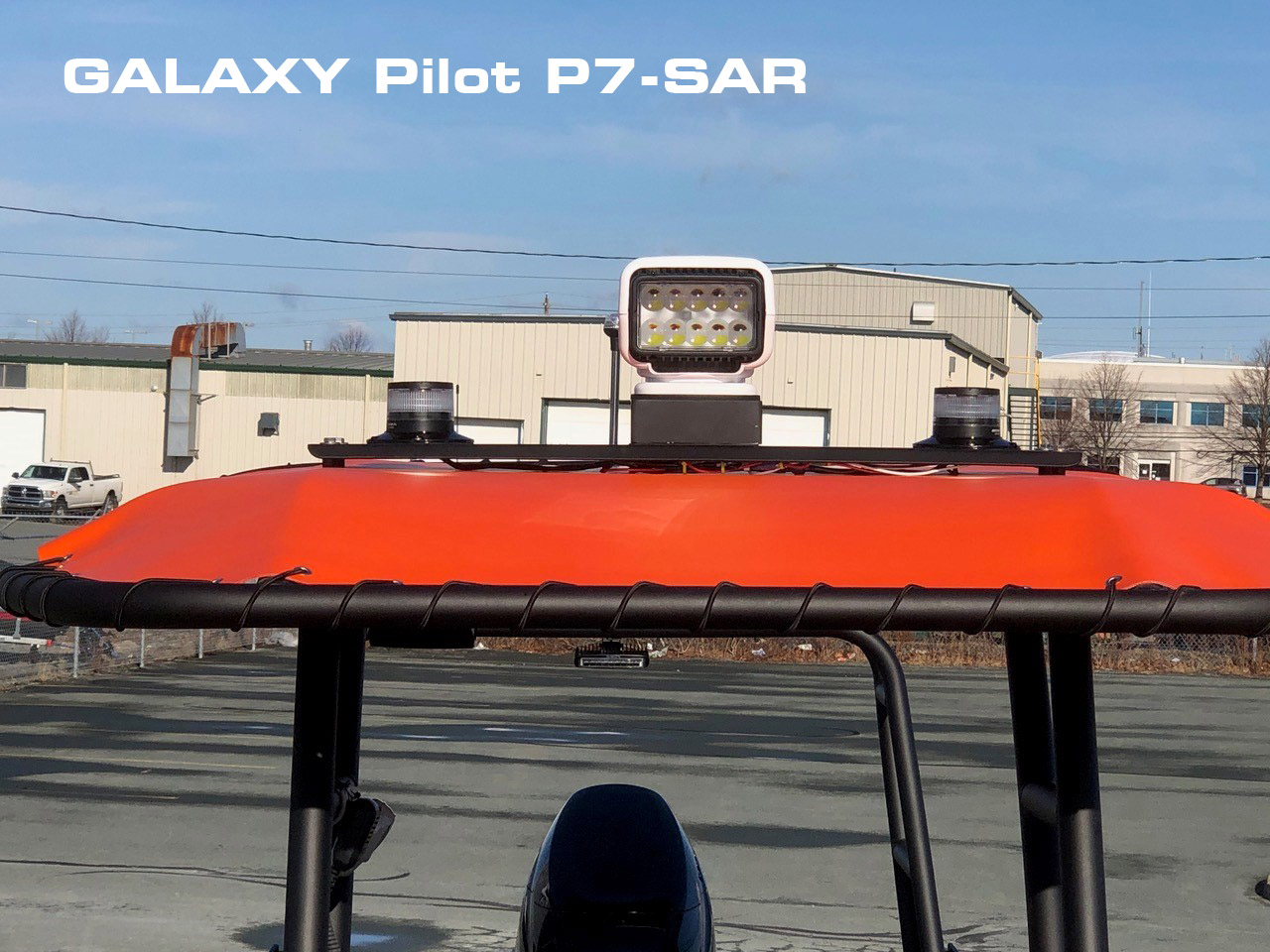

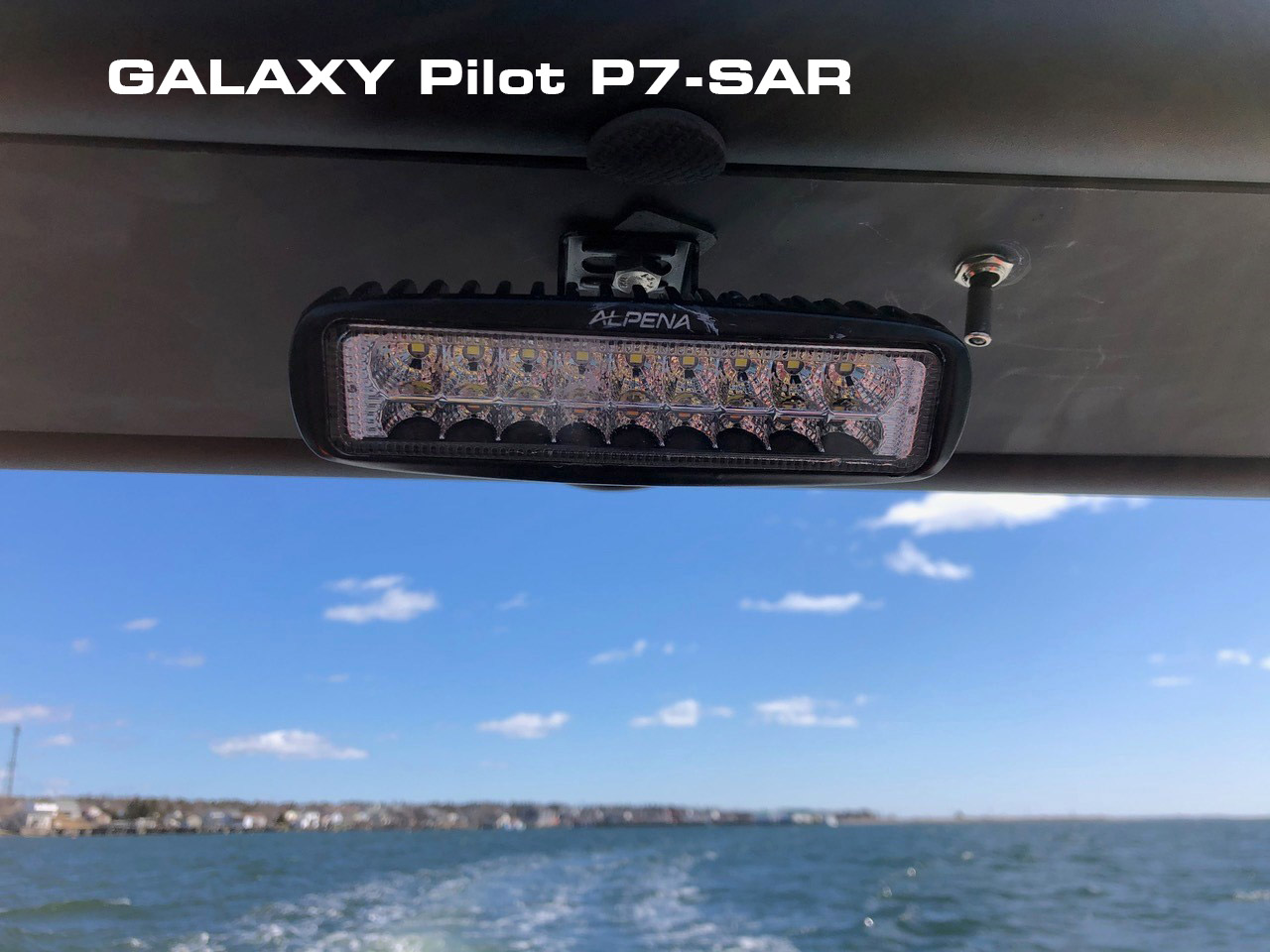

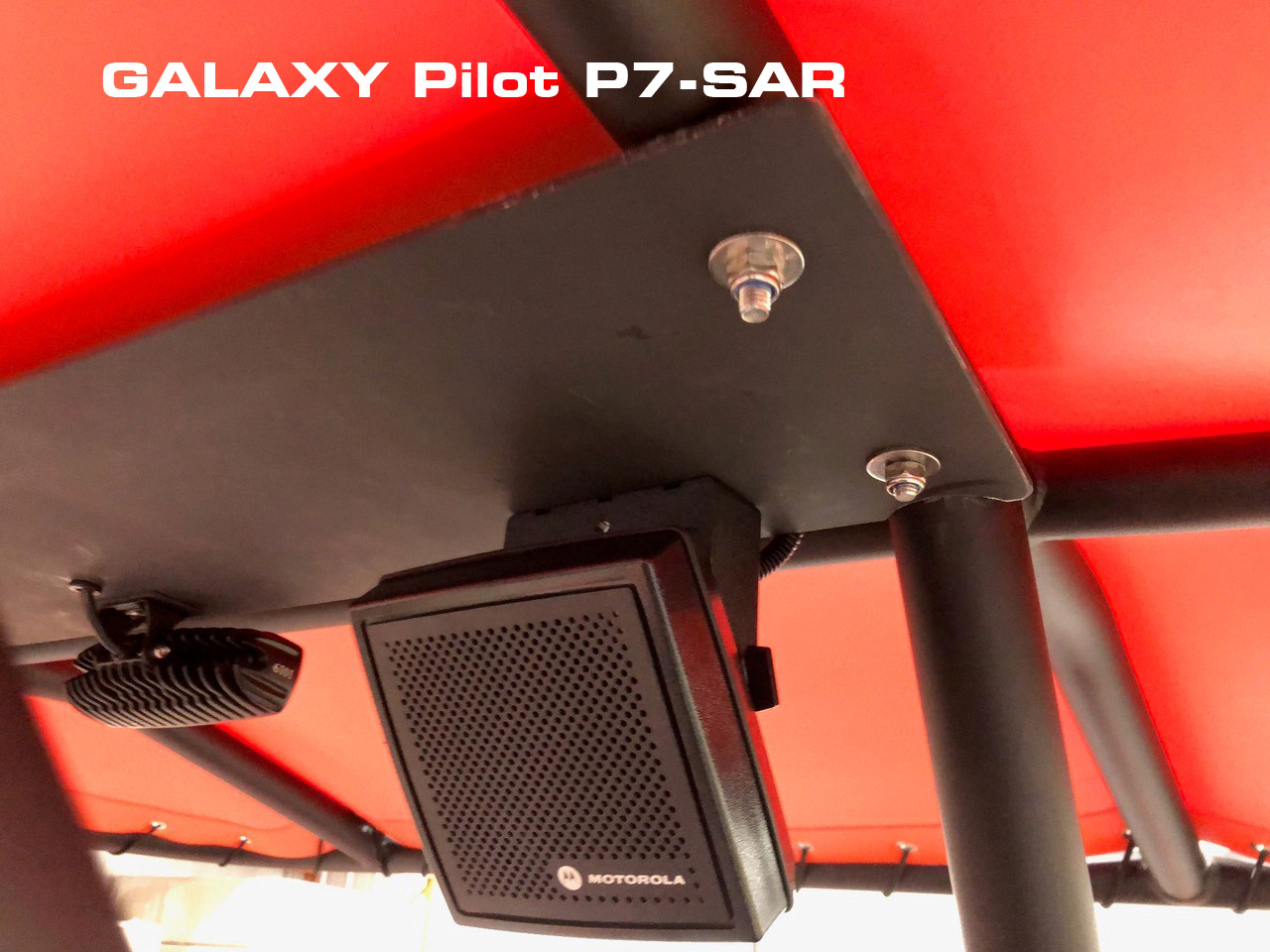

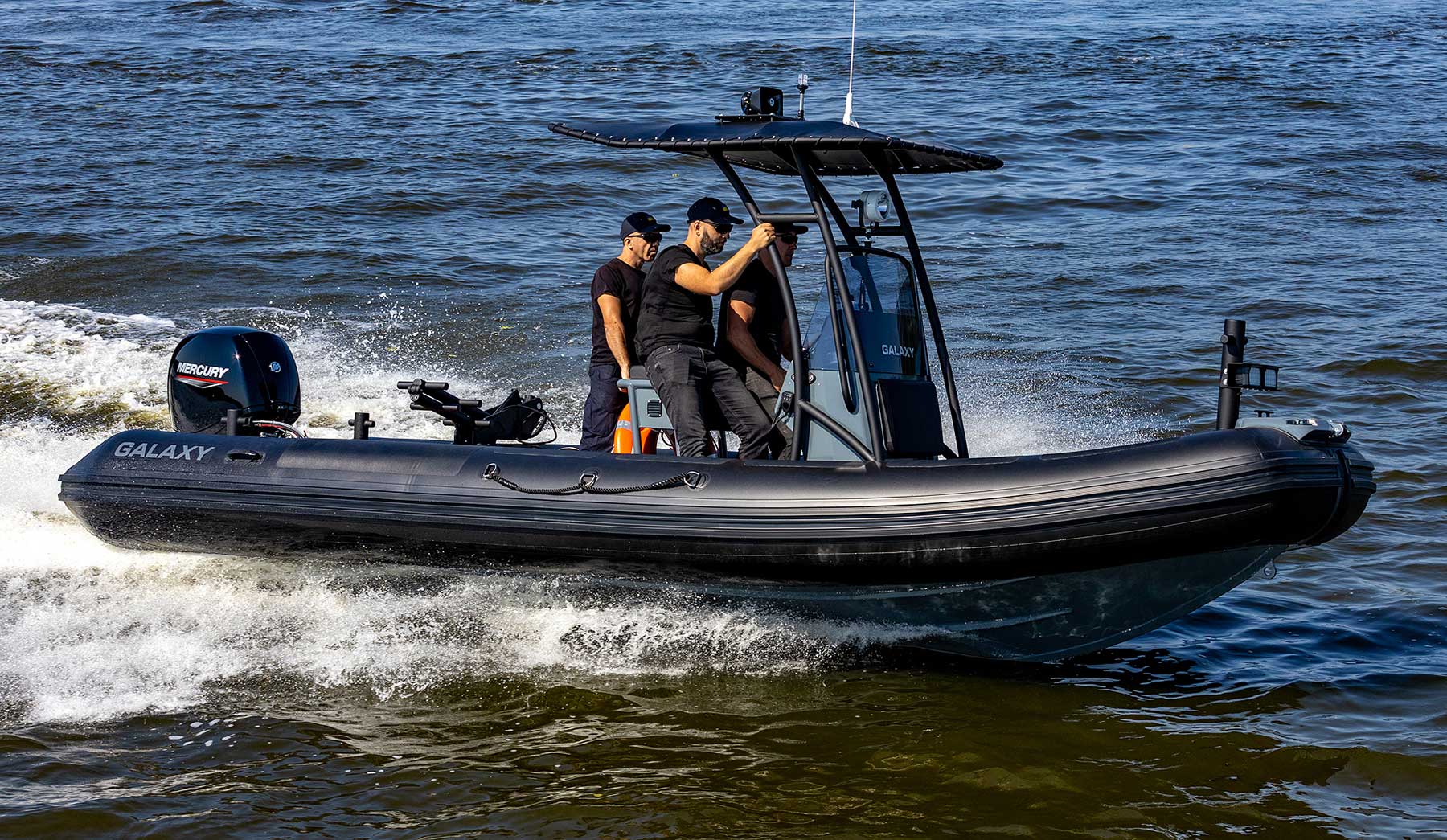

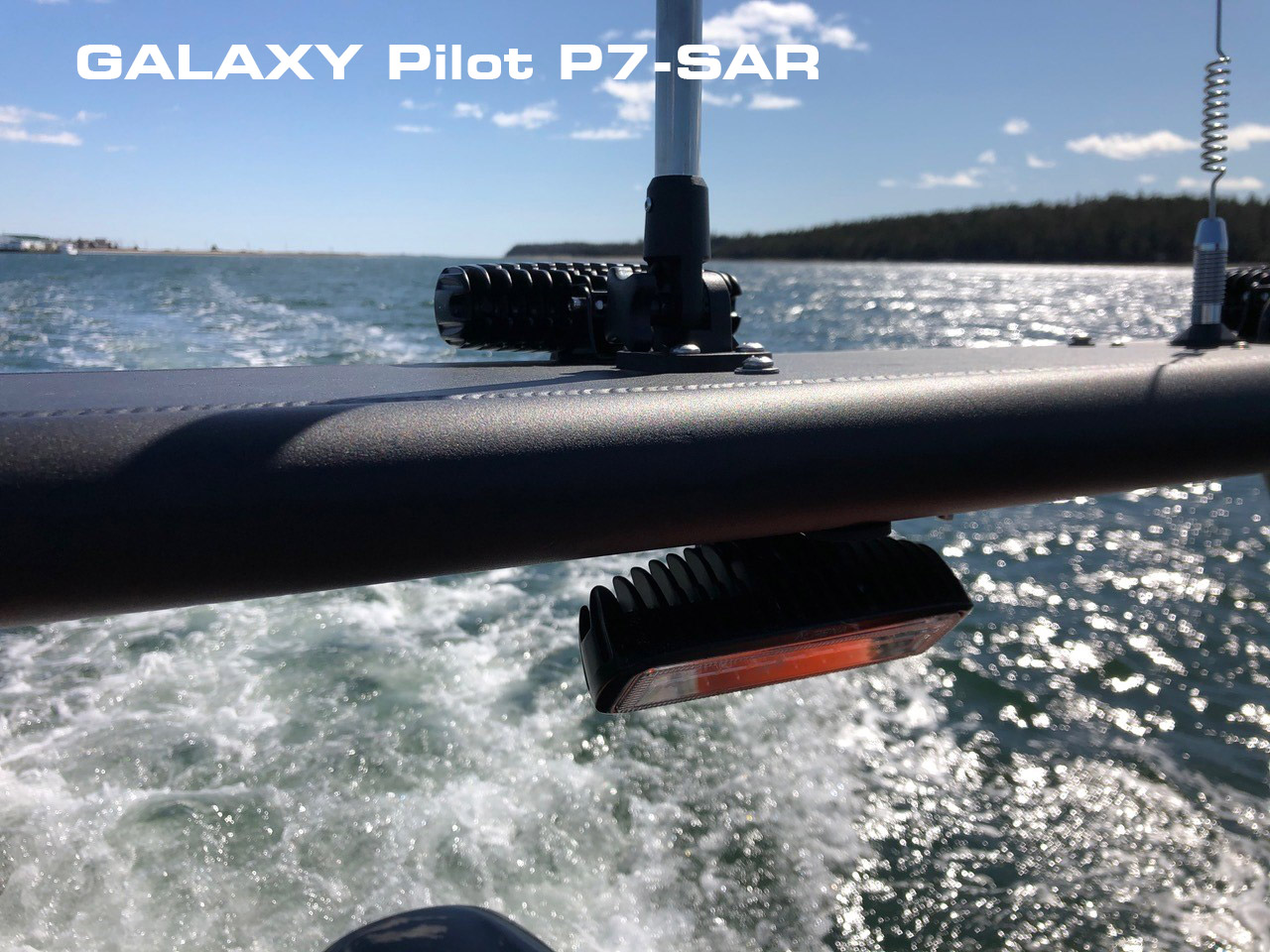

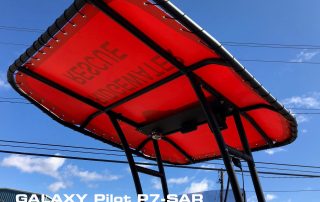

- T-top with wide equipment mounting plate
- Engine guard frame (single/double)
- Steering console tower with mounting plate

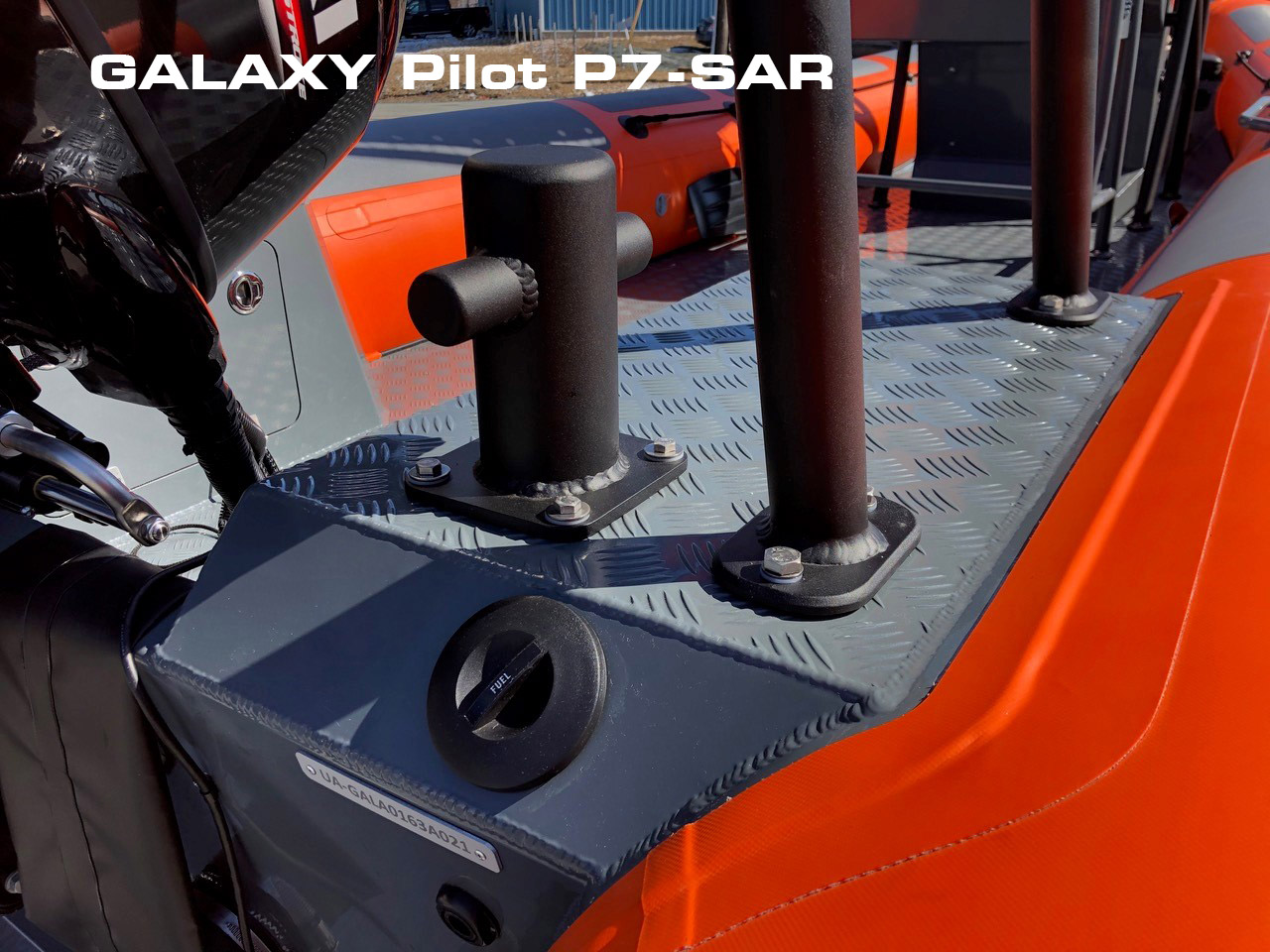

- Bow towing bollard

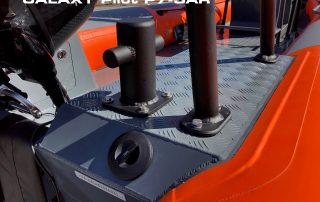

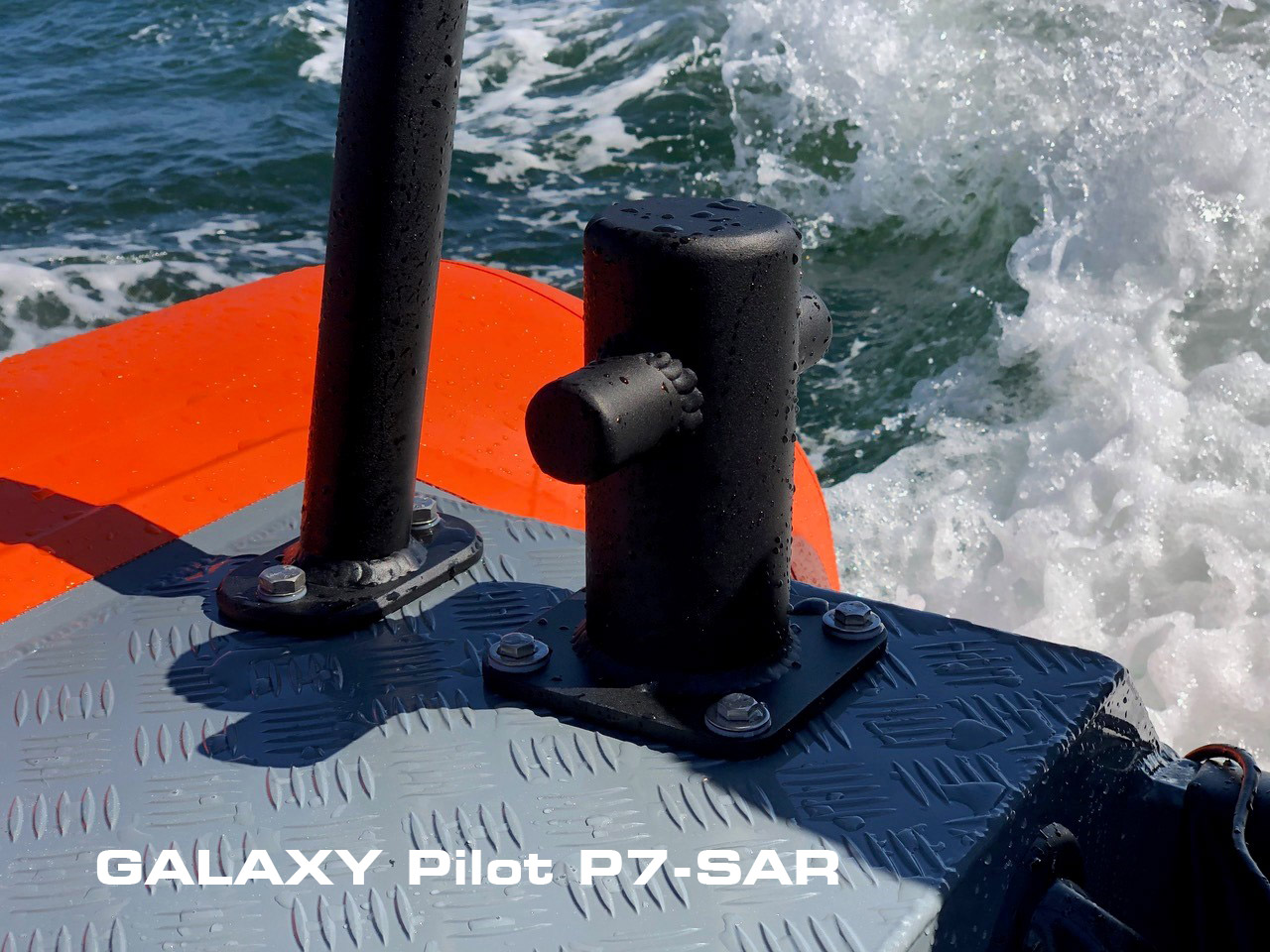

- Two rear towing bollards

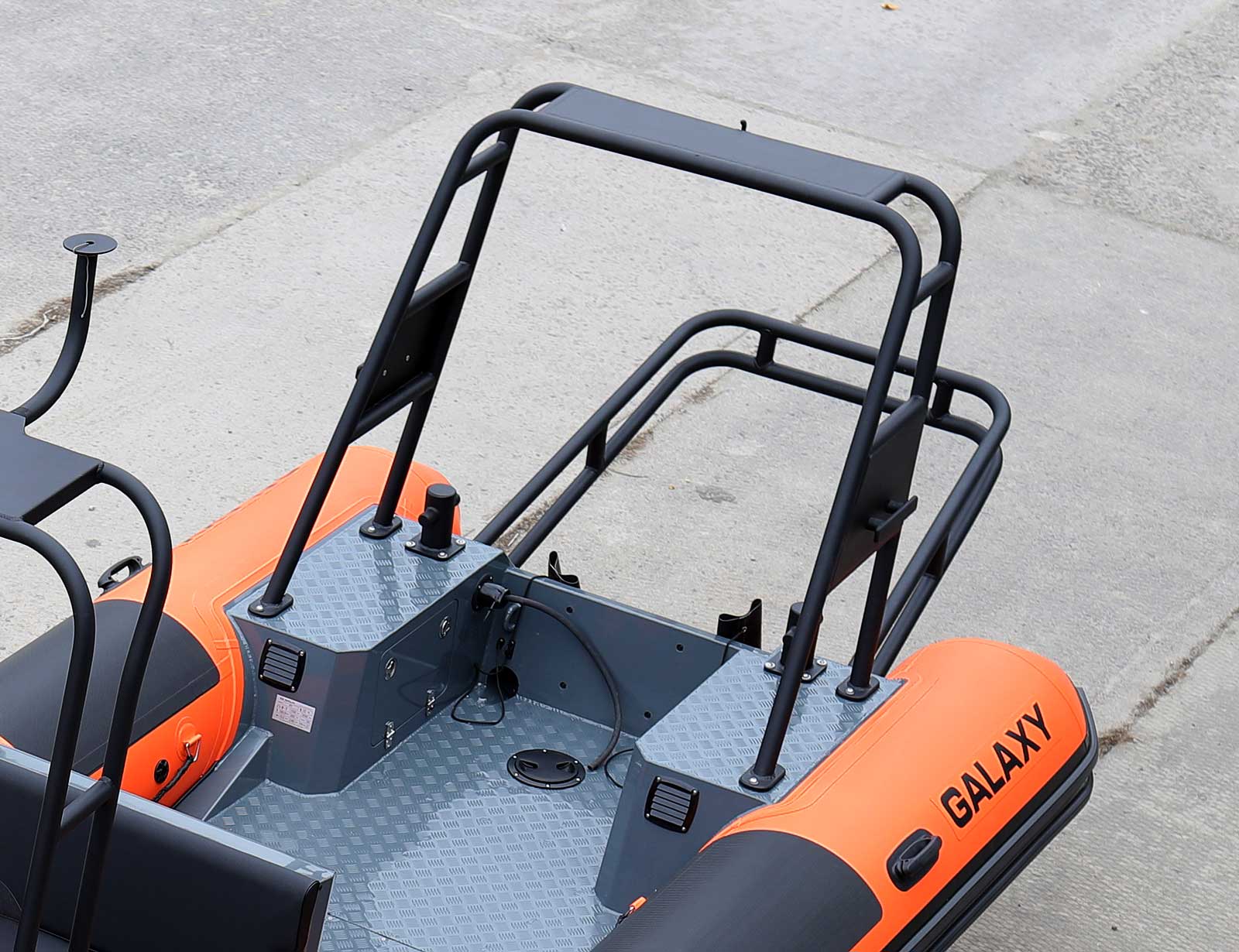

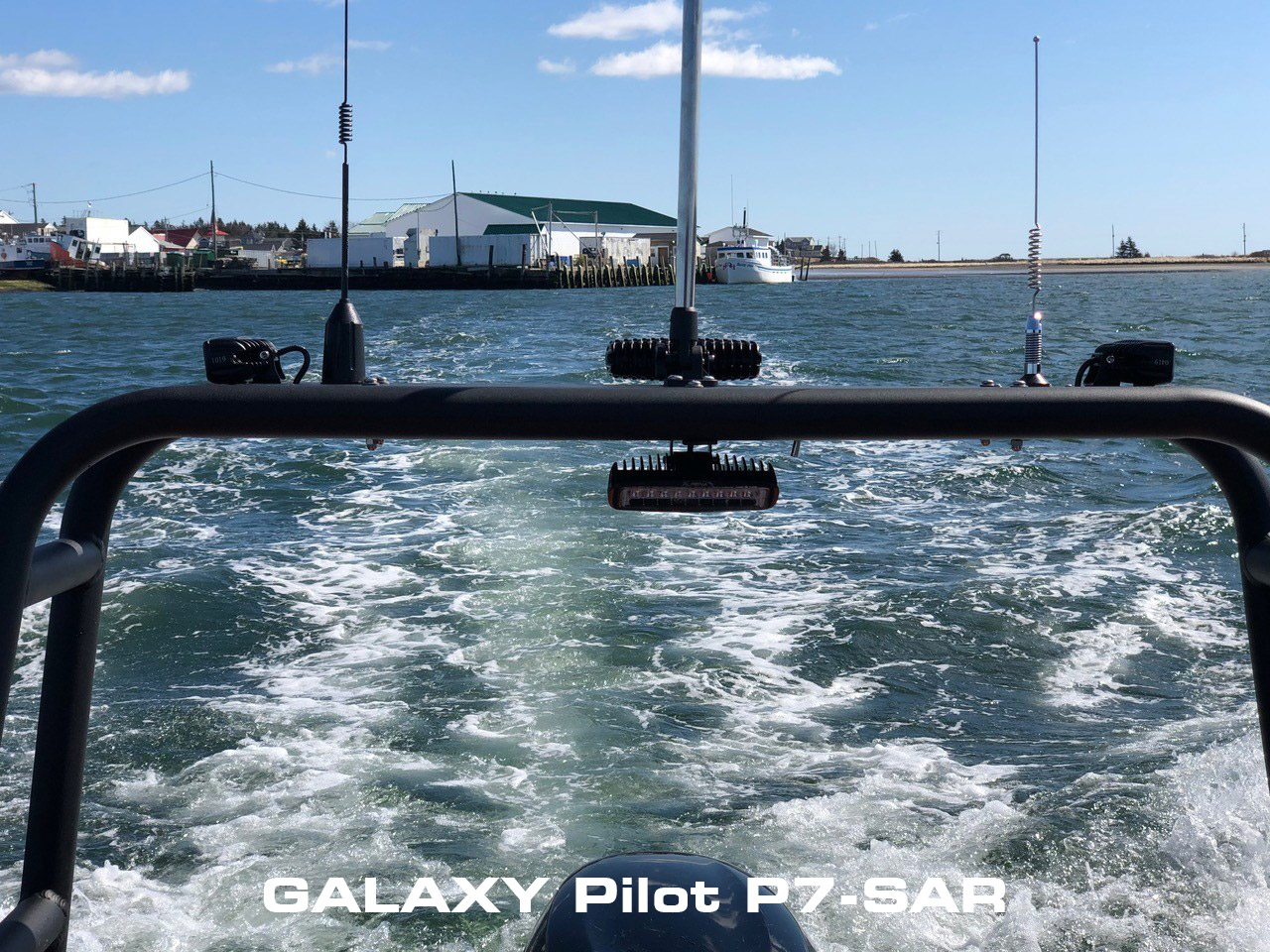

- T-form rear towing mast
- Rear towing arch (narrow/wide)

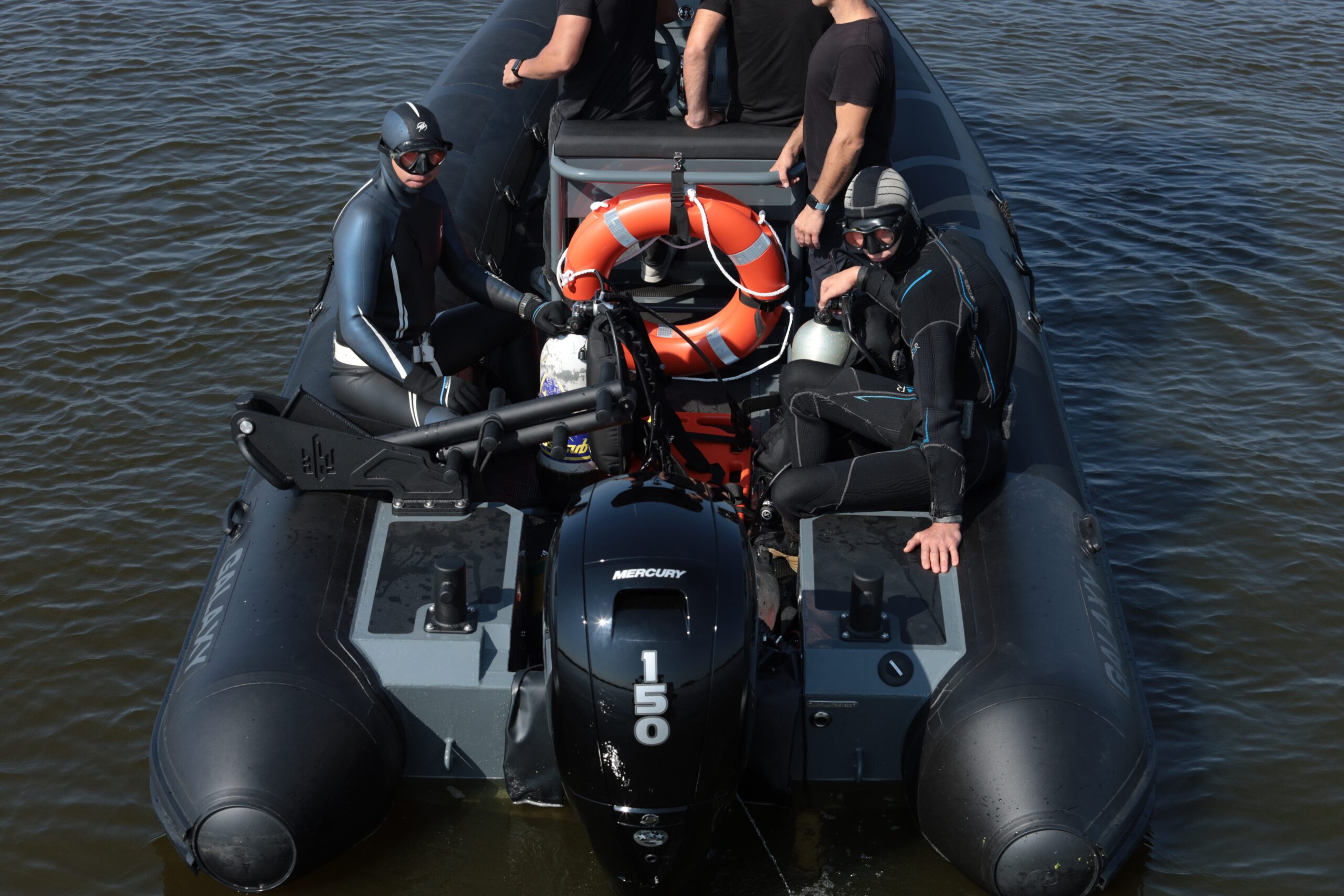

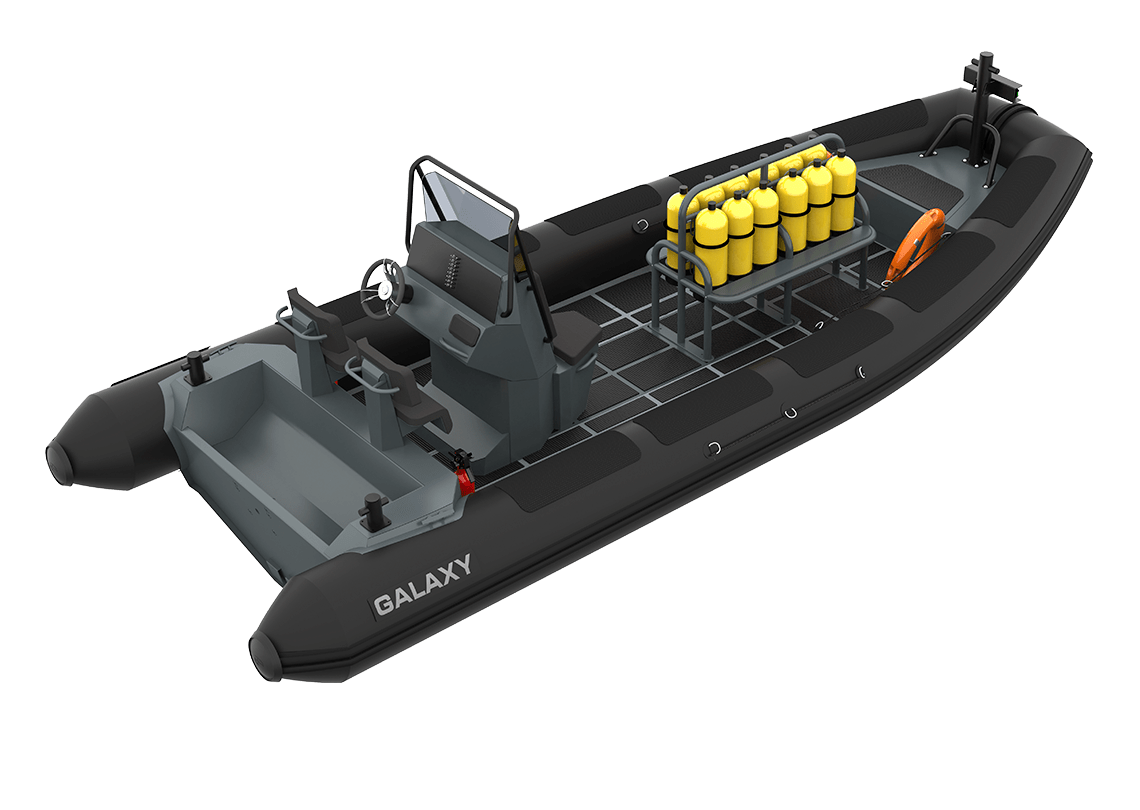

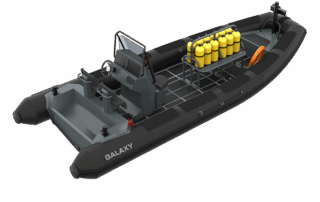

- Diving bottles storage rack for 4 / 6 / 12 / 24 bottles

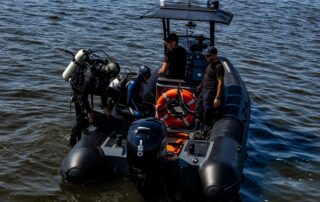

- Diving ladder with deck mounts
- Bow locker soft cushion
- Bow seat back cushion
- Overall cover
- Custom lettering on T-top
- Custom lettering on both sides of inflatable tube
Specifications
|
Models |
PILOT – P7 |
|
|---|---|---|
| Length overall | 695 cm / 22’10” | |
| Length inside | 510 cm / 16’9″ | |
| Width overall | 280 cm / 9’2″ | |
| Width inside | 160 cm / 5’3″ | |
| Tube Diameter | 60 cm / 23.6″ | |
| Bare boat weight | 800 kg / 1760 lbs | |
| Loading capacity | 1900 kg / 4180 lbs | |
| Passenger capacity | 13 | |
| Number of chambers | 5 | |
| Engine recommended | 200 HP | |
| Engine MAX | 300 HP | |
| Engine weight MAX | 400 kg / 880 lbs | |
| Engine shaft length | 30″ / 2 X 25″ | |
| Aluminum hull bottom thickness | 5 mm / 13/64″ | |
| Boat design category | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors

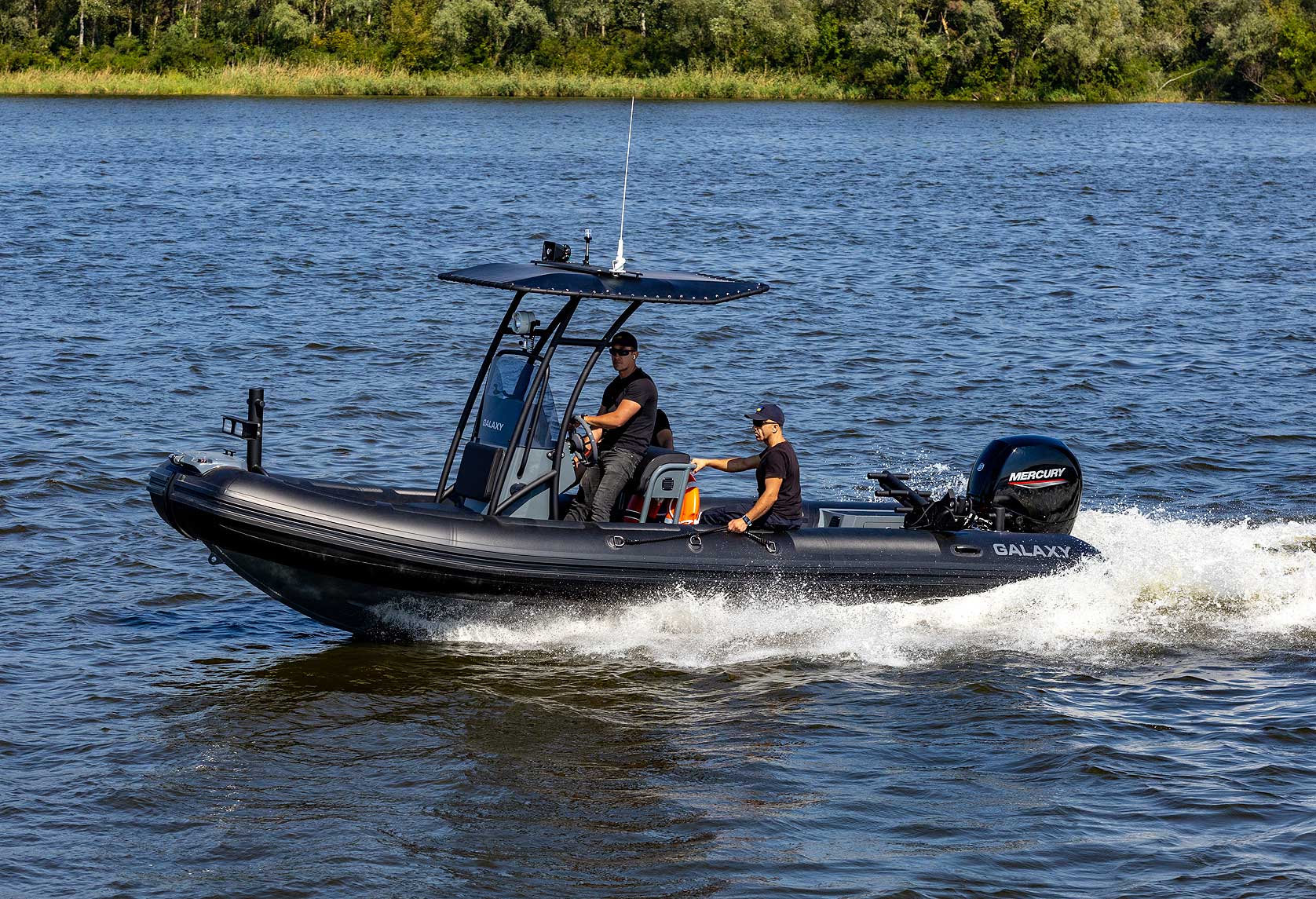

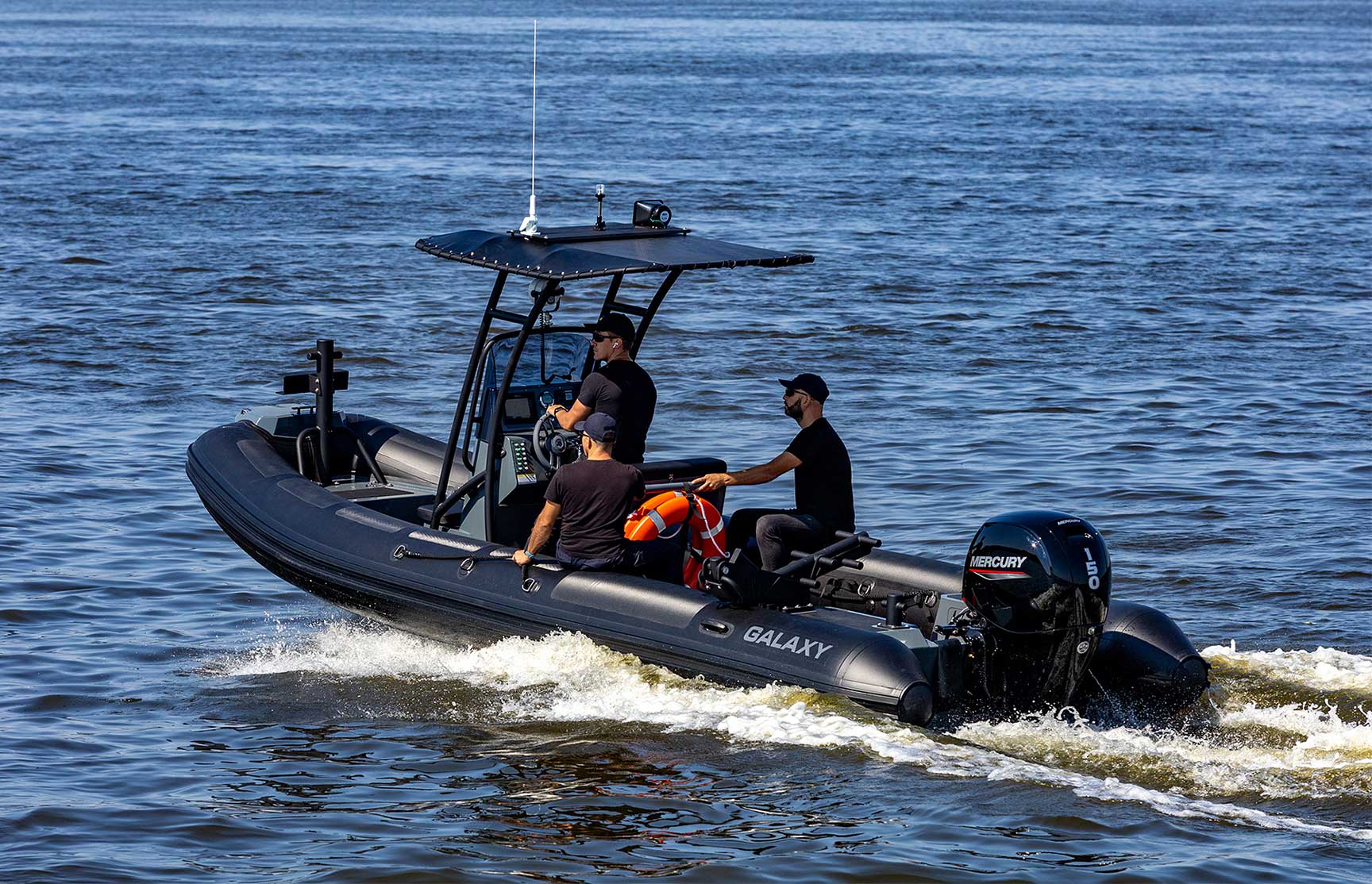

BLACK / GRAY
Black tube
with gray decor.
Dark gray hull.
(Default color)
LIGHT GRAY / DARK GRAY
Light gray tube
with dark gray décor.
Dark gray hull.
RED / BLACK
Red Hypalon tube
with black décor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
