GALAXY Pilot – P6
BEST FOR:
PILOT – P6
19’0″ long, 175HP max
GALAXY – Pilot P6 is one of our most popular and best selling models for professional use. Main application for these boats are:
• Rescue boats for Fire Departments and Rescue
• Law enforcement boat for inland and coastal waters
• General purpose work or commercial use boat.
The main and most attractive features and selling points of these models are:
• Impressive free deck space, allowing one person safely laying down along the deck for rescue and paramedics,
• A large number of different consoles, seats and boat equipment to customize the cockpit arrangement and match your needs exactly,

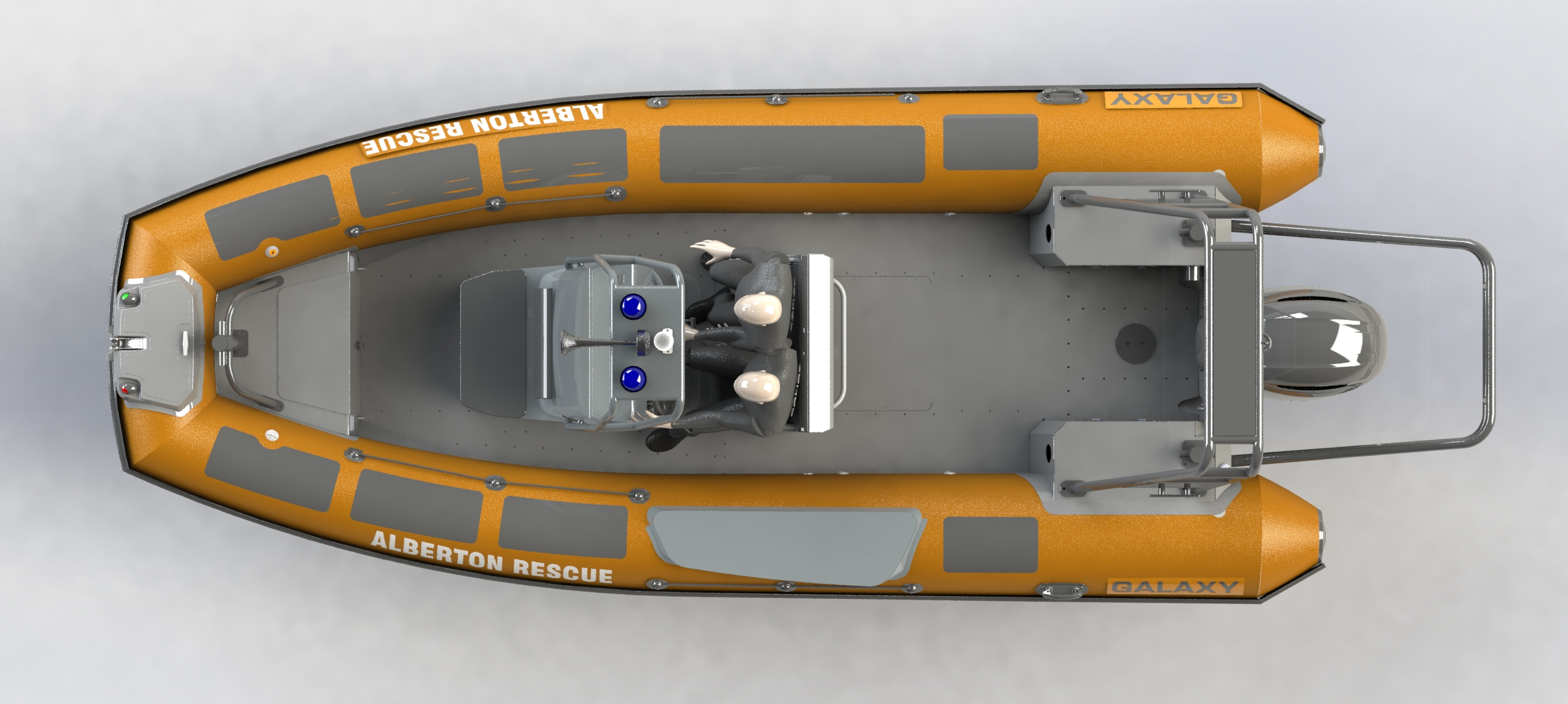

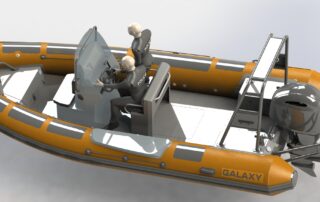

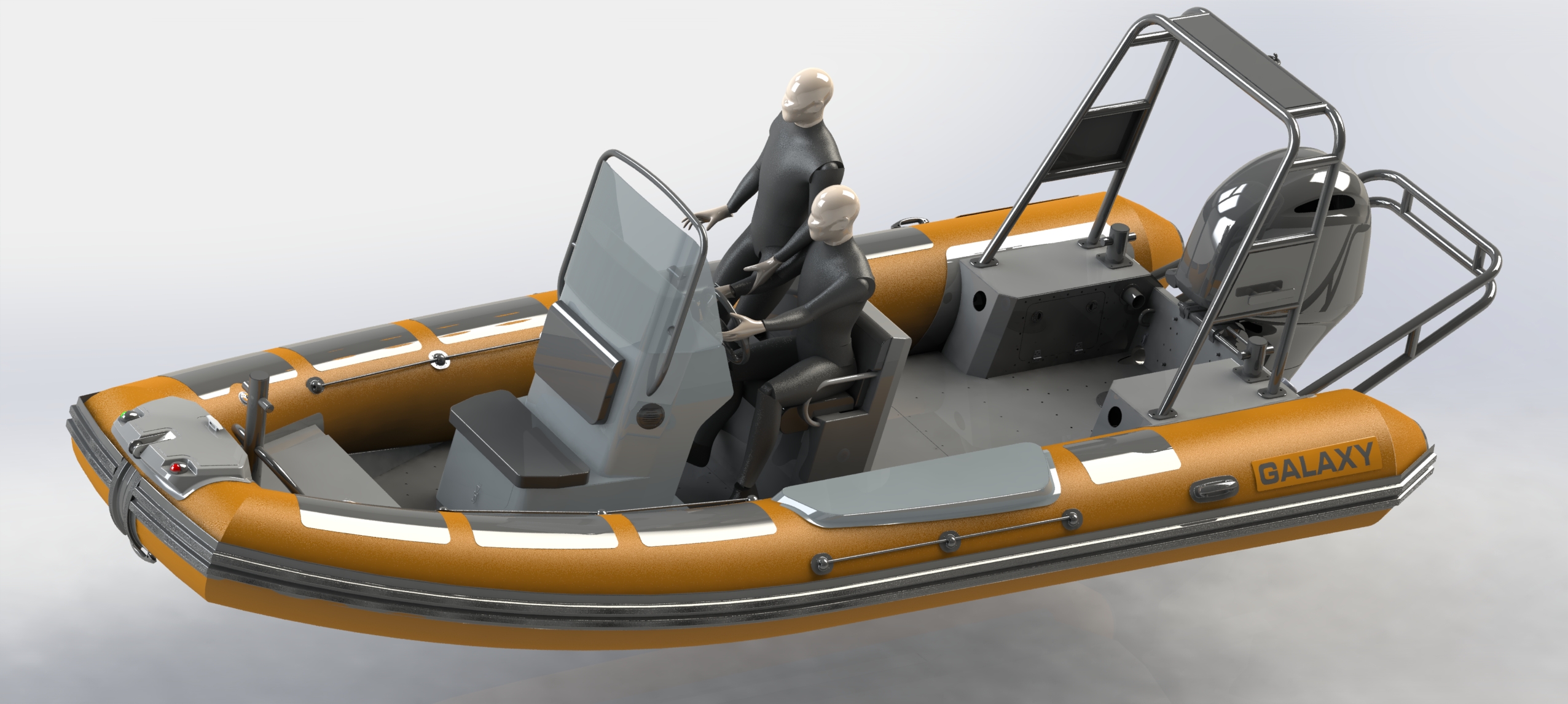

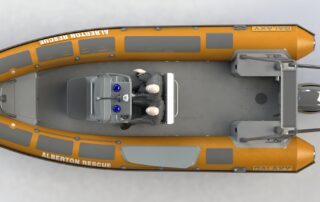

• Outstanding service with 3D CAD modelling for each single customer to visualize the boat you need with all features and equipment,
• High level of naval engineering and European production quality with highly optimized weight and performance
• Very short lead time from the project to finally delivered boat.
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
IMPORTANT MESSAGE TO ALL GALAXY CUSTOMERS!
We are happy to provide a unique and helpful service to each GALAXY customer: TO MAKE YOU SURE THAT THE BOAT YOU WANT TO ORDER IS EXACTLY WHAT YOU NEED, WE CREATE A 3-D VIZUALIZATION FOR EVERY SINGLE BOAT WITH ALL OPTIONS CHOOSEN FROM A HUGE VARIERY OF THEM , AVAILABLE FROM GALAXY! CONTACT US AND ASK FOR IT!
5 reasons to choose GALAXY
TRUE PRO GRADE DESIGN
GALAXY is TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.
FAST PRODUCTION & DELIVERY
We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!
100% CUSTOMIZED FOR EVERY BOAT
We have a number of base boats with huge amount of optional equipment to choose from.
VARIETY OF DECK EQUIPMENT
GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!
3-D VISUALIZATION FOR EVERY ORDER

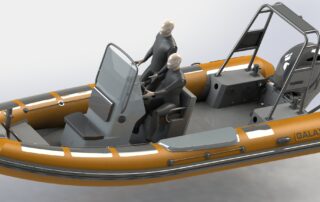

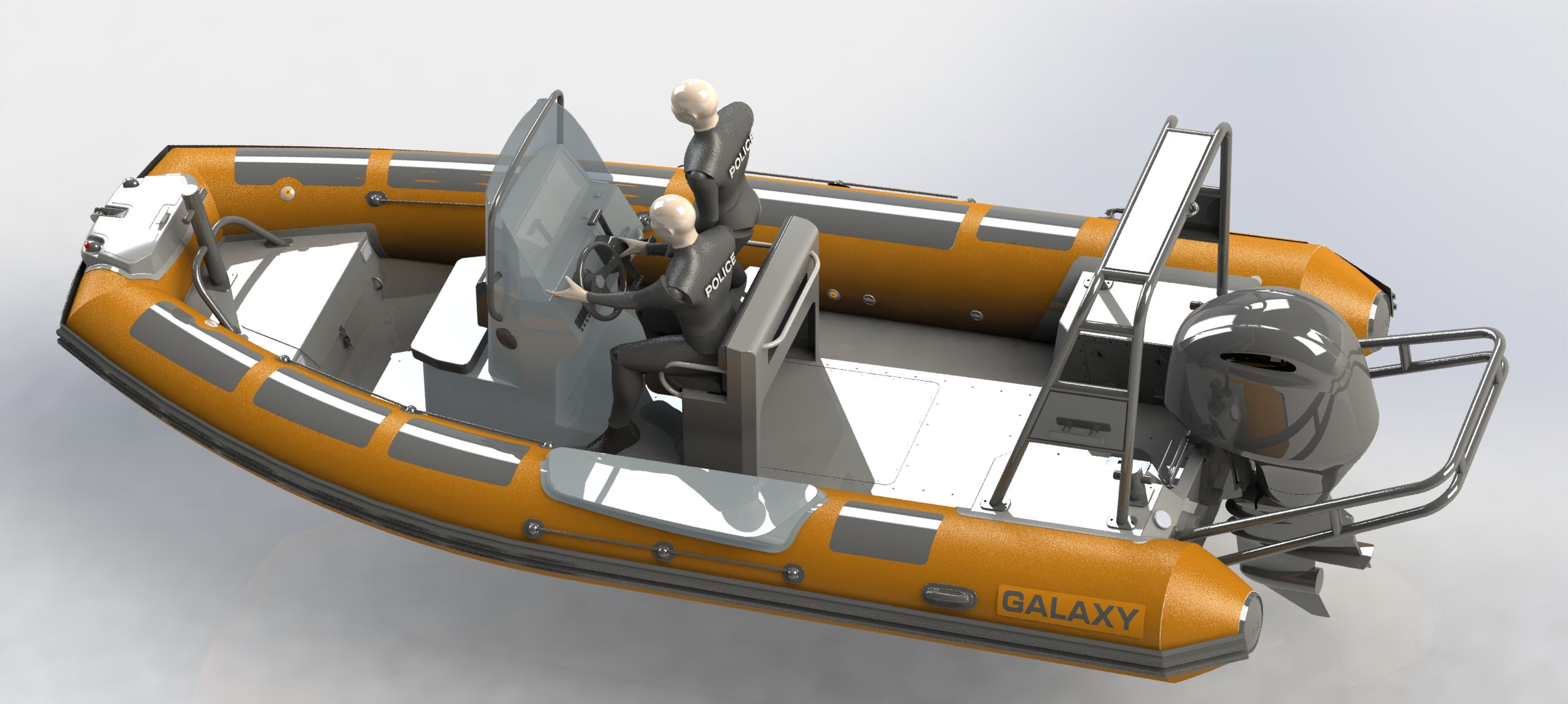

We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!
VIDEO
GALLERY
Features
STANDARD EQUIPMENT:
- Aluminum PRO hull with welded keel guard, coated
- Embossed antiskid QUINTET PRO decking
- GALA-TABS performance transom extensions
- Overpressure valves
- Set of foot pump, 2 paddles and repair/service kit
INFLATABLE TUBE OPTIONS:
- PVC inflatable tube with rub rail, protection pads, lifeline, handles (Default)
- HYPALON inflatable tube with rub rail, protection pads, lifeline, handles
- TPU Polyurethane tube with rub rail, protection pads, lifeline, handles
STEERING CONSOLES:
- Steering console C-07P with windshield and railing (Default)
- Steering console C-06P without front seat
- Steering console C-25 with front seat
SEATING:
- Driver’s bolster seat S-09 (Default)
- Driver’s bolster seat S-20
- Driver’s seat S-25
- Driver’s seat S-03PM
- Driver’s folding seat S-05P
- Driver’s jockey seats S-10
- Driver’s jockey seats S-10 without front handrail
- Bolster seat S12 , deck mount, with back rest
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
OPTIONAL EQUIPMENT:
- Steering wheel GALA Deluxe GRAY
- Hydraulic steering system
- Electric PRO system with 2 pole battery switches
- Fuel system with built in tank (P6: 110 lit., send, deck fill, tubing, wiring
- Fuel gauge
- Bow step plate with anchor roller
- Two aluminum side panels with QUINTET decking and handrails
- Side board safety railings
- T-top with wide equipment mounting plate
- Engine guard frame
- Steering console tower with mounting plate
- Bow towing bollard with tube reinforcement
- Two rear towing bollards
- Rear towing arch, narrow
- Rear towing arch, wide
- Diving bottles storage rack for 4 bottles
- Diving bottles storage rack for 6 bottles
- Diving ladder with deck mounts
- Bow locker soft cushion
- Bow seat back cushion
- Overall boat cover
- Custom lettering on T-top
- Custom lettering on both sides of inflatable tube
Specifications
|
Models |
PILOT – P6 |
|
|---|---|---|
| Length overall | 580 cm / 19’0″ | |
| Length inside | 480 cm / 15’9″ | |
| Width overall | 250 cm / 8’2″ | |
| Width inside | 130 cm / 4’3″ | |
| Tube Diameter | 60 cm / 24″ | |
| Bare boat weight | 580 kg / 1276 lbs | |
| Loading capacity | 1400 kg / 3080 lbs | |
| Passenger capacity | 10 | |
| Number of chambers | 5 | |
| Engine recommended | 150 HP | |
| Engine MAX | 175 HP | |
| Engine weight MAX | 300 kg / 660 lbs | |
| Engine shaft length | 25″ | |
| Aluminum hull bottom thickness | 5 mm / 13/64″ | |
| Boat design category | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
BLACK / GRAY
Black tube
with gray decor.
Dark gray hull.
HYPALON, TPU or PVC
(default color)
RED / GRAY
Red tube
with black decor.
Dark gray hull.
HYPALON or PVC only
ORANGE / GRAY
Orange tube
with black decor.
Dark gray hull.
TPU only.
HYPALON by
custom order.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
